Triton AS2000XT User Manual

22

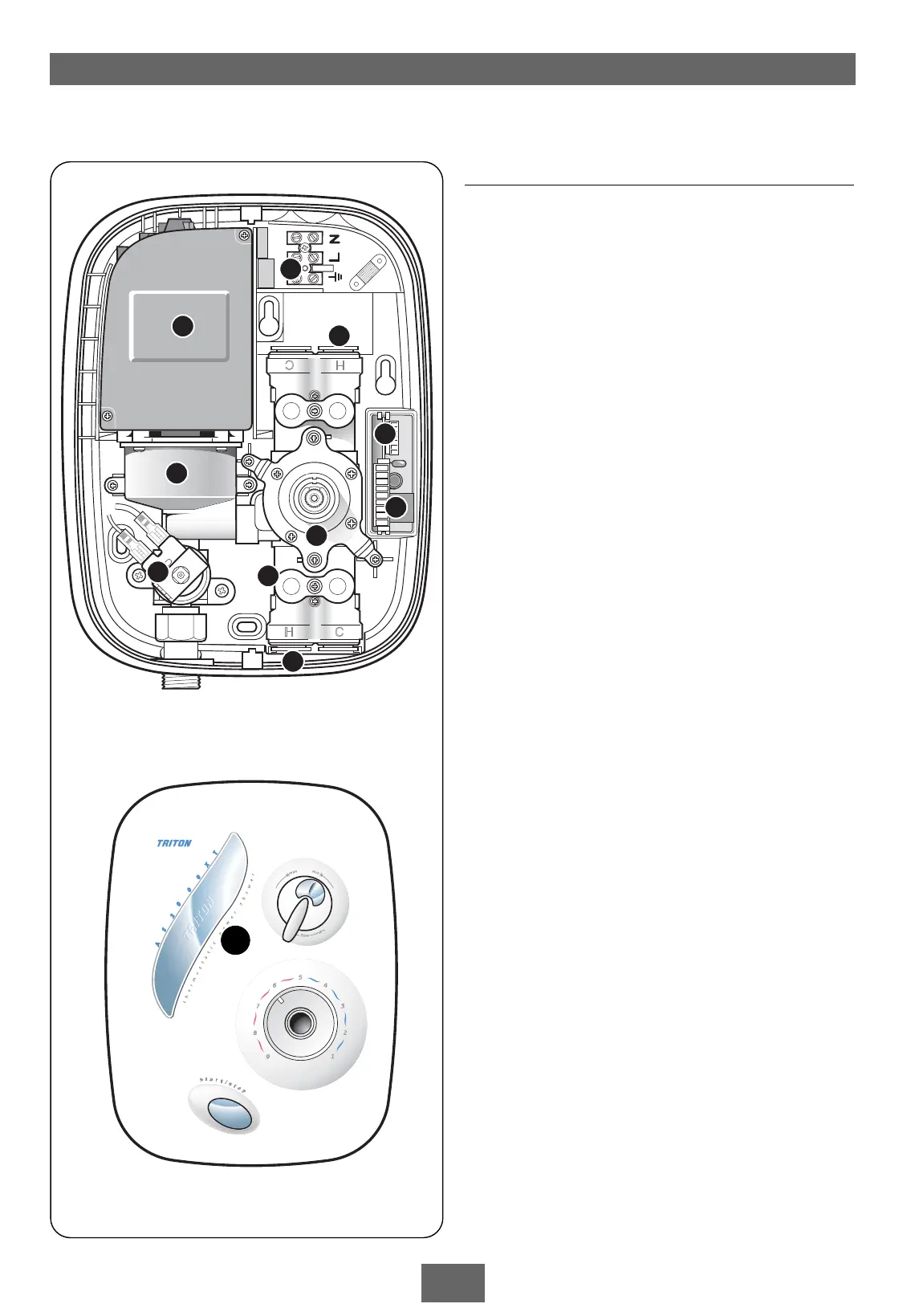

Spares
Ref. Description Part No.
1 Terminal block 22001320
2 Motor cover 83305300
3 Pump & motor assembly 83305290
4 Link pin 22009060
5 PCB unit 7072177
6 Temperature valve 83305270
7 Solenoid assembly 82300430
8 Filter (pair) 83305330
- Pipe inlet elbow
c/w filters & check valves 83305320
9 Plastic inlet elbow plug x1 7052140
- Maximum temperature stop 7052186
- Pipe removing tool 7052144
- Pipe trim 7052146
- Wire kit 83305340
10 Cover c/w knob & potentiometer
P09430600
- Rear entry elbow 22008180
- Temperature knob assembly P09431000
- Temperature control cover trim
7053288
SPARE PARTS
DISCONNECT FROMDISCONNECT FROM
ELECTRICITY SUPPLYELECTRICITY SUPPLY
BEFORE REMOVINGBEFORE REMOVING
THIS COVERTHIS COVER
DISCONNECT FROM
ELECTRICITY SUPPLY
BEFORE REMOVING
THIS COVER
6
4
8
7
3
2
5
9
1
9
10

Triton AS2000XT Specifications

General

Type	Electric Shower
Finish	White
Material	Plastic
Maximum Pressure	10 bar
Mounting	Wall Mounted
Connection Size	15mm
Activation Method	Push Button
Power Source	Electric
Water Entry Points	Top, Bottom, Back (Right Hand Side)
Cable Entry Points	Top, Bottom, Back (Right Hand Side)
