FITTING THE RISER RAIL
Decide the position for the rail on the wall
within the shower area. Proceed as follows:

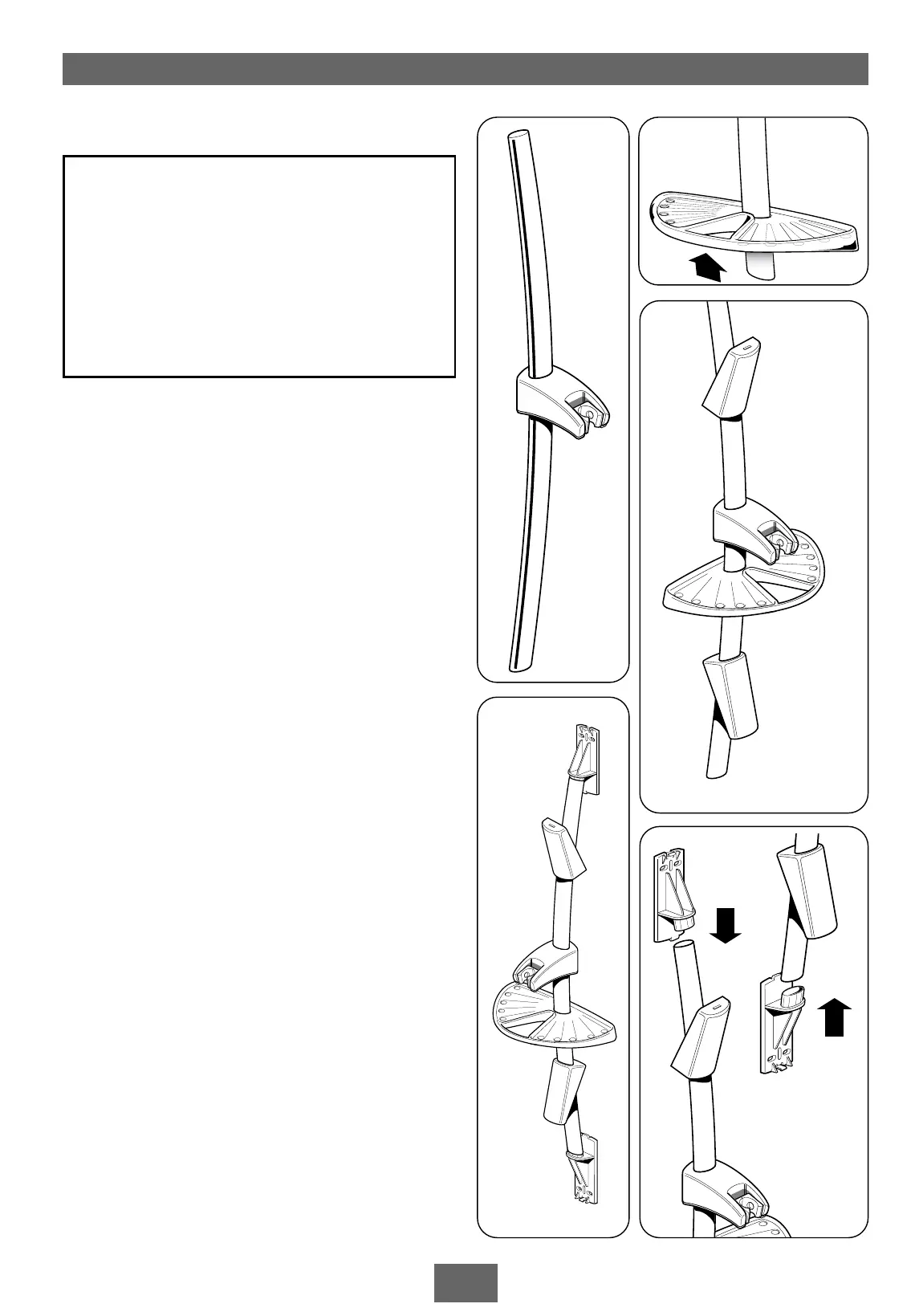

Fit the sprayhead holder onto the riser rail. The
correct orientation of the holder is when the
sprayhead holder is sloping DOWN (fig.27).
To fit the sprayhead holder onto the riser rail
unit, press and hold the button on the
underneath of the sprayhead holder to release
the locking mechanism, then slide onto the rail.
Slide the supplied soap dish onto the riser rail
below the sprayhead holder (fig.28).
Slide the top and bottom finishing trims onto
the riser rail (fig.29).
Push the two fixing brackets into the ends of the
riser rail (fig.30).
Offer the rail assembly to the wall (fig.31).
Using the brackets as templates, mark two upper
holes and two lower holes. Note there are four
provisions for screws per bracket – select the two
most suitable for your requirements. Make sure
the rail is aligned vertically.
Drill and plug the wall. (The wallplugs provided
are suitable for most brick walls – use an
appropriate masonry drill, but if the wall is
plasterboard or a soft building block, use special
wallplugs and an appropriate drill bit).
Screw to the wall with the fixing screws
supplied.
Slide the finishing trims onto the brackets. Make
sure the lug on each rail bracket end engages
into the slot on the fatter end of each trim
before push fitting the thinner ends in place
(fig.32).
WARNING!
Check there are no hidden cables or
pipes before drilling holes for wall
plugs. Use great care when using
power tools near water. The use of a
residual current device (RCD) is
recommended.
