mini exposed sequential thermostatic mixer shower
12
ADJUSTING THE MAXIMUM
TEMPERATURE SETTING
The mixed water temperature can be adjusted
from cold through to a top limit (which
can be set during installation – factory set
at approximately 38°C) with full anti-scald
protection throughout the range.
To adjust the maximum temperature setting,
remove the temperature control knob.
Allow the water to run until the temperature has
stabilised, adjust the temperature control spindle by
hand (g.15).
When the showering temperature is satisfactory
turn off the shower.
Ret the control knob, making sure the
maximum temperature stop pin is as close to the
at edge of the maximum temperature stop as
possible (g.16).
When you are satised with the temperature turn
the shower off.
OPERATING THE SHOWER
To start the shower, turn the on/off temperature
control anti-clockwise (g.17).
To adjust the showering temperature rotate the
temperature control clockwise for cooler and
anti-clockwise for hotter.
CAUTION: Exposed metal surfaces may
become hot during use.
Maintenance of the mixer shower is required to
give continued performance after installation and
that it continues to provide scald prevention.
NOTE: A thermostatic mixer shower in
need of maintenance can be undetectable
in normal use and only becomes apparent
when a disruption occurs in the hot
or cold water supply temperatures or
pressures.

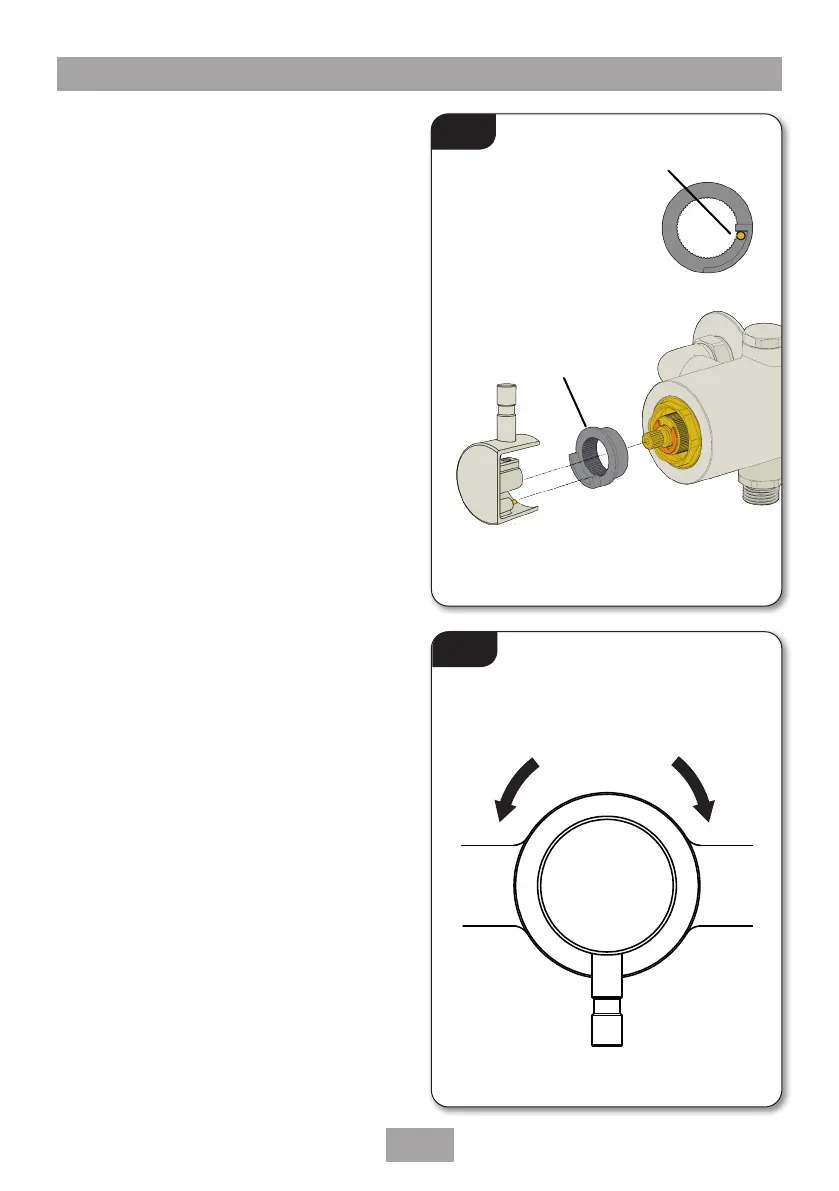

Fig.16
ON/Hotter OFF/Cooler
Fig.17
Maximum
temperature stop
Maximum
temperature stop
position
