Thermostatic mixer shower
9

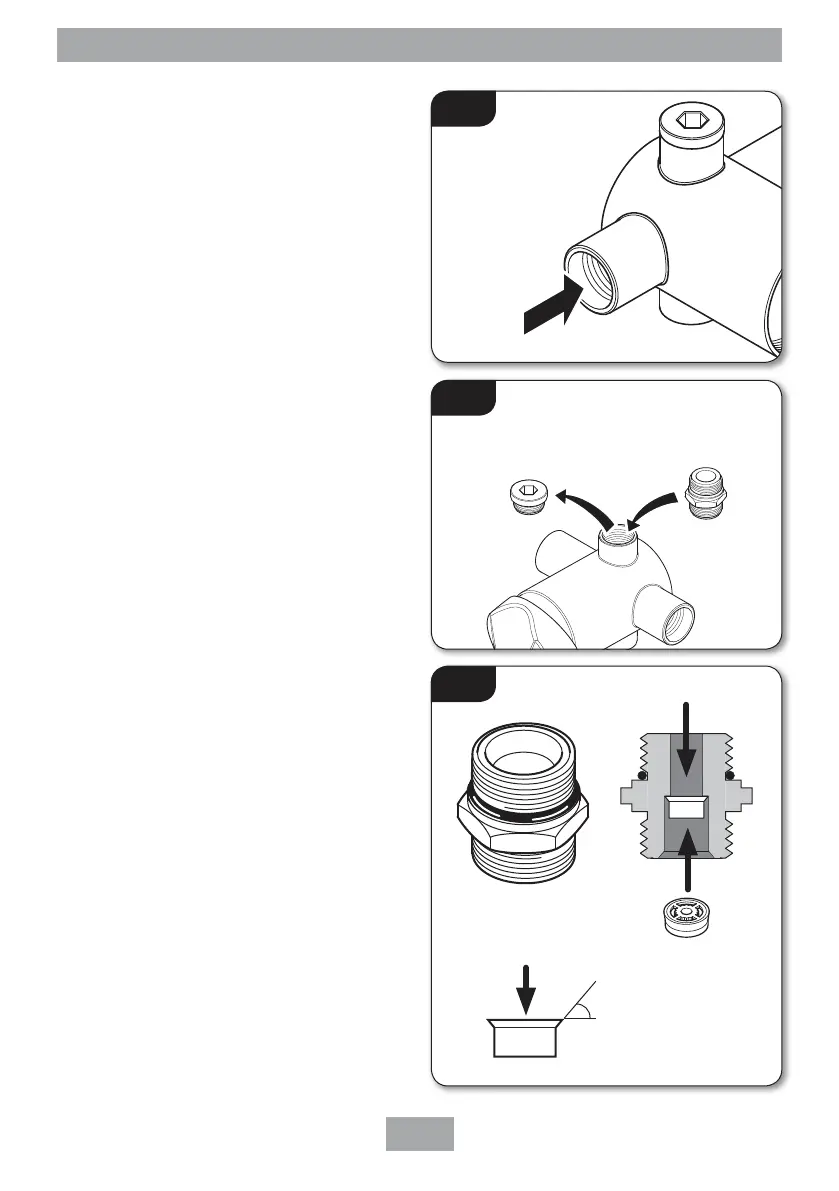

Connect the hot water supply to the inlet marked
HOT, ‘H’ or red/orange label and connect the
cold water supply to the inlet marked COLD, ‘C’
or blue label (fig.12).
Tighten all compression fittings.
Tighten all the grub screws to secure the mixer to
mounting plate.
Outlet adapter and plug
The outlet adapter and plug can be repositioned
dependant on the outlet required (top or
bottom). The adapter is suitable for a 15mm rigid
pipe connection (fig.13).
Flow regulation
A flow regulator is supplied for use with high-
pressure water systems and may be fitted with
any of the systems listed to reduce flow rate and
assist economy.
To fit the flow regulators
To fit the flow regulators (flexible hose
connection) unscrew the outlet adapter. Place
the flow regulator, correctly, into the rigid pipe
connection end; please note the flow regulator is
only designed to work in one direction (fig.14).
The flow regulator for 15mm rigid pipe must be
fitted into the showerhead.
ANTI-SCALD PROTECTION
It is important that the mixer valve is tested
regularly to prevent the risk of scalding and
guarantee user safety. This can be carried out as
follows: with the mixer blend temperature set
at 38°C isolate the cold water supply. The outlet
flow rate will reduce to a safe level.
LEAK TESTING
Direct the outlet of the mixer to waste. Open the
isolating valves to the shower and check for leaks.
Remedy any leaks found.
Flow regulator only
designed to work in
this direction
Outlet water ow
Angled top section
Blanking plug OUT
into bottom outlet
Outlet connector
IN to top outlet
Bottom of outlet
Fig.12
Fig.13
Fig.14
