T70si
Hook the backplate over the bottom screw and fit
the top fixing screw into position.
Do not fully tighten the screws at this stage, as
the fixing holes are elongated to allow for out of
square adjustment after the plumbing
connections have been completed.
PLUMBING CONNECTIONS
Plumbing to precede wiring.
WARNING: The outlet of the shower acts as a
vent and must not be connected to anything
other than the hose and sprayhead supplied.
DO NOT use jointing compounds on any pipe
fittings for the installation.
DO NOT use soldered fittings within the vicinity of
the shower unit.
Compression fittings MUST be used to connect to
the inlet of the shower.
NOTE: An additional stopvalve (complying with
Water Regulations) MUST be fitted in the mains
water supply to the shower as an independent
means of isolating the water in order to carry out
maintenance or servicing.
Important: Before completing the connection of
the water supply to the inlet of the shower, and in
compliance with Water Regulations, flush out the
pipework to remove all swarf and system debris.
This can be achieved by connecting a hose to the
pipework and turning on the mains water supply
long enough to clear the debris to waste.
Procedure: Turn off the water supply either at the
mains stopvalve or the isolating stopvalve.

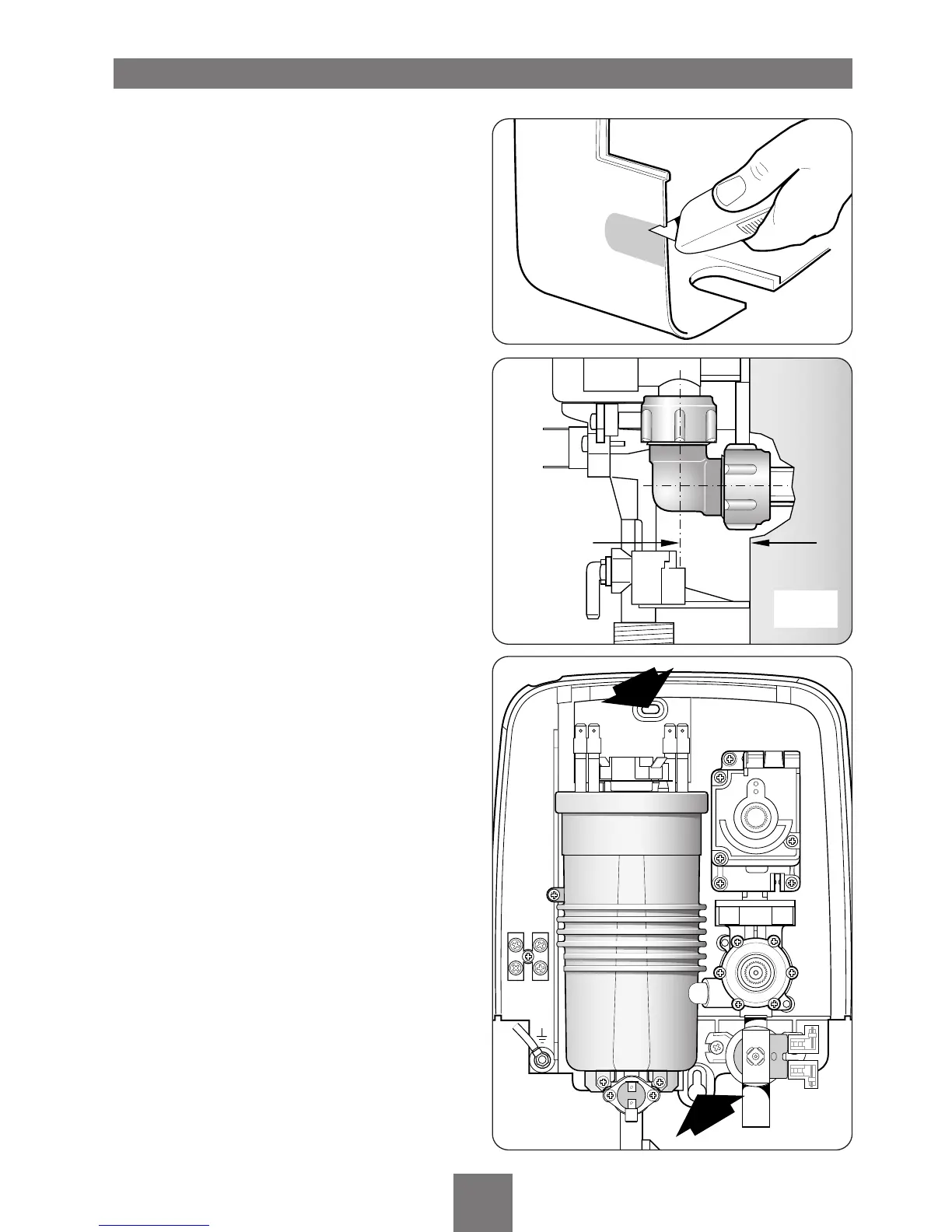

Connect the mains water supply to the inlet of
the shower via 15mm copper, stainless steel or
plastic pipe using a 15mm x 15mm compression
fitting. NOTE: The inlet fitting is designed to enter
a compression fitting only. DO NOT use push fit
connectors as full engagement cannot be
guaranteed. DO NOT use excessive force when
making these connections.
Ensure the backplate is square on the wall and
tighten the two retaining screws which hold it to
the wall.
Turn on the mains water supply and check for
leaks in the pipework connection to the shower.
NOTE: At this stage no water can flow through
the unit.
