T70si

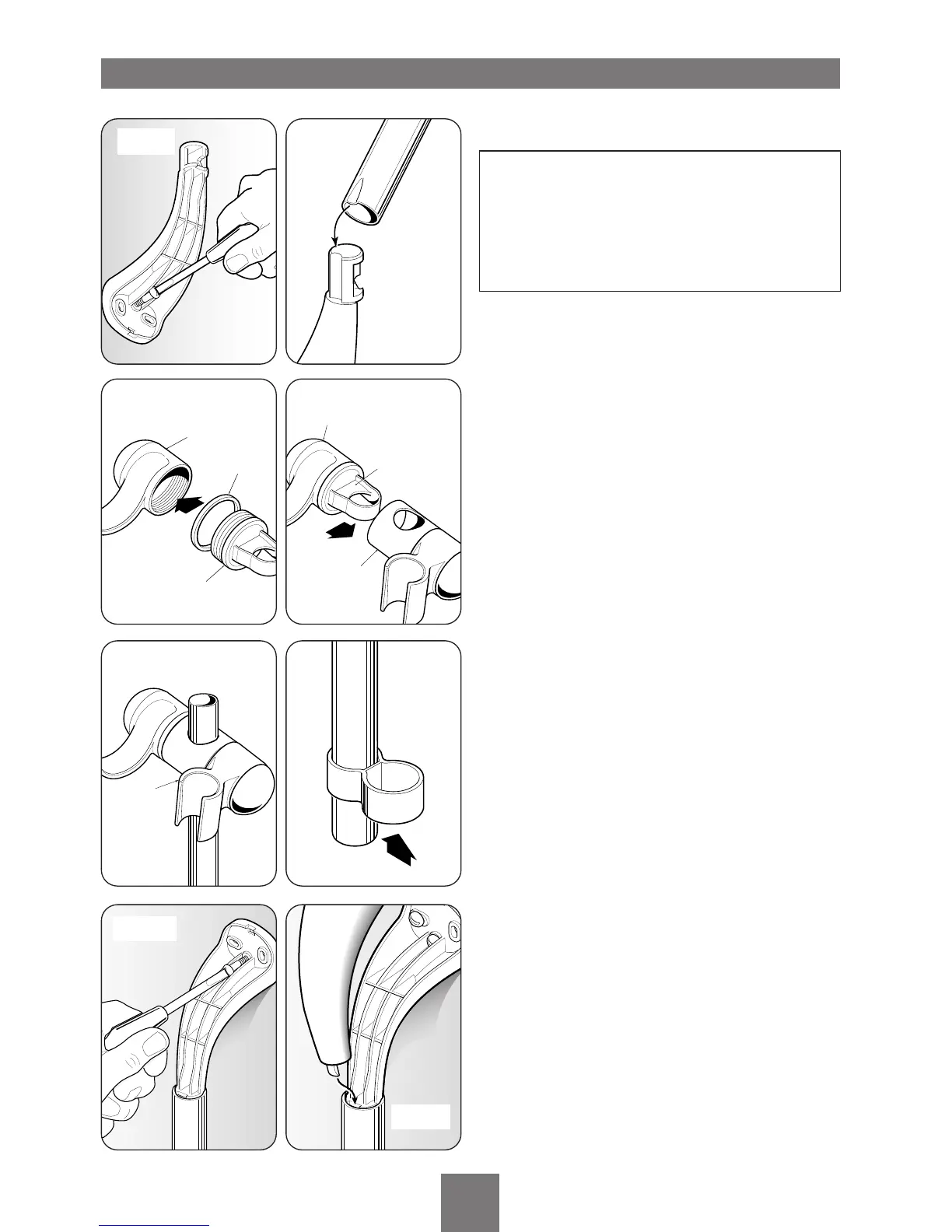

FITTING THE RISER RAIL
Decide the position for the rail on the wall within
the shower area. Proceed as follows:
A Offer one of the two brackets to the wall for
the lower position only. Note there are three holes
in the brackets but two screws will usually be
sufficient. However, the centre hole must be used
so mark this and either of the other two. Drill and
plug the wall. (The wallplugs provided are suitable
for most brick walls – use an appropriate masonry
drill, but if the wall is plasterboard or a soft
building block, you must use special wallplugs and
an appropriate drill obtainable from most
hardware stores).
Replace the bracket to the wall and secure to the
wall with the screws supplied (fig.17). Locate the
rail onto this lower bracket ensuring the rail
engages fully on the bracket. Ensure the indent in
the riser rail engages into the cut-out on the
bracket end (fig.18).
B Locate the second bracket on top of the rail.
Again mark the centre hole plus one of the other
two holes. Ensure the rail is vertical. Remove the
bracket and rail. Drill and plug the wall.
C With the saddle, spacer and lever parts to
hand, screw the saddle two or three turns into the
lever (fig.19). Place the saddle and lever into the
slider/holder assembly (fig.20) so that the holes
align, then slide onto the rail (fig.21). Tighten to
the rail by turning the lever. When tight, the lever
should be facing forwards and not pointing to the
wall. If not, slacken off and remove from the rail.
Rotate the saddle and lever 180° within the
slider/holder assembly then replace onto the rail
and tighten. Ensure the tapered thin end of the
spray head holder is in the uppermost position.
D Slide the hose retainer – smaller diameter onto
the rail (fig.22) below the holder.
E Place the rail onto the installed lower bracket.
