Note: The control knobs are an integral part of
the cover – DO NOT attempt to remove them.
IMPORTANT: The unit must be mounted on
a flat surface which covers the full width and
length of the backplate. It is important that
the wall surface is flat otherwise difficulty
may be encountered when fitting the cover
and subsequent operation of the unit may be
impaired.

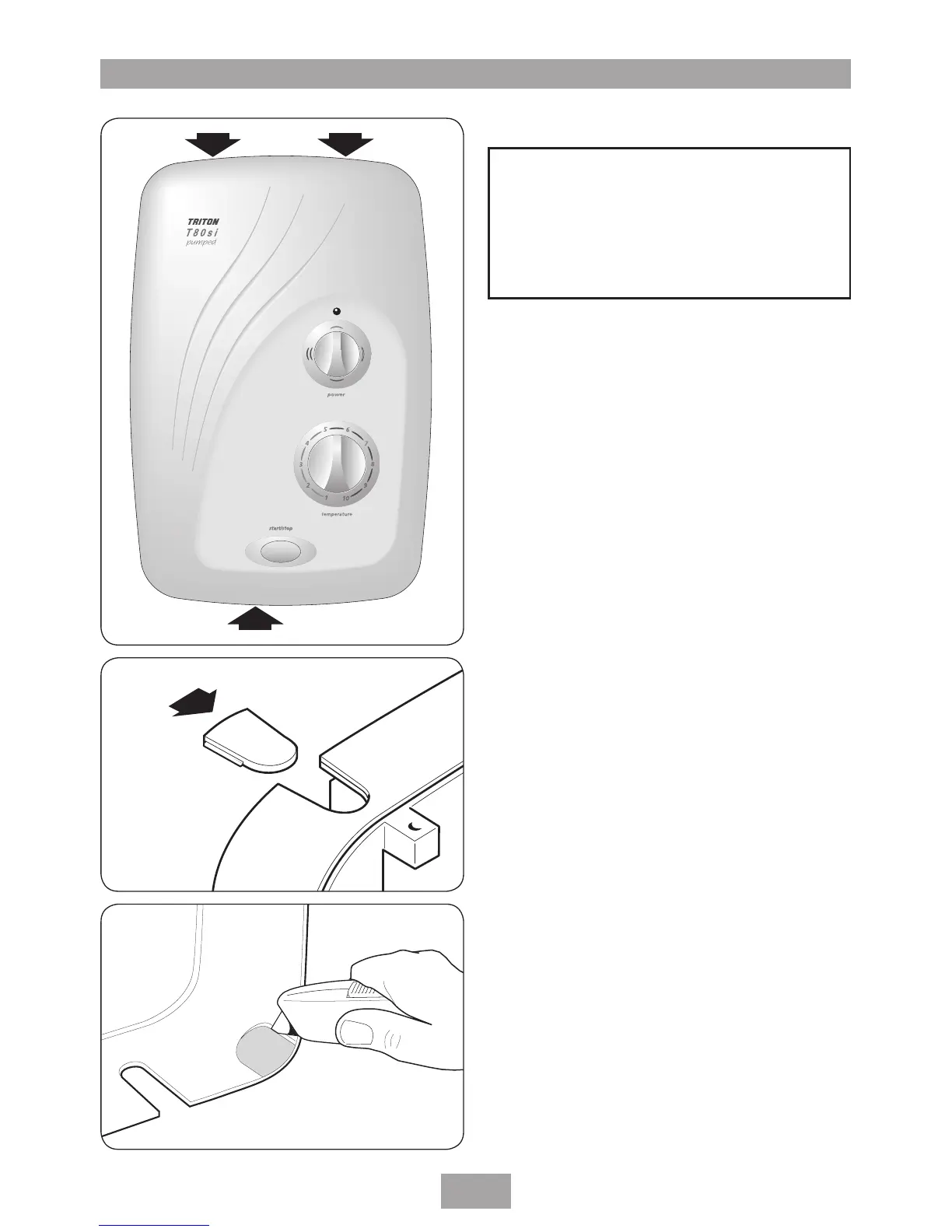

Unscrew the two top and one bottom retaining
screws (fig.7) and lift the cover from the
backplate.
Note: Deviations from the designated entry
points will invalidate product approvals.
If a top entry is required for the water pipe,
remove the top cut-out in the backplate (fig.8)
and rotate the inlet elbow so that it points
upward. If a bottom entry is required for the cold
water pipe, then a hole will need to be cut out of
the cover (fig.9) and the inlet elbow rotated to
face downward.
If entry is required from the back, rotate the inlet
elbow upwards and fit the supplied elbow to
connect to the pipe (fig.10).
Make sure the hole in which the pipe enters
through the wall is filled in completely in order to
stop any possible ingress of water into the cavity
area.
After choosing the site for the shower, use the
backplate as a template and mark the three fixing
holes (fig.11).
Drill and plug the wall to suit the fixing screws
supplied. (The wall plugs provided are suitable
for most brick walls – use an appropriate masonry
drill, but if the wall is plasterboard or a soft building
block, you must use suitable wall plugs and an
appropriate drill bit).
Fig.7
Fig.9
Fig.8
Fitting the shower to the wall
