Trance 2nd generation electric shower
6
>POM-GF30<
P12721002A
INLET
Fig.1
Fig.2

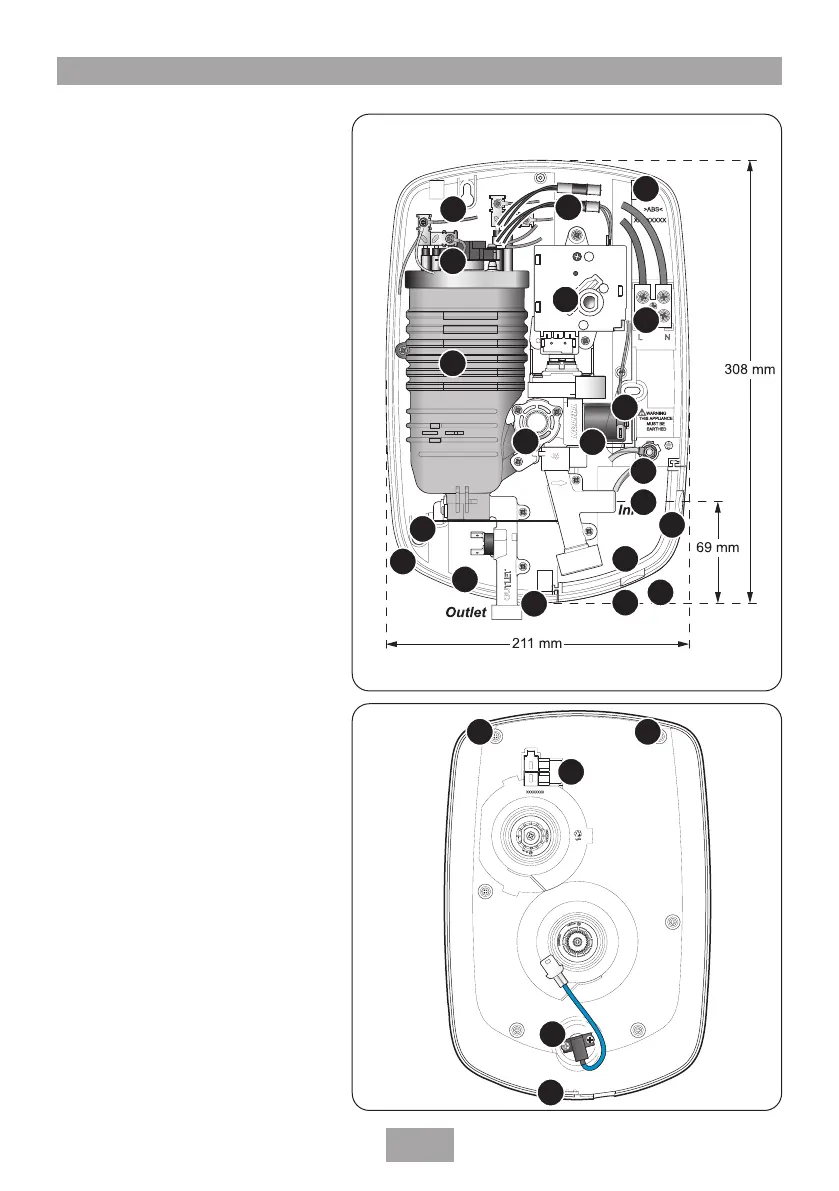

MAIN COMPONENTS
Inside unit (fig.1)
1. Top cable entry
2. Bottom pipe entry
3. Rear pipe entry area
4. Side pipe entry area
5. Rear cable entry area
6. Wall screw fixing
7. Terminal block
8. Power selector
9. Stabilising valve
10. Solenoid valve
11. Guide pockets
12. Can and element assembly
13. Thermal cut-out (main)
14. Earth connection
15. Pressure relief device
16. Outlet temperature regulator
17. Neons
18. Trimplate
Inside cover (fig.2)
19. Cover tags
20. Neon bracket
21. Start/Stop switch
NOTE: Not all wiring shown for reasons of clarity
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
6
6
19
19
21
6
