pressure relief device (PRD) is designed into the
shower unit which complies with European
standards. The PRD provides a level of appliance
protection should an excessive build up of
pressure occur within the shower
.
Do not operate the shower with a damaged or
kinked shower hose, or a blocked shower head
which can cause the PRD to operate.
hen commissioning, the shower head must be
removed from the exible hose, while at the
same time the temperature control must be at
the minimum ow position. Failure to follow this
procedure may also cause the PRD to operate.
Make sure the shower is positioned over a bath
or shower tray because if the PRD operates, then
water will eject from the bottom of the unit.
Should this happen, turn off the electricity and
water supplies to the shower at the isolating
switch and stopvalve. Contact the Customer
Experience team for advice on replacing the PRD.
Shower unit
must not
be within
an area
1 metre
from base
Height of
shower head
and shower
to suit user's
requirement
Spillover
level
Soap dish
retaining ring
25 mm minimum
Shower unit can
be mounted either
side of riser rail
Outline of bath
or shower tray
SITING OF THE SHOWER
IMPORTANT: If installing onto a tiled wall
always mount the unit on the surface of the
tiles. NEVER tile up to the unit.
Refer to fig.6 for the correct siting of the
shower. Position the unit where it will NOT be in
direct contact with water from the shower head.
Position the shower unit vertically.
Allow enough room between the ceiling and the
shower to access the cover top screws. Leave
enough space between the left-hand side of the
unit and the wall to allow access to the pressure
relief device (PRD) in the future.
Note: Water regulations require the shower
head be ‘constrained by a fixed or sliding
attachment so that it can only discharge water at
a point not less than 25mm above the spill-over
level of the relevant bath, shower tray or other
fixed appliance’. The use of the supplied gel
hanger/hose guide will in most cases meet this
requirement, but if the shower head can be
placed within a bath, basin or shower tray, then
a double check valve, or similar, must be fitted in
the supply pipework to prevent back-flow.

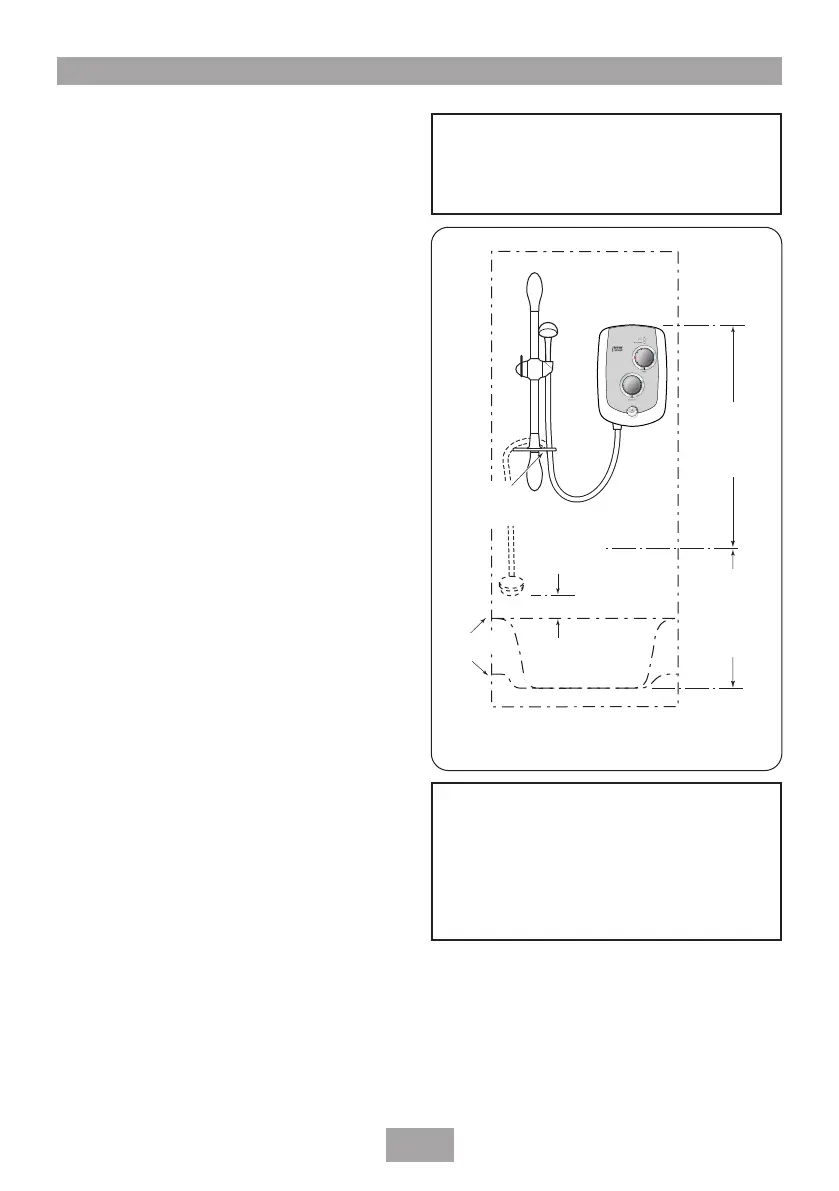

Fig.6 Diagrammatic view (not to scale)
W-008-A
WARNING!
The shower must not be positioned
where it will be subjected to freezing
conditions.
I-002-A
IMPORTANT: The unit must be mounted on
a flat surface which covers the full width
and length of the backplate. It is important
that the wall surface is flat otherwise
difficulty may be encountered when fitting
the cover and subsequent operation of the
unit may be impaired.
