Triumph Bonneville Bobber 2018 User Manual

General Information
22

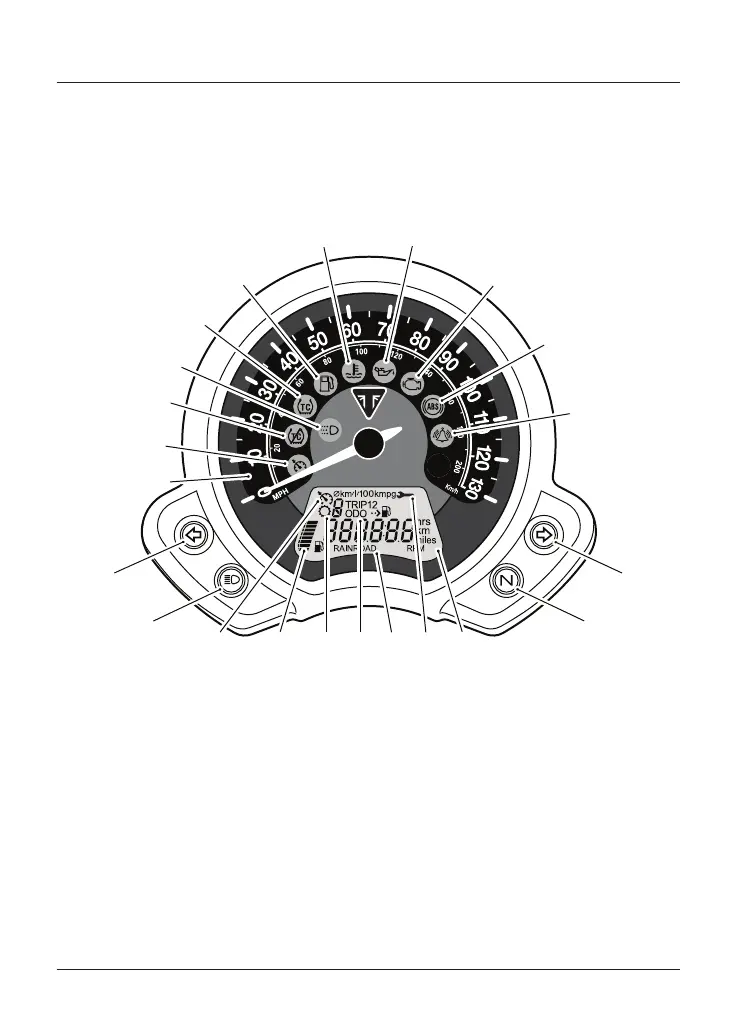

Instrument Panel Layout
Note:
• For illustration purposes, the Bonneville Bobber is shown.
cjux
19
18
17 16
15
11
10
9
8
7
5
4
3
1
12
14
13
6
2
20
21
22
1. Speedometer
2. Cruise control indicator light (if fitted)
3. Traction Control (TC) disabled
warning light
4. Daytime Running Lights (DRL) indicator
light (if fitted)
5. Traction Control (TC) indicator light
6. Low fuel level indicator light
7. High coolant temperature warning light
8. Low oil pressure warning light
9. Engine management Malfunction
Indicator Light (MIL)
10. ABS (Anti-Lock Brake System)
warning light
11. Immobiliser status indicator light
12. Right hand direction indicator light
13. Neutral indicator light
14. Information display screen
15. Service interval indicator
16. Rider modes
17. Odometer/Trip meter/Clock
18. Gear position indicator
19. Fuel gauge
20. Cruise control indicator (if fitted)
21. High beam indicator light
22. Left hand direction indicator light

Triumph Bonneville Bobber 2018 Specifications

General

Engine Displacement	1200 cc
Compression Ratio	10.0:1
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Transmission	6-speed
Frame	Tubular steel cradle
Front Tyre	100/90-19
Rear Tyre	150/80 R16
Seat Height	690 mm
Trail	90 mm
Dry Weight	228 kg
Engine Type	Liquid-cooled, 8 valve, SOHC, parallel twin
Bore x Stroke	97.6 mm x 80 mm
Power	76 HP (55 kW) @ 6, 100 rpm
Torque	106 Nm @ 4, 000 rpm
Final Drive	Chain
Swingarm	Twin-sided, steel
Front Wheel	19 x 2.5 in
Rear Wheel	16 in
Front Suspension	41mm forks
Front Brakes	Single 310 mm disc, 2-piston caliper
Rear Brakes	Single 255 mm disc, 2-piston caliper
Instrument Display and Functions	LCD multi-functional instrument pack with analogue speedometer, odometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, trip computer, scroll and mode buttons on handlebar, cruise control, traction control status, heated grip ready, and throttle mode display
Wheelbase	1, 510mm
Tank Capacity	9.1 L (2.4 US gal)
Exhaust	Brushed 2-into-2 with twin slash cut silencers
