Rebound Damping Adjustment -
Tiger 800 XCA and Tiger 800 XCX
The rebound damping adjuster is
located at the top of the right hand fork.
cimt
+
_
1
2

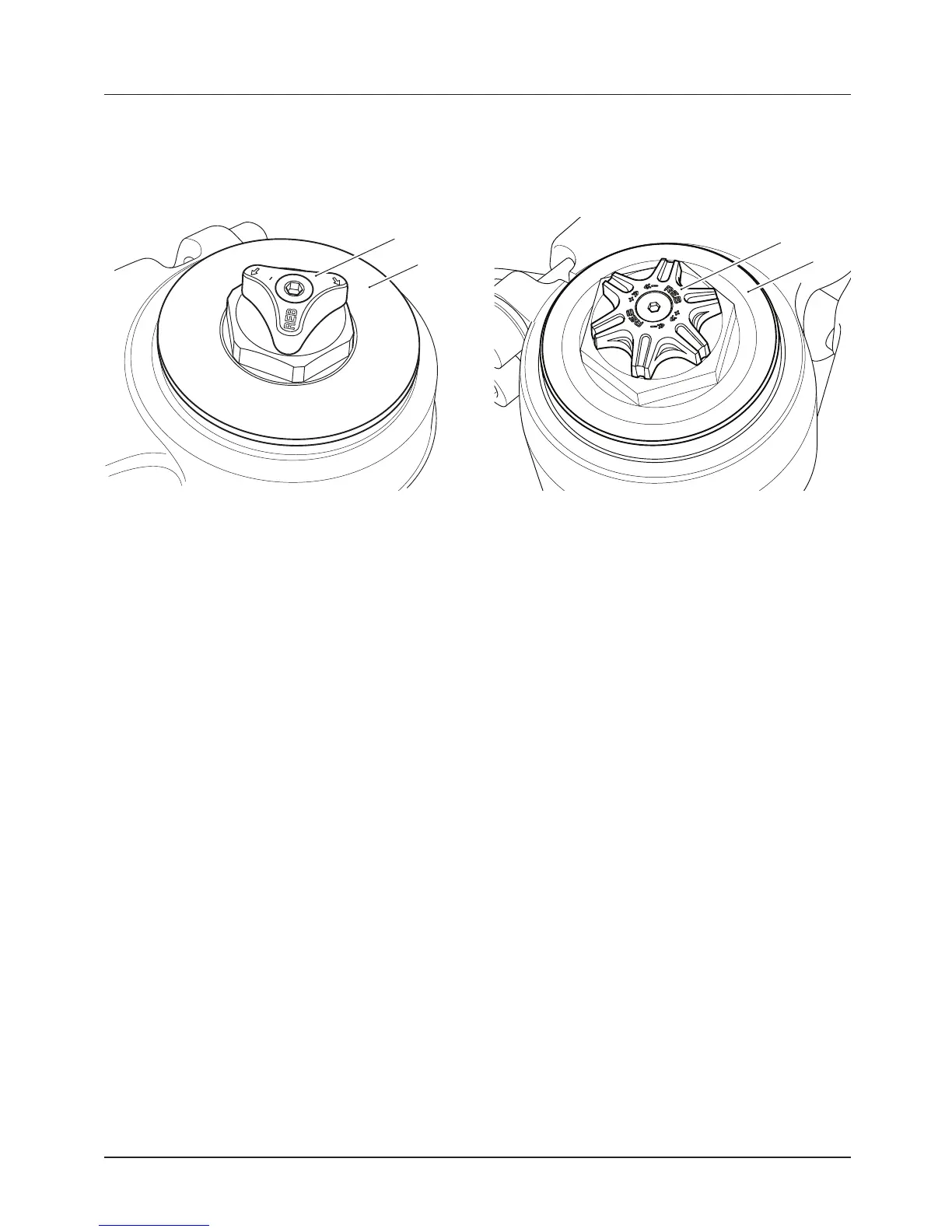

1. Rebound damping adjuster (red)
2. Fork top cap
To adjust the front rebound damping
setting:
• Rotate the rebound damping
adjuster clockwise to increase, or
counterclockwise to decrease.
• Always count the number of clicks
back from the fully clockwise
(closed) position.
Rebound Damping Adjustment -
Tiger 800 XRT
The rebound damping adjuster is
located at the top of the left hand fork.
ckeg
1
2
1. Rebound damping adjuster
2. Fork top cap
To adjust the front rebound damping
setting:
• Rotate the rebound damping
adjuster clockwise to increase, or
counterclockwise to decrease.
• Always count the number of clicks
back from the fully clockwise
(closed) position.
