Triumph Tiger XCX - Daytime Running Light (DRL) (if Equipped); Fog Lights (if Equipped); Tail;Brake Light; License Plate Light; Turn Signal Lights

Maintenance
182
To replace a bulb:
• Remove the rider's seat.
• Disconnect the battery, negative
(black) lead first.
• Remove the bulb cover from the
bulb to be replaced by rotating it
counterclockwise.
• Disconnect the multiplug from the
bulb.
• Detach the bulb retainer from the
hook on the headlight assembly
and rotate it away from the bulb as
shown.
• Remove the bulb from the bulb
retainer.
• Installation is the reverse of the
removal procedure.
Position Light Bulb Replacement
The position light is mounted to the
center of the headlight.
2
3
1
1
c
h
g
n

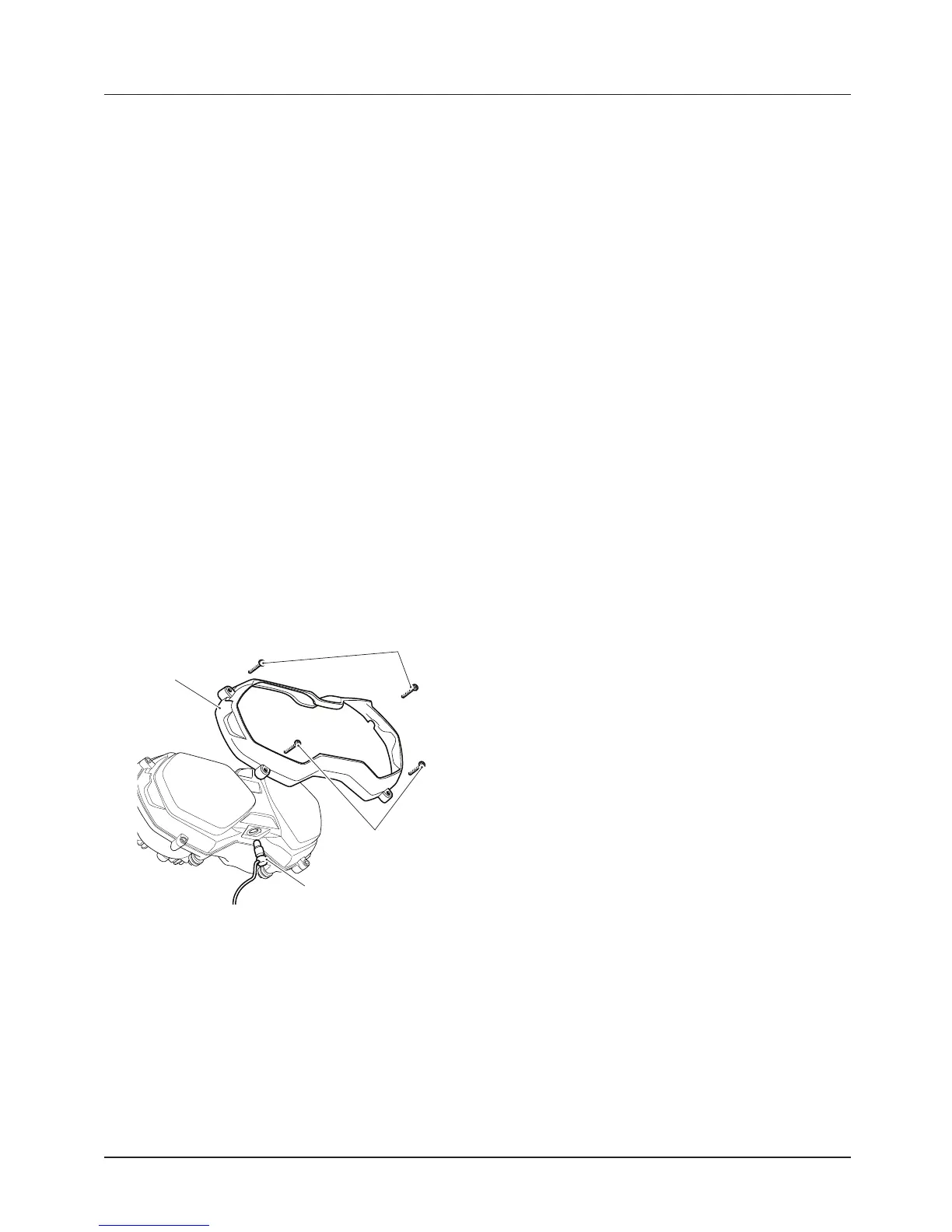

1. Fasteners
2. Headlight surround
3. Position light bulb
To replace the bulb:
• Remove the four fasteners.
• Remove the headlight surround.
• Detach the rubber retainer from
the headlight and gently pull out
the bulb.
• Installation is the reverse of the
removal procedure.
Daytime Running Light (DRL)
(if equipped)
The Daytime Running Light (DRL) is
situated within the headlight assembly
and is a sealed, maintenance-free LED
unit. The headlight unit must be
replaced in the event of the failure of
the DRL.
Fog Lights (if equipped)
The fog light units are sealed,
maintenance-free LED units.
Tail/Brake Light / License Plate
Light
The tail/brake light unit is a sealed,
maintenance-free LED unit. The license
plate light is integral to the tail/brake
light unit.
Turn Signal Lights
The motorcycle is equipped with either
LED or bulb turn signal lights.
LED Turn Signal Lights
The turn signal light units are sealed,
maintenance-free LED units.
