175
• Cover the positive terminal with the
protective cap.
3
2
1
3
L0438

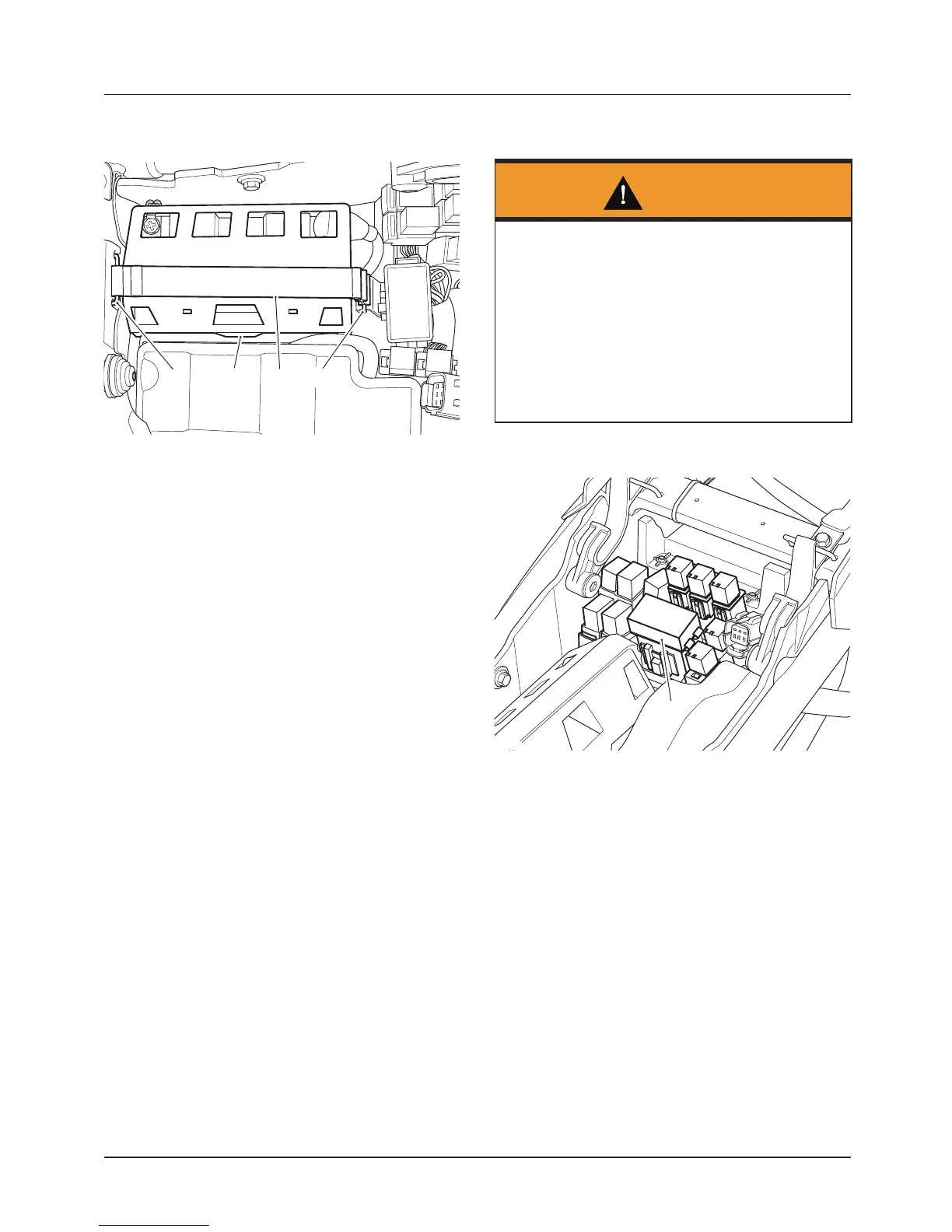

1. Battery cover
2. Battery strap
3. Battery strap anchor points
• Reinstall the battery cover. Make
sure that the orientation of the
leads and the battery cover are the
same as before the removal
process.
• Re-install the battery strap.
• Reinstall the rider's seat.
Fuses
Warning
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
Fuse Box Location
1
1. Fuse box
The fuse box is located beneath the
rider's seat.
To allow access to the fuse boxes, the
rider's seat must be removed (see
page 104).
Note:
• The starter solenoid has an
additional 30 Amp fuse, attached
directly to the solenoid under the
battery, beneath the rider's seat.
