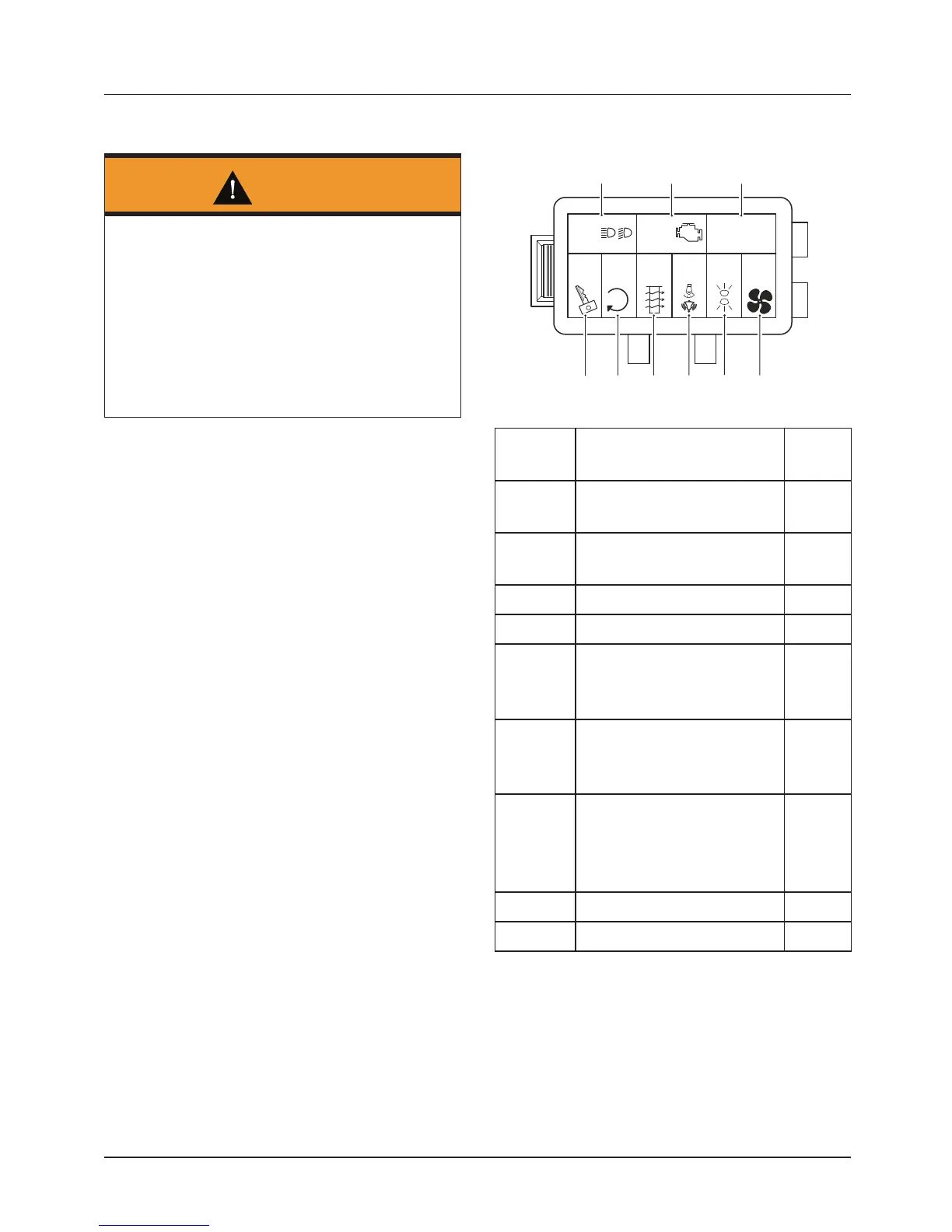

Fuse Identification
Warning
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
Note:
• If the motorcycle is equipped with
rider mode settings, then before
disconnecting the battery or
removing a fuse, note and record
the rider mode settings. Once the
fuse has been reinstalled or the
battery reconnected then the rider
mode settings should be reset as
noted.
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown
fuse, use the relevant tables to
establish which fuse has blown.
The fuse identification numbers listed in
the tables correspond with those
printed on the fuse box covers, as
shown below.
Tiger 800 XR
20A ABS
15A
15A
10A
10A
20A
15A
15A
15A
98 7
1
2
3
4 56
Position Circuit Protected Rating
(Amps)
1 Dip and High Beam
Headlights
10
2 Engine Management
System
20
3 ABS 20
4 Cooling Fan 15
5 Tail/Brake Light,
Position Light and
Accessory Socket
15
6 Alarm, Instruments,
Indicators and Starter
Circuit
15
7 Heated Handlebar
Grips, Fog Lights and
USB Socket
(if equipped)
10
8 Fuel Pump 15
9 Ignition Switch 15
