Triumph Tiger XCX - Page 177

Maintenance
177

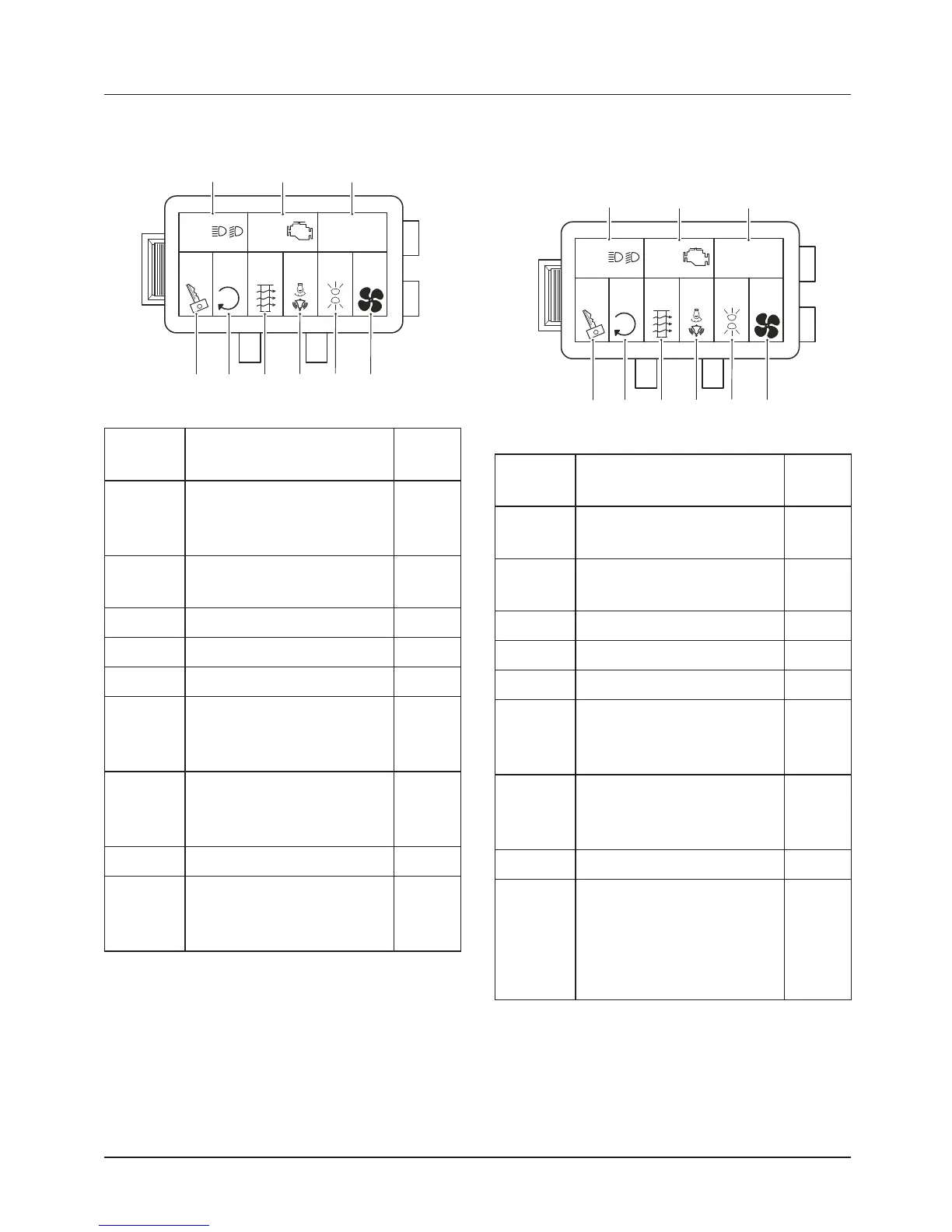

Tiger 800 XRT and Tiger 800 XCA
20A ABS
15A 15A 15A
10A
20A
15A 15A 10A
98 7
1
2
3
4 56
Position Circuit Protected Rating
(Amps)
1 Headlights, Daytime
Running Light (DRL)
and Position Light
10
2 Engine Management
System
20
3 ABS 20
4 Cooling Fan 15
5 Horn and Fog Lights 10
6 Alarm, Instruments,
Indicators and Starter
Circuit
15
7 Heated Handlebar
Grips, Heated Seats
and Accessory Socket
15
8 Fuel Pump 15
9 Ignition Switch, Tail/
Brake Light and USB
Socket
15
Tiger 800 XRX, Tiger 800 XRX - LRH
and Tiger 800 XCX
20A ABS
15A 15A 15A
15A
20A
15A 15A 10A
98 7
1
2
3
4 56
Position Circuit Protected Rating
(Amps)
1 Dip and High Beam
Headlights
15
2 Engine Management
System
20
3 ABS 20
4 Cooling Fan 15
5 Horn and Fog Lights 10
6 Alarm, Instruments,
Indicators and Starter
Circuit
15
7 Heated Handlebar
Grips and Accessory
Socket
15
8 Fuel Pump 15
9 Ignition Switch, Tail/
Brake Light, USB
Socket, Daytime
Running Light (DRL)
and Position Light
15
