MAINTENANCE
102

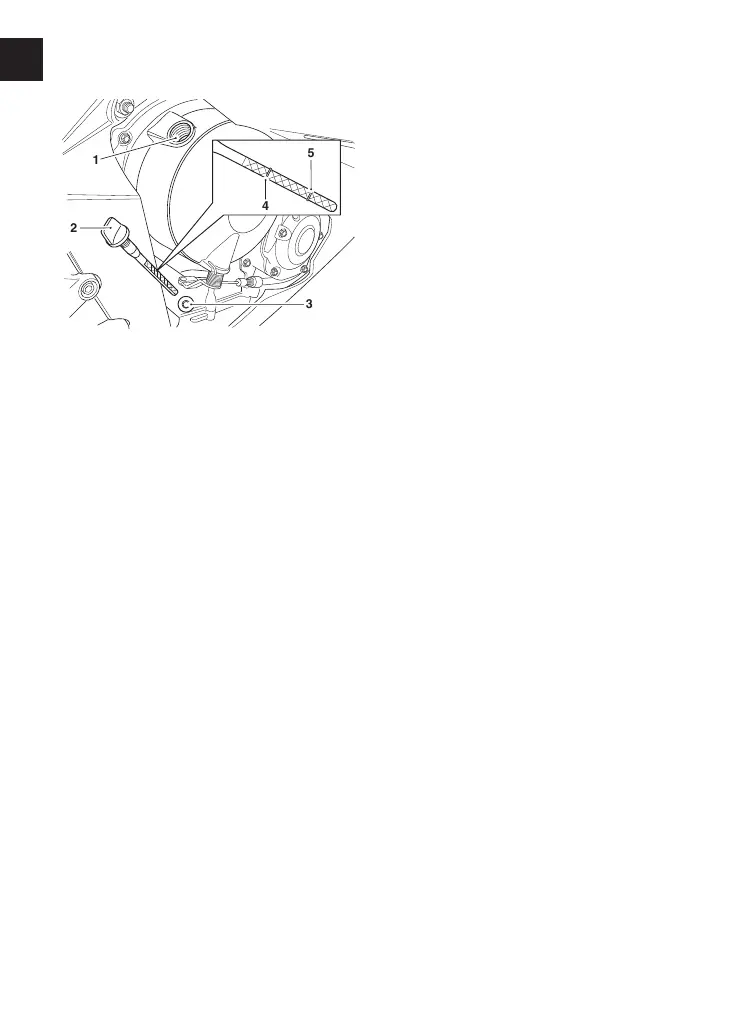

1. Filler
2. Dipstick
3. Dipstick location in crankcase
4. Upper marking
5. Lower marking
To inspect the engine oil level:
▼ Start the engine and run at idle for
approximately five minutes.
▼ Stop the engine, then wait for at
least three minutes for the oil to
settle.
Note
An accurate indication of the level of oil
in the engine is only shown when the
engine is at normal operating
temperature, the motorcycle is upright
(not on the side stand) and when the
dipstick has been fully tightened.
Do not add oil through the dipstick hole
in the crankcase.
▼ Remove the dipstick.
▼ The oil level is indicated by lines on
the dipstick. When full, the indicated
oil level must be level with the upper
marking on the dipstick.
▼ If the oil level is below the lower
marking, remove the filler plug and
add oil a little at a time through the
filler plug hole in the clutch cover
until the correct level is reached.
▼ Once the correct level is reached,
install and tighten the filler plug.
