MAINTENANCE
140

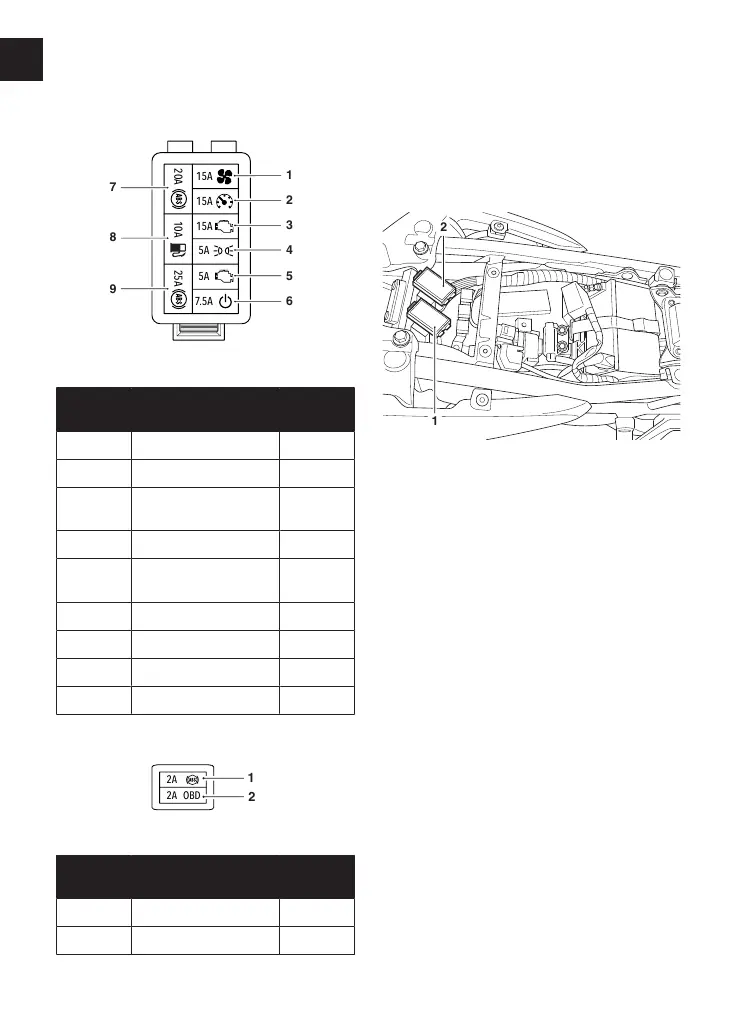

Trident Fuse Box 1
15A
15A
5A
.5A
20A 10A 25A
5A
7
15A
9
1
2
3
4
5
6
7
8
Trident Fuse Box 1
Position Circuit Protected
Rating
(Amps)
1 Cooling Fan 15
2 Instruments 15
3
Engine Management
System (EMS)
15
4 Position Lighting 5
5
Engine Control Unit
(ECU)
5
6 Ignition 7.5
7 ABS Solenoid 20
8 Fuel Pump 10
9 ABS Motor 25
Trident Fuse Box 2
2A
2A OBD
1
2
Trident Fuse Box 2
Position Circuit Protected
Rating
(Amps)
1 ABS ECU 2
2 Diagnostics 2
Tiger Sport Fuses
The fuse boxes are located underneath
the seat. To allow access to the fuse
box, the seat must be removed (see
page73).
2
1
1. Tiger Sport Fuse Box 1
2. Tiger Sport Fuse Box 2
Spare fuses are located on the inside of
the fuse box covers and should be
replaced if used.
