Trident Headlight Adjustment
The headlight can only be vertically
adjusted.
1

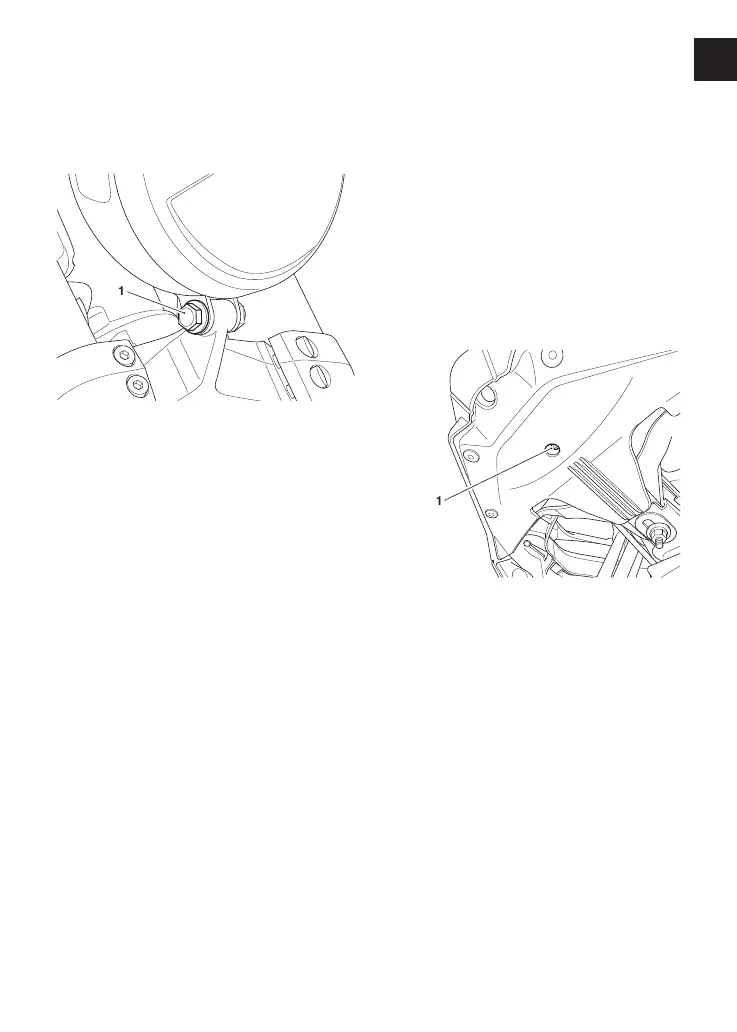

1. Headlight assembly mounting bolt
To vertically adjust the headlight beam:
▼ Switch the ignition on. The engine
does not need to be running.
▼ Switch the headlight dipped beam on.
▼ Always make sure the handlebars
are in the straight ahead position.
▼ Loosen the headlight assembly
mounting bolt securing the headlight
bracket to the front subframe
sufficiently to allow restricted
movement of the headlights.
▼ Adjust the position of the headlight
to give the required beam setting.
▼ Tighten the headlight assembly
mounting bolts to 19lbfft (26Nm).
▼ Recheck the headlight beam settings.
▼ Switch the headlights off when the
beam settings are satisfactorily set.
Tiger Sport Headlights Adjustment
The left and right headlights can only be
adjusted vertically and only adjusted
together. Independent adjustment is
not possible.
To vertically adjust the headlight beam:
▼ Switch the ignition on. The engine
does not need to be running.
▼ Switch the headlight dipped beam on.
▼ Always make sure the handlebars
are in the straight ahead position.
1
1. Headlight adjuster screw
▼ Using the Allen key provided under
the seat, turn the headlight adjuster
screw located underneath the
cockpit to achieve the required
headlight beam setting.
