STEP 2: HANDLEBAR POST AND COVER
Remove 6 x Hexagon Bolt (62), 4 x Curve Washer (64)
and 2 x Flat Washers (58) from the tube of Main Frame
(1). Remove bolts with S6 Allen Wrench provided.
Connect the Sensor Wire (70) from the Main Frame (1)
to the Extension Sensor Wire (38) from the
Handlebar Post (3).
Insert the Handlebar Post (3) onto the tube of Main
Frame (1) and secure with 6 x Hexagon Bolt (62), 4 x
Curve Washer (64) and 2 x Flat Washer (58) that were
removed. Tighten bolts with S6 Allen Wrench provided.

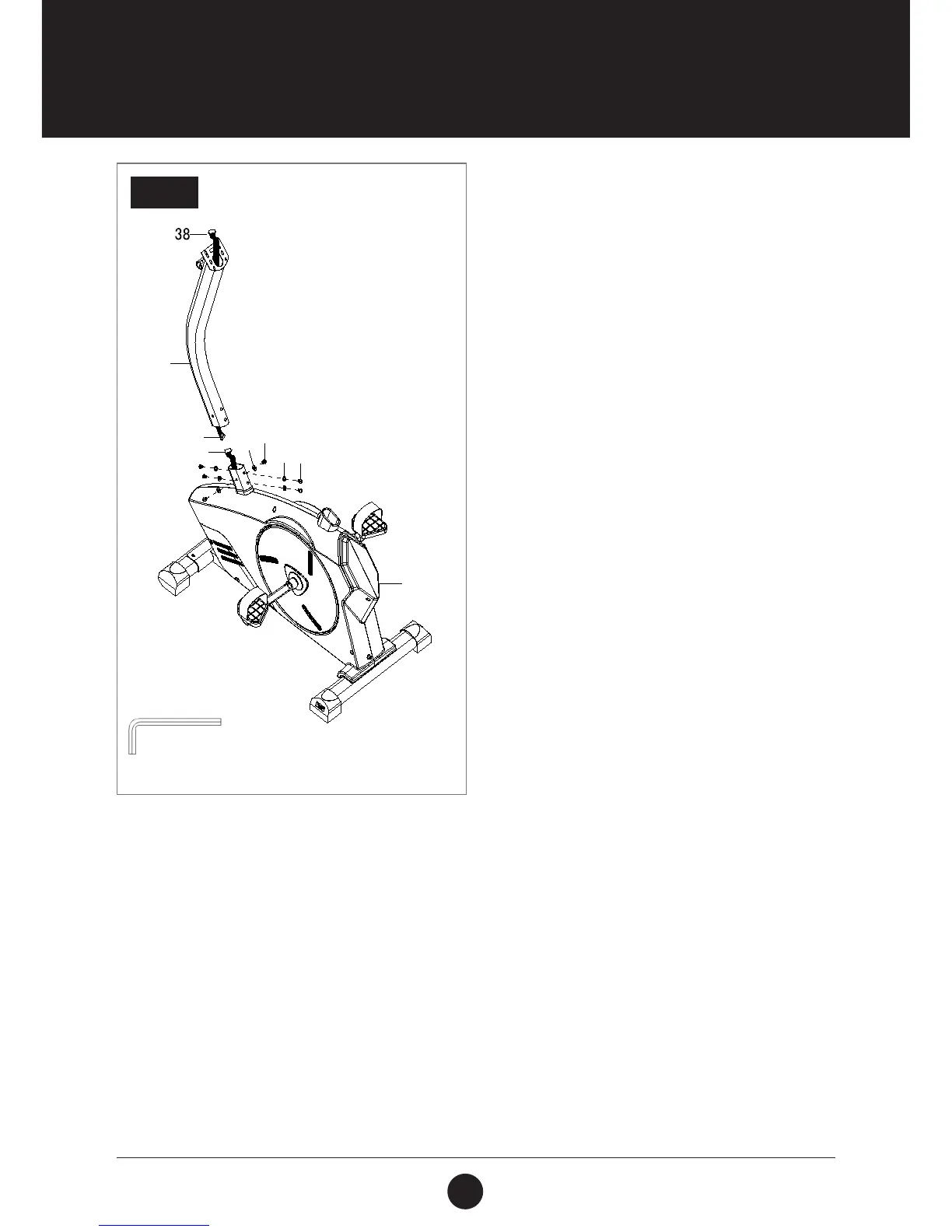

STEP 2
38
3
70
62
58
64
62
1
TOOL:
Allen Key S6
