Trojan MARATHON 210 - ASSEMBLY STEPS; CONNECTING CONSOLE ASSEMBLY; ATTACHING CONSOLE ASSEMBLY

12

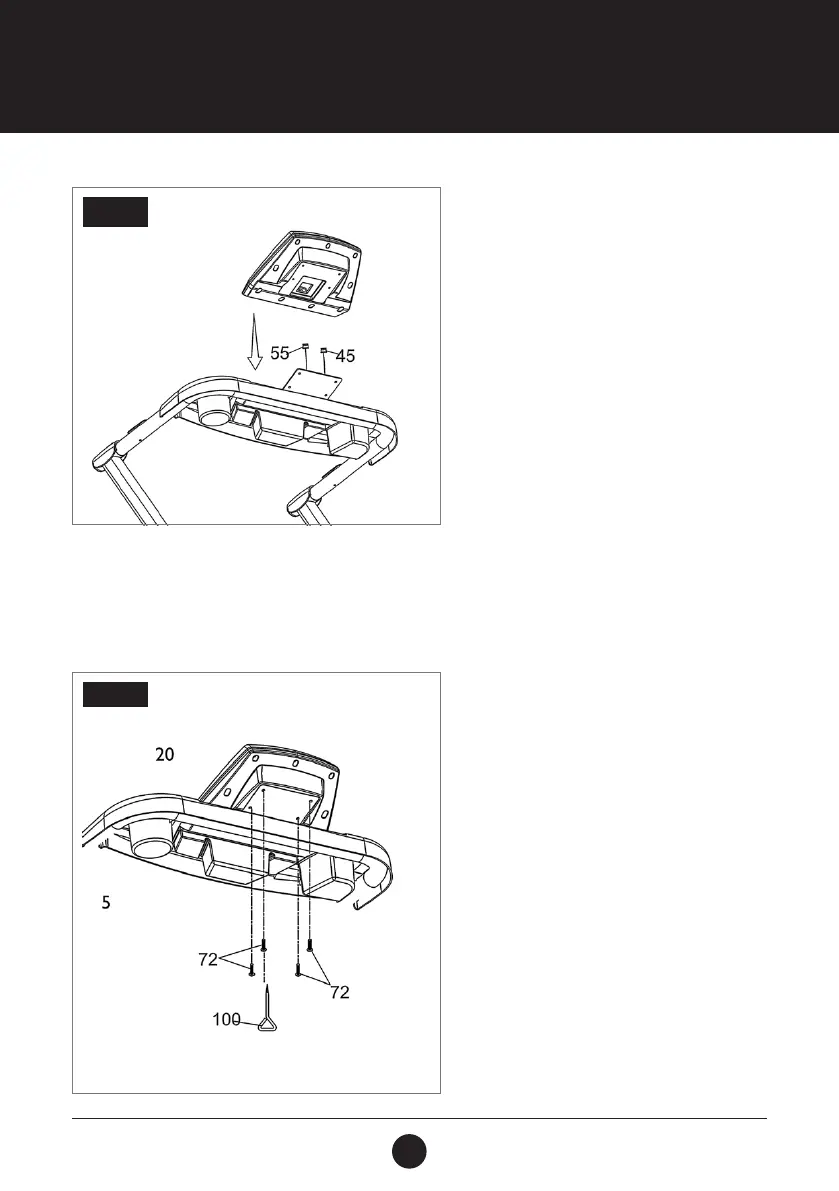

STEP 5:
Connect the Console Cable (Upper) (900 m) (45)
and Handpulse Cable (800 mm) (55) into the
bottom of the Console Assembly (20).
ASSEMBLY STEPS
STEP 5
STEP 6:
Attach the Console Assembly (20) to the
Console Support (5), securing them using
4 Phillips Head Screws (M5 × 15 mm) (72) and
the Short Phillips Head Screw Driver (100).
STEP 6
