ASSEMBLY STEPS
ASSEMBLY STEPS

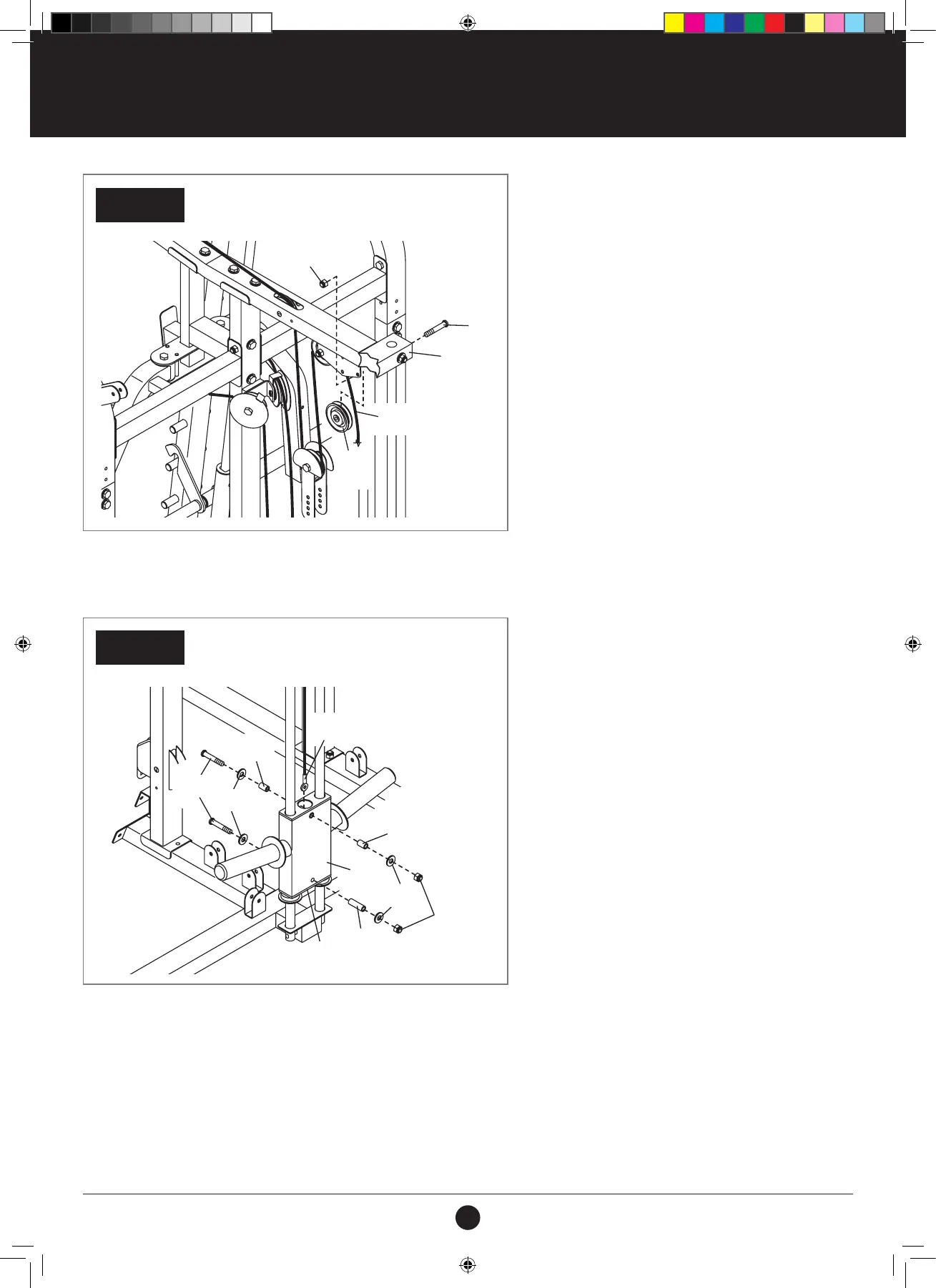

STEP 31:
1. Wrap the High Cable (73) over a 90 mm Pulley
(58). Attach the 90 mm Pulley to the Top Frame
(16) with an M10 x 45 mm Bolt (96) and an M10
Locknut (79).
STEP 32:
1. Attach the High Cable (73) inside the Weight
Carriage (41) with an M10 x 68 mm Bolt (90),
two M10 Washers (84), two 24 mm Spacers (45),
and an M10 Locknut (79).
2. Attach the lower Carriage Bushing (42) inside the
Weight Carriage (41) with an M10 x 68 mm
Bolt (90), two M10 Washers (84), a 50 mm
Spacer (44), and an M10 Locknut (79).
STEP 32
STEP 31
REAR OF THE WEIGHT RACK
REAR OF THE WEIGHT RACK
79
16
58
96
73
