Trojan MULTIFUNTION SMITH MACHINE - Page 33

33
ASSEMBLY STEPS
ASSEMBLY STEPS

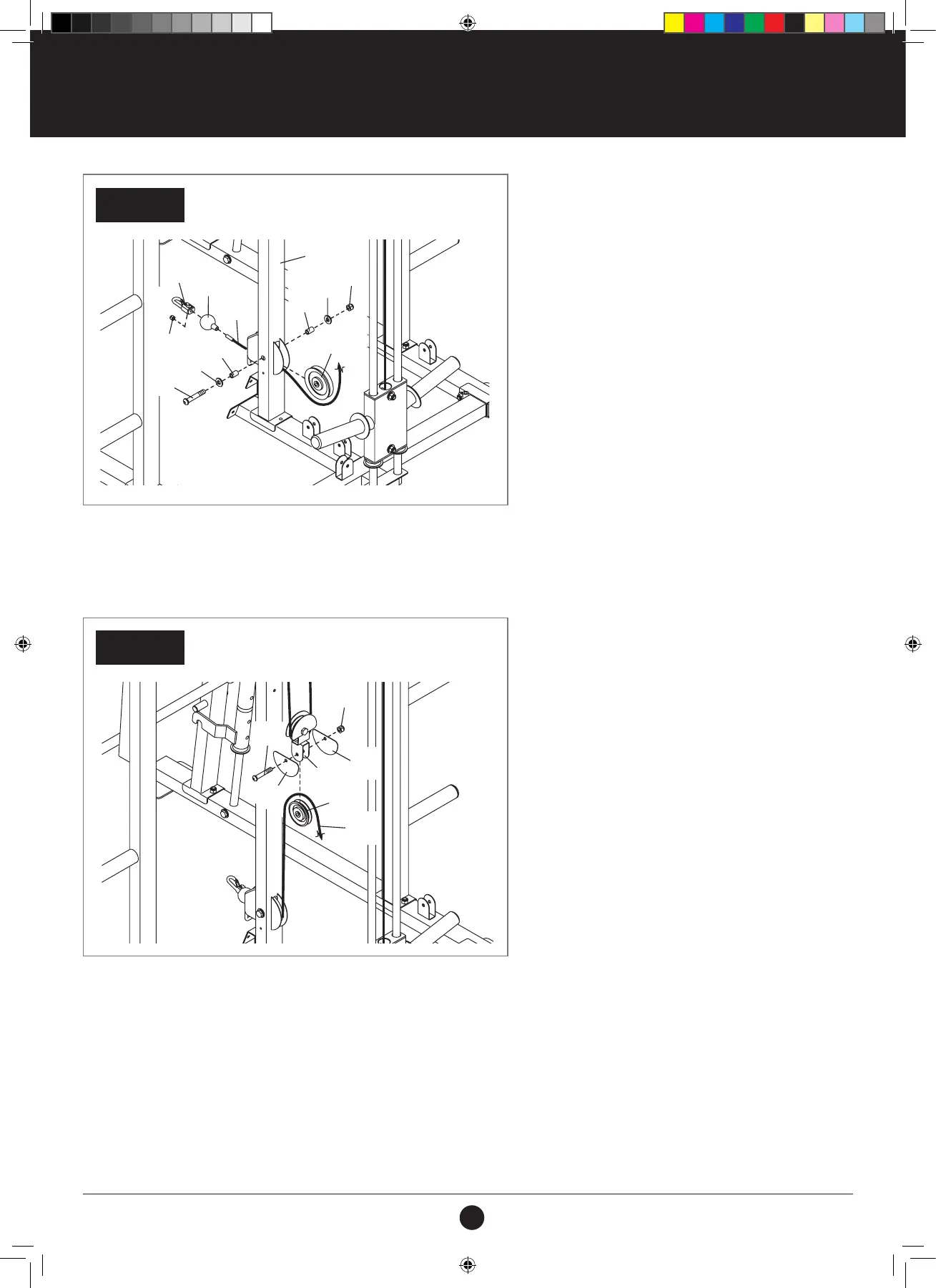

STEP 33:
IDENTIFY THE LOW CABLE (72)
1. Attach a Cable Stop (52), a Clip (53), and an M6
Locknut (100) to the Low Cable (72) as described
in step 27. Make sure that at least two threads
of the Low Cable show past the Locknut.
2. Next, route the Low Cable (72) through the
Backrest Upright (8) and under a 115 mm Pulley
(59). Attach the 115 mm Pulley inside the
Backrest Upright with an M10 x 90 mm Bolt (89),
two M10 Washers (84), two 25 mm Spacers (55),
and an M10 Locknut (79).
STEP 34:
1. Route the Low Cable (72) over a 90 mm Pulley
(58). Attach the 90 mm Pulley and two Half
Guards (40) to the Double U-bracket (46) with
an M10 x 45 mm Bolt (96) and an M10 Locknut
(79).
STEP 34
STEP 33
REAR OF THE WEIGHT RACK
REAR OF THE WEIGHT RACK
46
40
96
58
79
40
72
72
40
40
40
96
58
84
55
72
55
59
84
79
8
89
53
52
100
53
84
84
72
55
55
52
89
100
8
59
79
79
