ASSEMBLY STEPS

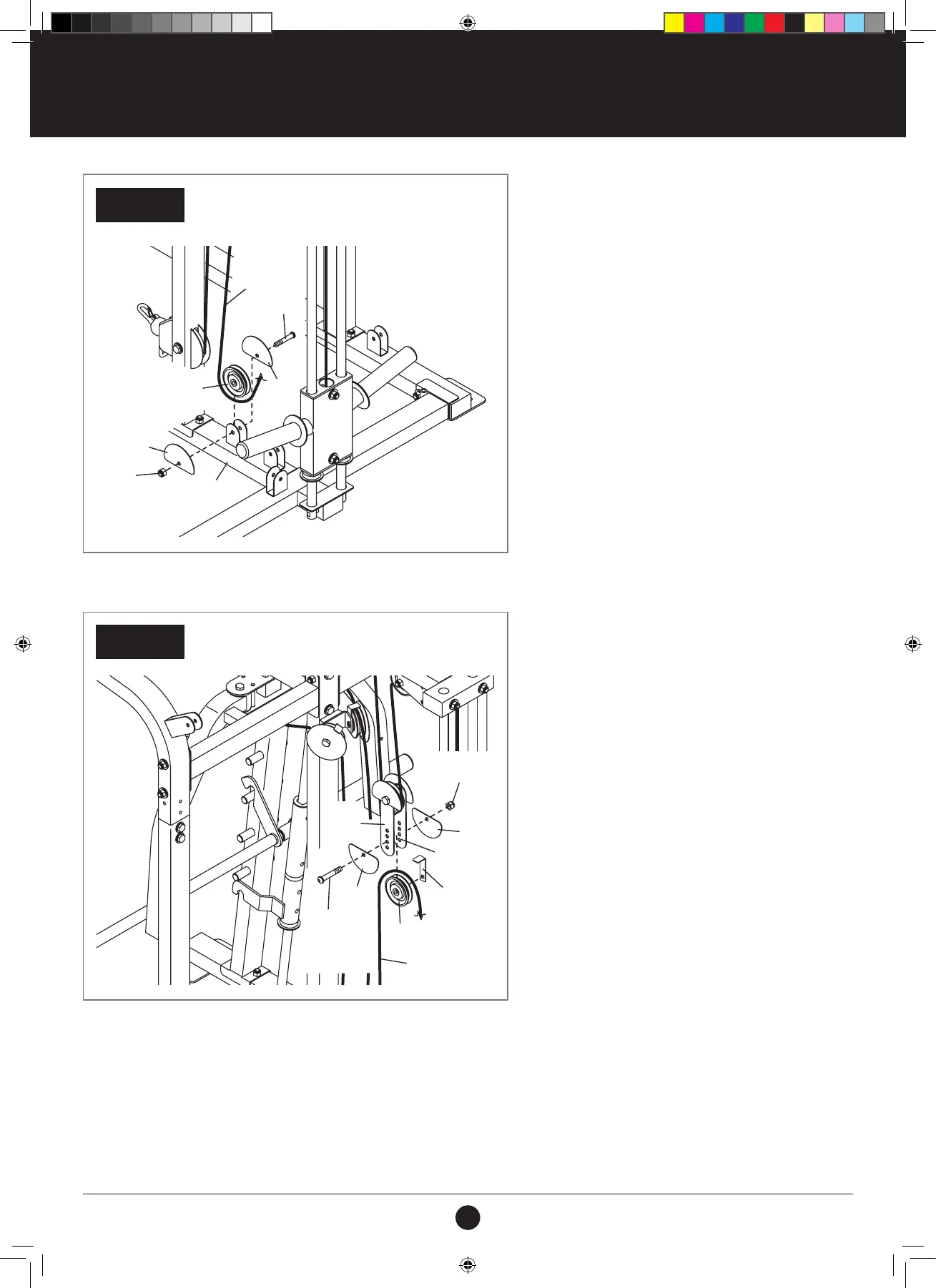

STEP 35:
1. Route the Low Cable (72) under a 90 mm Pulley
(58). Attach the 90 mm Pulley and two Half
Guards (40) to the Centre Base (2) with an M10 x
45 mm Bolt (96) and an M10 Locknut (79).
STEP 36:
1. Wrap the Low Cable (72) over a 90 mm Pulley
(58). Attach the 90 mm Pulley, a Plastic Cable
Trap (63), and two Half Guards (40) to the
second hole from the bottom of the two 90 mm
Pulley Plates (74) with an M10 x 50 mm Bolt
(104) and an M10 Locknut (79).
Make sure that the Plastic Cable Trap is
oriented to hold the Low Cable in the
groove of the 90 mm Pulley.
STEP 36
STEP 35
REAR OF THE WEIGHT RACK
REAR OF THE WEIGHT RACK
