Trojan MULTIFUNTION SMITH MACHINE - Page 35

35
72
40
40
58
2
79
96
72
40
40
96
58
79
2
79
96
16
72
58
58
72
79
96
16
ASSEMBLY STEPS
ASSEMBLY STEPS

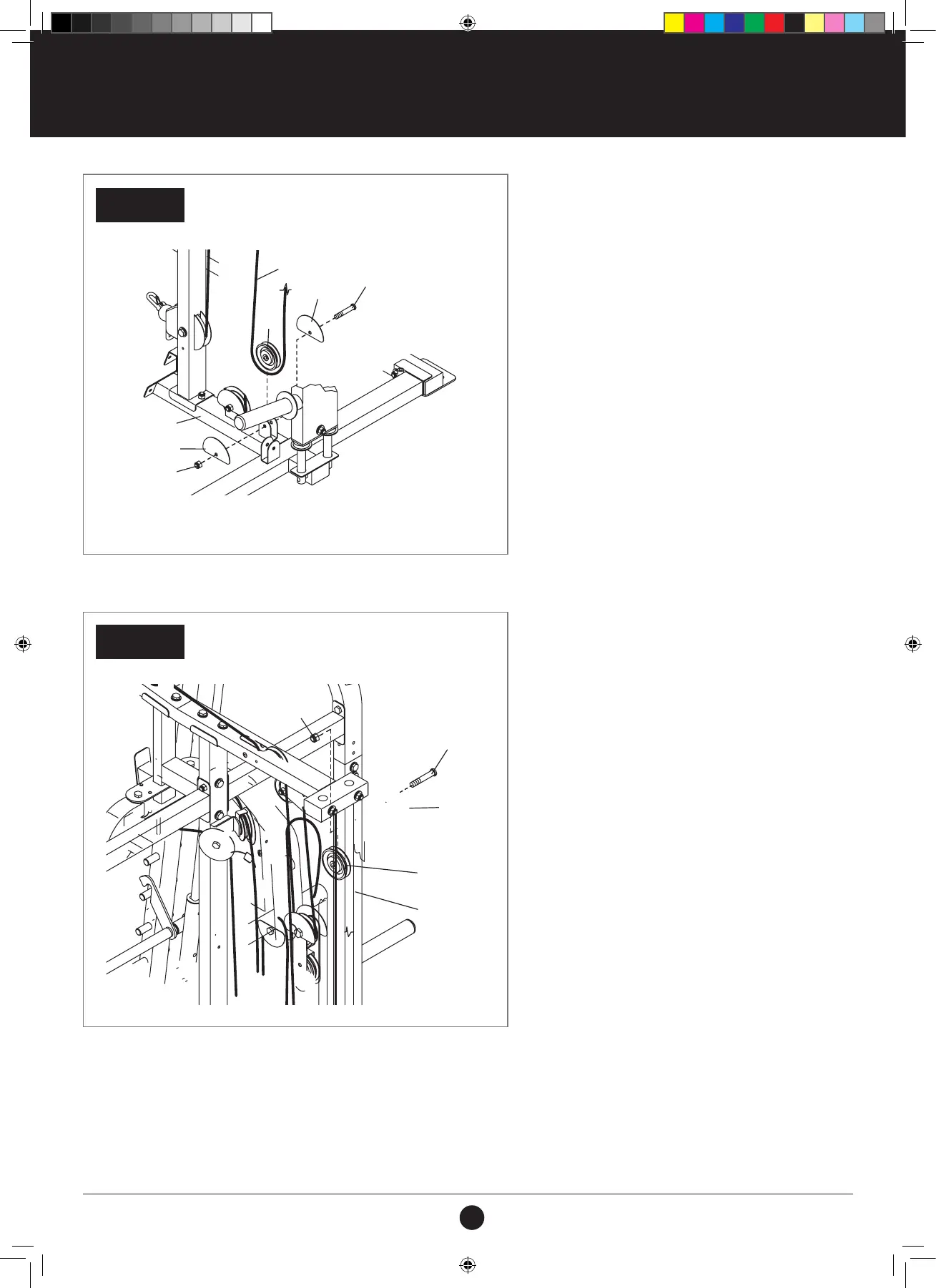

STEP 37:
1. Route the Low Cable (72) under a 90 mm Pulley
(58). Attach the 90 mm Pulley and two Half
Guards (40) to the Centre Base (2) with an M10 x
45 mm Bolt (96) and an M10 Locknut (79).
STEP 38
STEP 37
REAR OF THE WEIGHT RACK
REAR OF THE WEIGHT RACK
STEP 38:
1. Wrap the Low Cable (72) over a 90 mm
Pulley (58). Attach the 90 mm Pulley to the
Top Frame (16) with an M10 x 45 mm Bolt (96)
and an M10 Locknut (79).
