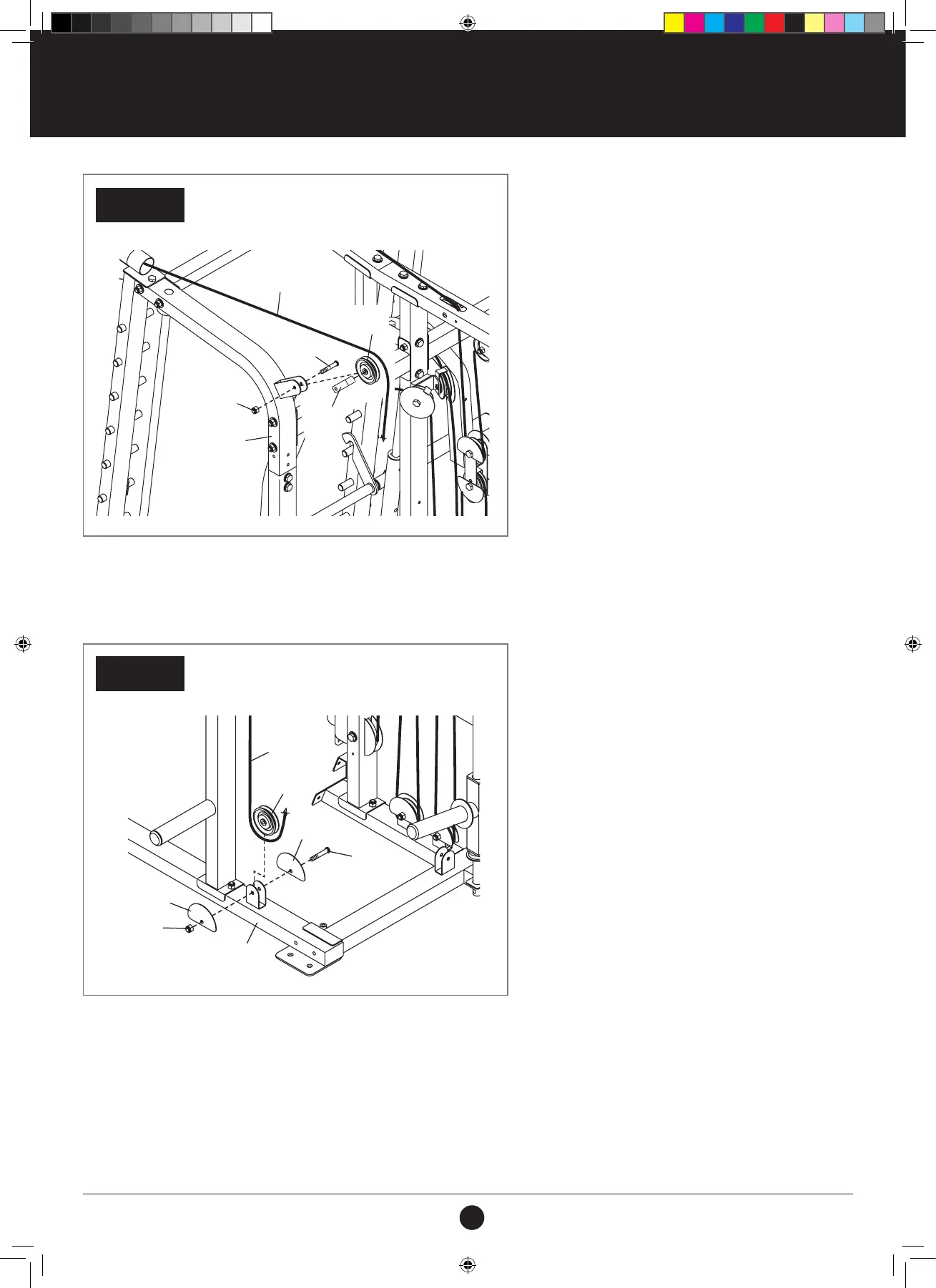

ASSEMBLY STEPS
STEP 41:
1. Route the Long Cable ( ) over a 90 mm
Pulley (58).
2. Attach the 90 mm Pulley and a Plastic Cable
Trap (63) to the left Side Top
Frame (13) with an M10 x 50 mm Bolt (104)
and an M10 Locknut (79).
Make sure that the Plastic Cable Trap is
oriented to hold the Long Cable in the
groove of the 90 mm Pulley.
STEP 42:
1. Route the Long Cable (54) under a 90 mm
Pulley (58).
2. Attach the 90 mm Pulley and two Half Guards
(40) to the left Base (1) with an M10 x 45 mm
Bolt (96) and an M10 Locknut (79).
STEP 42
STEP 41
REAR OF THE WEIGHT RACK
REAR OF THE WEIGHT RACK
104
54
58
13
63
79
