38
79
59
84
103
62
102
2
54
ASSEMBLY STEPS

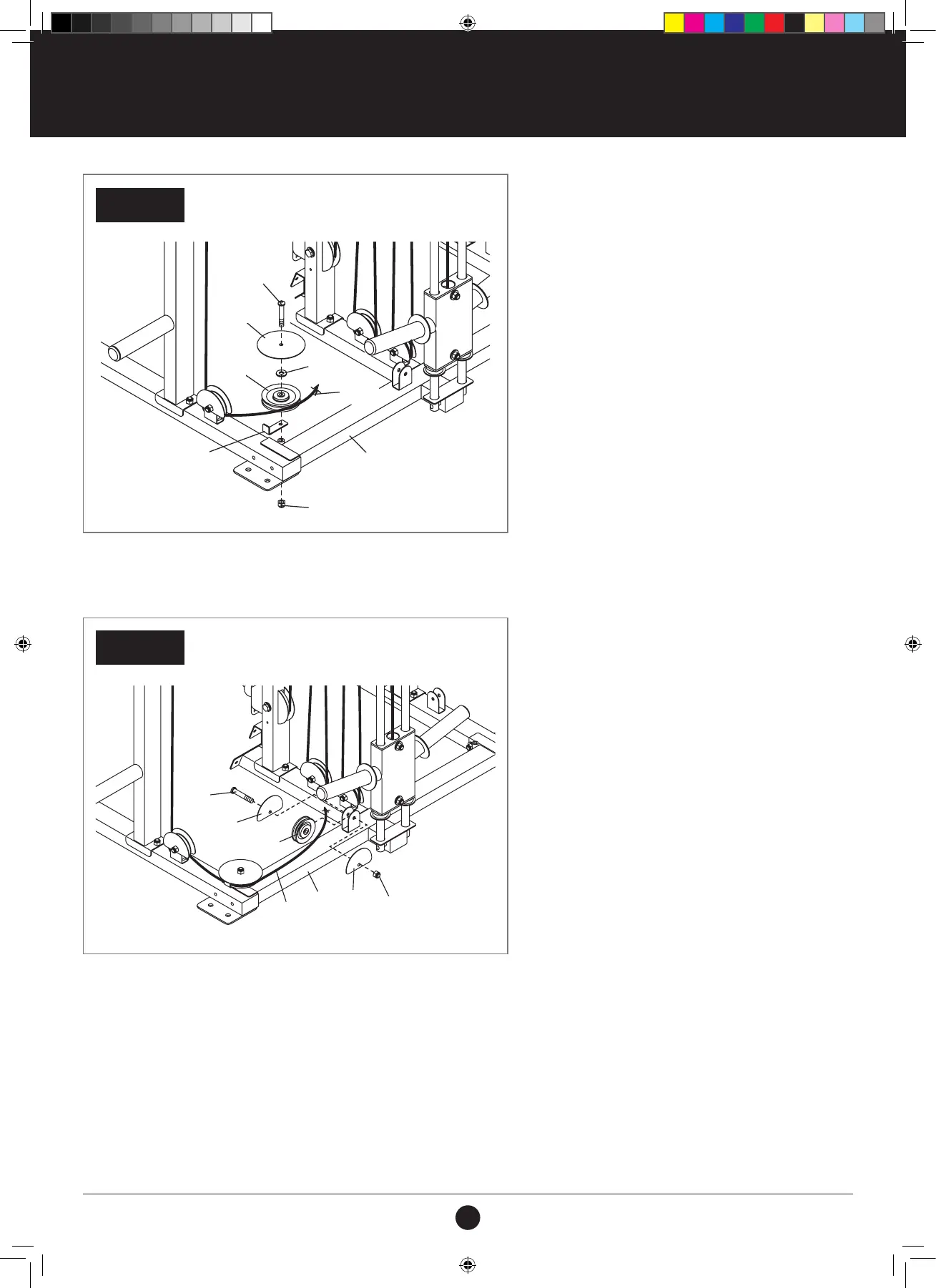

STEP 43:
1. Route the Long Cable (54) around a 115 mm
Pulley (59). Attach the 115 mm Pulley, a Long
Metal Cable Trap (62), an M10 Washer (84), and
a Large Full Guard (103) to the Centre Base (2)
with an M10 x 75 mm Button Bolt (102) and an
M10 Locknut (79).
Make sure that the Long Metal Cable Trap
is oriented to hold the Long Cable in the
groove of the 115 mm Pulley.
STEP 44:
1. Route the Long Cable (54) under a 90 mm Pulley
(58). Attach the 90mm Pulley and two Half
Guards (40) to the Centre Base (2) with an
M10 x 45 mm Bolt (96) and an M10 Locknut (79).
STEP 44
STEP 43
REAR OF THE WEIGHT RACK
79
40
40
58
54
2
96
REAR OF THE WEIGHT RACK
54
40
58
96
40
54
84
79
79
62
2
2
59
103
102
#21M05T035 Multifunction Smith Machine UM A4.indd 38 2021/06/24 11:27 AM
