ASSEMBLY STEPS

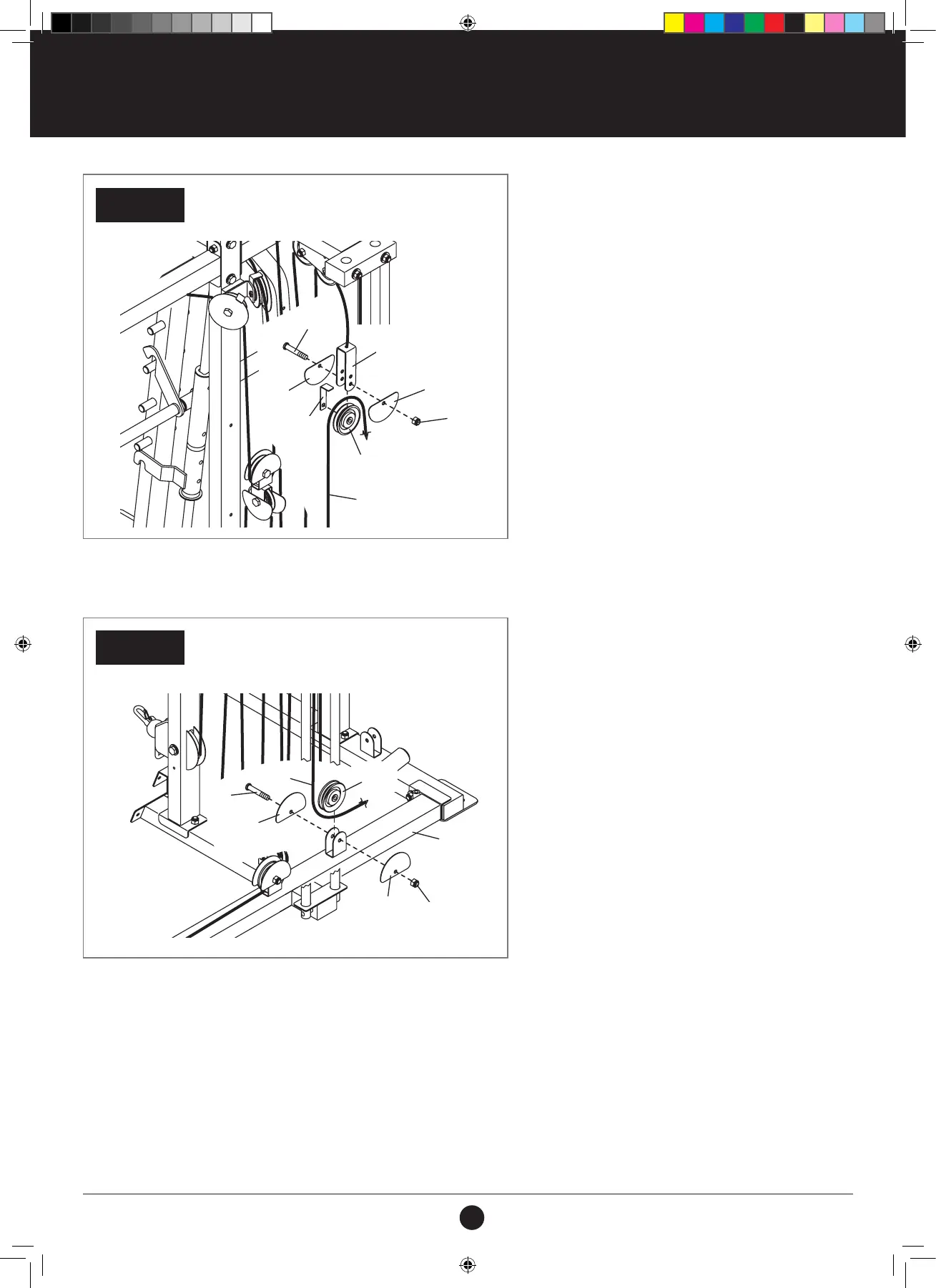

STEP 45:
1. Route the Long Cable (54) over a 90 mm Pulley
(58). Attach the 90mm Pulley, a Plastic Cable
Trap (63), and two Half Guards (40) to the lower
hole of the U-bracket (47) with an M10 x 50 mm
Bolt (104) and an M10 Locknut (79).
Make sure that the Cable Trap is oriented
to hold the Long Cable in the groove of the
Pulley.
STEP 46:
1. Route the Long Cable (54) under a 90 mm
Pulley (58). Attach the 90mm Pulley and two
Half Guards (40) to the Centre Base (2) with an
M10 x 45 mm Bolt (96) and an M10 Locknut (79).
STEP 46
STEP 45
REAR OF THE WEIGHT RACK
REAR OF THE WEIGHT RACK
58
58
96
40
40
40
40
47
63
54
54
2
104
79
79
