ASSEMBLY STEPS
ASSEMBLY STEPS

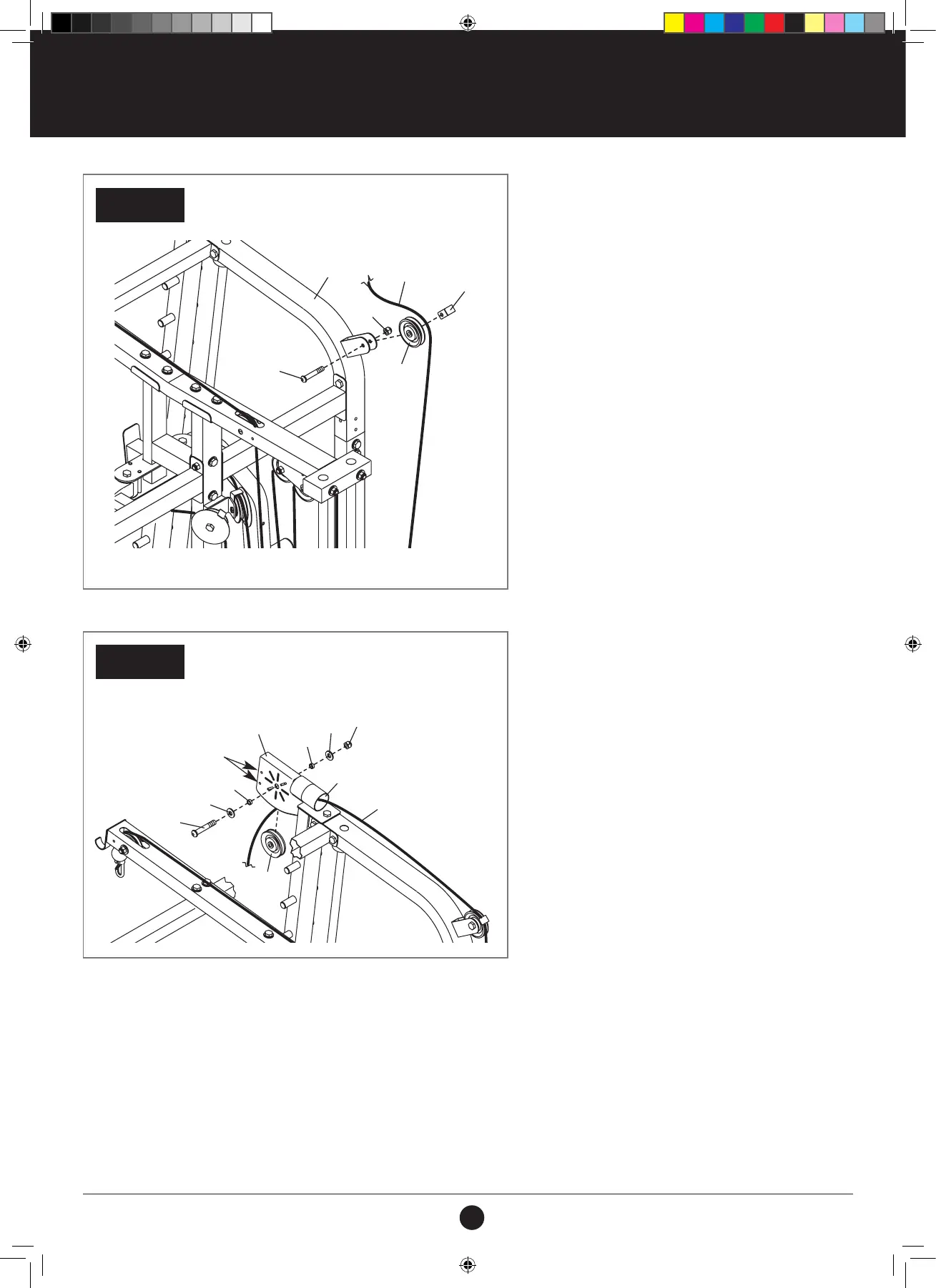

STEP 49:
1. Route the Long Cable (54) over a 90 mm
Pulley (58).
2. Attach the 90 mm Pulley and a Plastic Cable
Trap (63) to the right Side Top Frame (13) with
an M10 x 50 mm Bolt (104) and an M10 Locknut
(79).
Make sure that the Plastic Cable Trap is
oriented to hold the Long Cable in the
groove of the 90 mm Pulley.
STEP 50:
1. Atta Route the Long Cable (54) through the
Right Upright (4) and a Swivel Arm (32).
Make sure that the Long Cable is routed on
the indicated side of the small rods inside
the Swivel Arm.
2. Then, route the Long Cable (54) over a 90 mm
Pulley (58).
3. Attach the 90 mm Pulley inside the Swivel Arm
(32) with an M10 x 53 mm Bolt (137), two M10
Washers (84), two 6 mm Spacers (75), and an
M10 Locknut (79).
STEP 50
STEP 49
REAR OF THE WEIGHT RACK
REAR OF THE WEIGHT RACK
79
13
104
79
75
75
32
137
Rods
4
58
58
58
84
84
54
63
