42
54
52
100
53
29
86
87
8
87
86
30
11
10
30

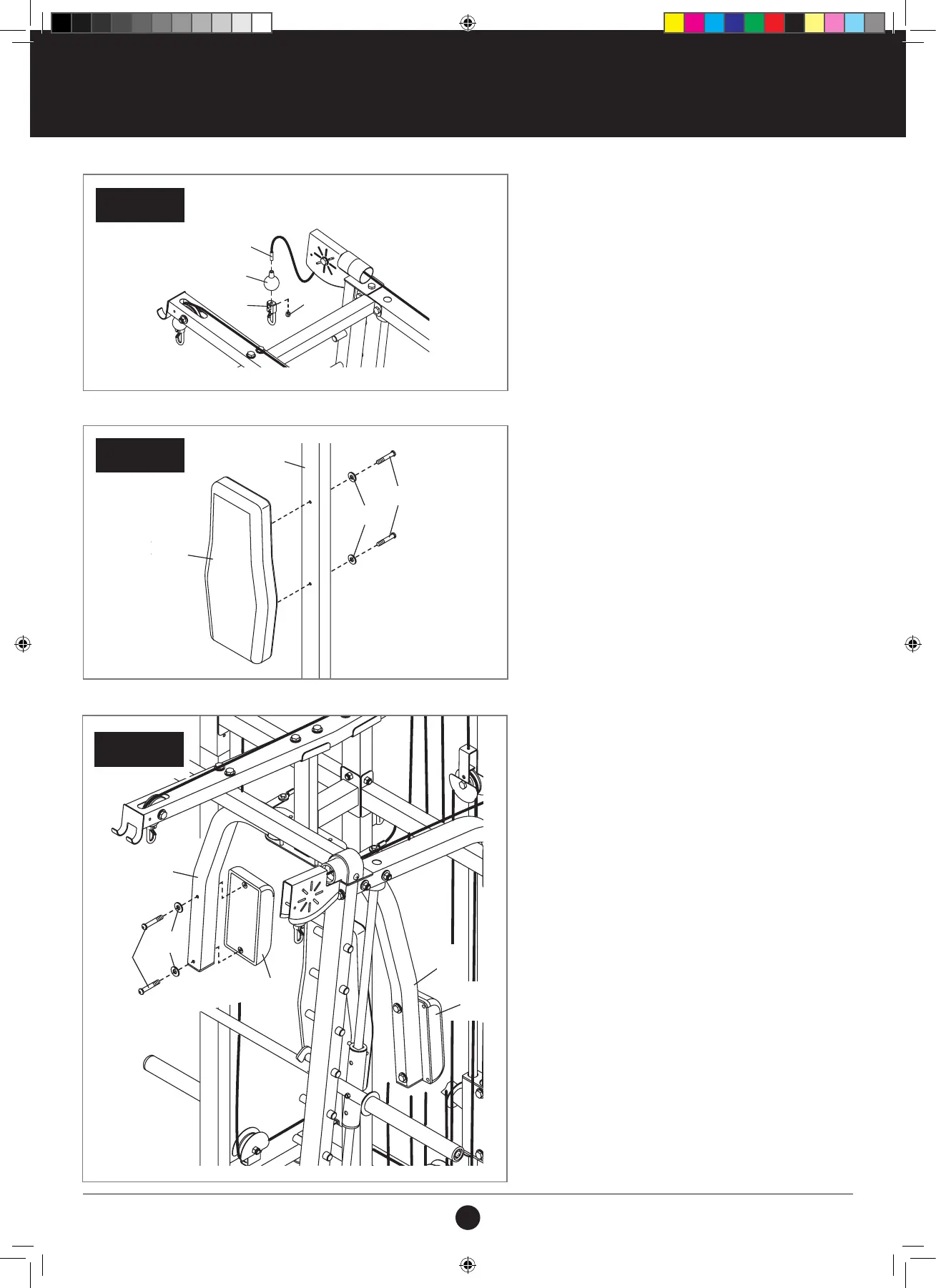

ASSEMBLY STEPS
STEP 51:
1. Attach a Cable Stop (52), a Clip (53), and an
M6 Locknut (100) to the Long Cable (54) as
described in step 27.
Make sure that at least two threads of the
Long Cable show past the Locknut.
STEP 53:
1. Attach an Arm Pad (30) to the Right Arm (11)
with two M6 x 70 mm Screws (87) and two
M6 Washers (86).
2. Attach the other Arm Pad (30) to the Left
Arm (10) in the same way.
STEP 52:
1. Attach the Upright Backrest (29) to the Backrest
Upright (8) with two M6 x 70 mm Screws (87)
and two M6 Washers (86).
STEP 52
STEP 51
REAR OF THE WEIGHT RACK
54
29
8
86
86
87
87
11
10
30
30
52
53
100
STEP 53
