Trojan PULSE 260 User Manual

14
ASSEMBLY STEPS

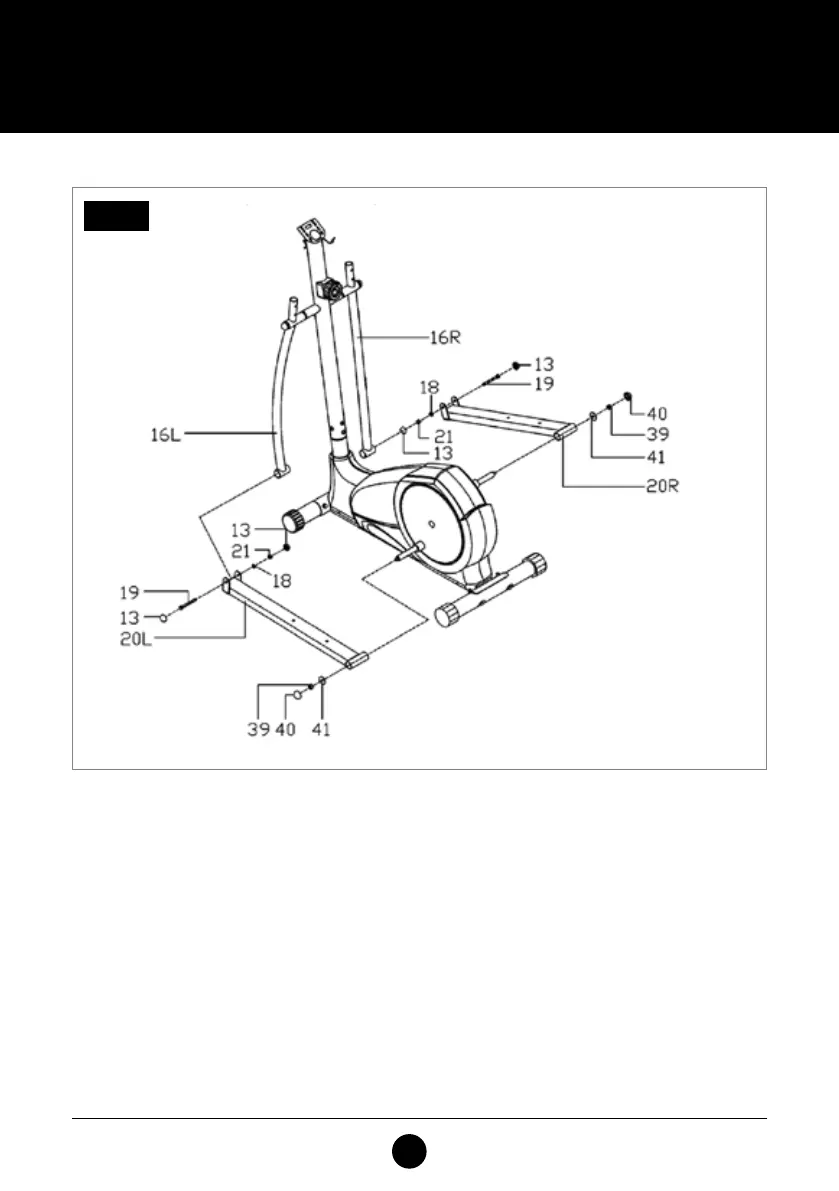

STEP 4: PEDAL ASSEMBLY
Attach the Pedal Rod Post (20 L, 20 R) on each crank axis with a Nylon Nut (M10 x 1.25 mm) (39) and a Washer
(Ø10 x Ø32 x 2 mm) (41), then tighten. Cover the end with a Ball Cap (S16) (40) on both the left and right side.
Tighten each Swing Rod Post (16 L, 16 R) with a Bolt (M8 x 75 mm) (19), a Washer (Ø8 x Ø16 x 1.5 mm) (18) and
a Nylon Nut (M8) (21) and tighten. Then cover the end with a Ball Cap (S13) (13) on both the left and right side.
STEP 4
