Trojan VISION 350 - Step 2: Guide Rods and Post

10173-12

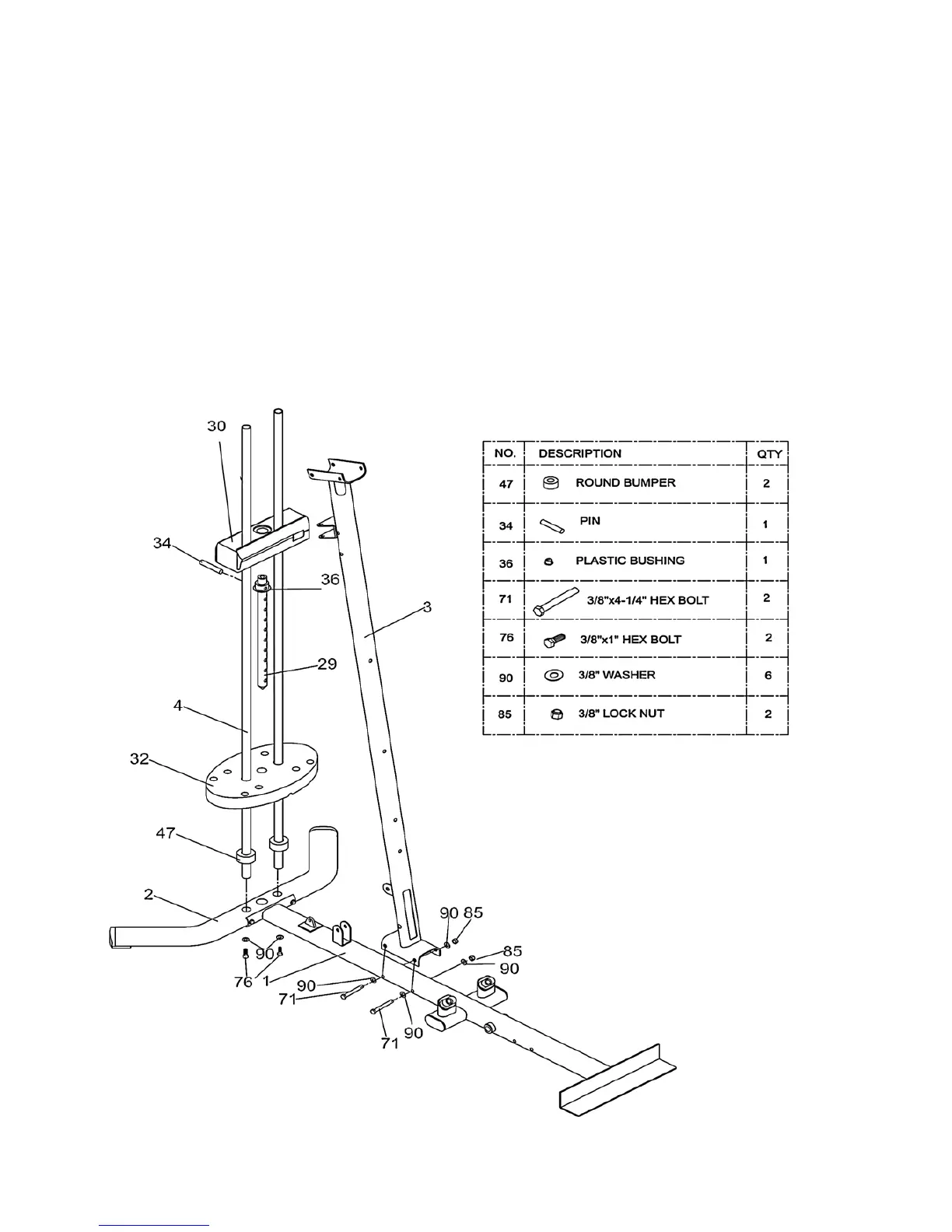

5. ASSEMBLY STEPS
STEP 2
• SlideoneRoundBumper(47)ontoeachGuideRod(4).
• InsertbothGuideRods(4)intotheholesofRearBase(2)usingtwo3/8”x1”HexBolts(76)andtwo3/8”Washers(90)to
secure them.
• SlideWeightBasePlate(32)downontotheGuideRods(4)asshown.
• AttachthePlasticBushing(36)ontothetopofWeightSelectionRod(29),atthersthole,usingPin(34).
• SlideTopPlate(30)downasshown.
• AttachVerticalPost(3)toMainBase(1)usingtwo3/8”x4-1/4”HexBolts(71),four3/8”Washers(90)andtwo3/8”Lock
Nuts (85).
