Trojan VISION 350 - Step 3: Weight Plates and Top Beam

10173-13
5. ASSEMBLY STEPS

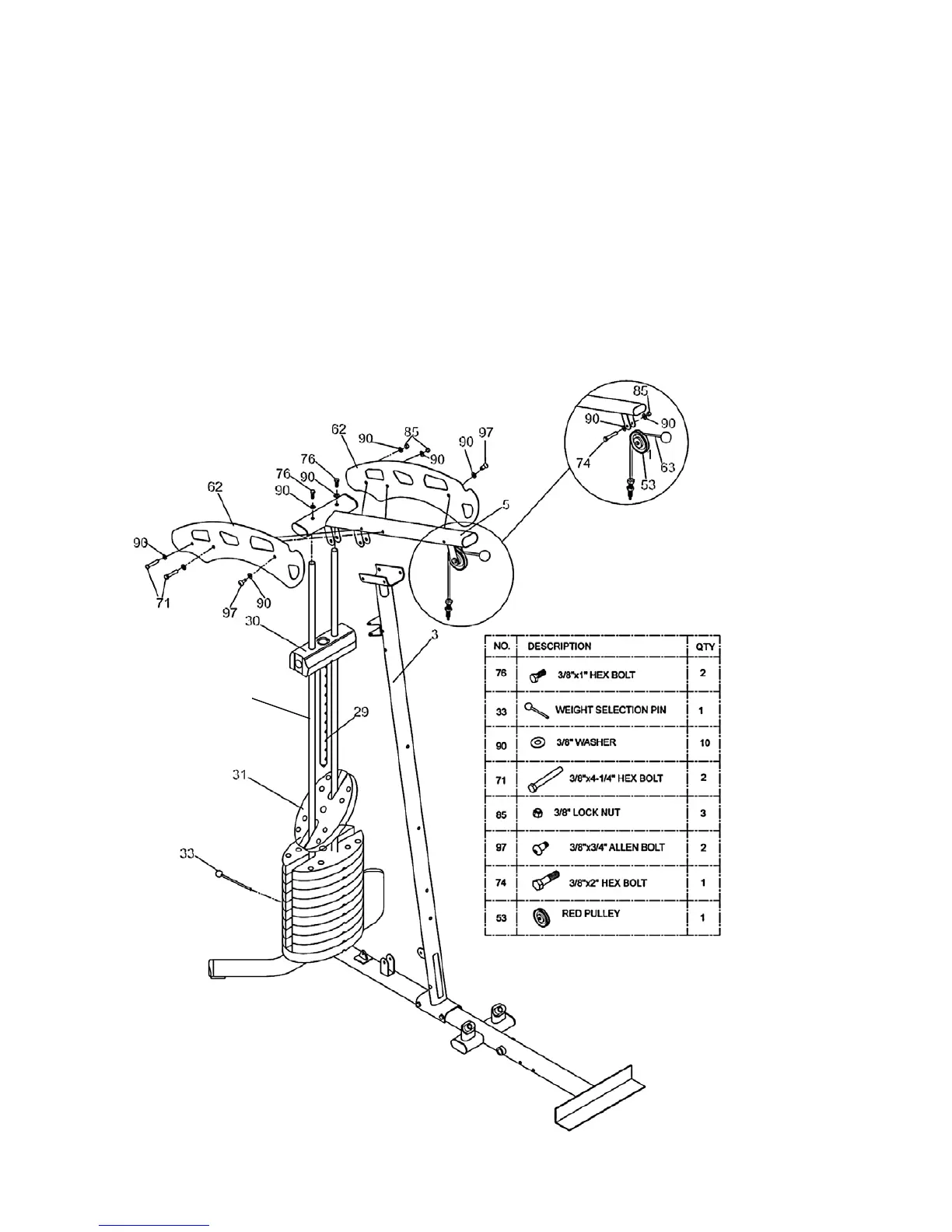

STEP 3
• SlideTopPlate(30)andWeightPlateSelectionRod(29)up,andthenslidetenWeightPlates(31)intoplaceasshown.
• SlidetheWeightSelectionPin(33)intotheweightplates.
• AttachTopBeam(5)tothetopoftheGuideRods(4)usingtwo3/8”x1”HexBolts(76)andtwo3/8”Washers(90).
• PlaceTopBeam(5)ontotheVerticalPost(3)asshown.
• WiththeUpperCable(63)inthegrooveofRedPulley(53),installthepulleyintothebracketofTopBeam(5)using
 one3/8”x2”HexBolt(74),two3/8”Washers(90)andone3/8”LockNut(85).
• AttachbothPlates(62)totheTopBeam(5)usingtwo3/8”x4-1/4”HexBolts(71),two3/8”x3/4”AllenBolts(97),six3/8”
 Washers(90)andtwo3/8”LockNuts(85).
4
