Trophy 2909 Walkaround - Chapter 2: Locations; Exterior Views; Hull Views

9
2902 Walkaround • Owner’s Manual Supplement
Chapter 2: Locations
Exterior Views
Hull Views

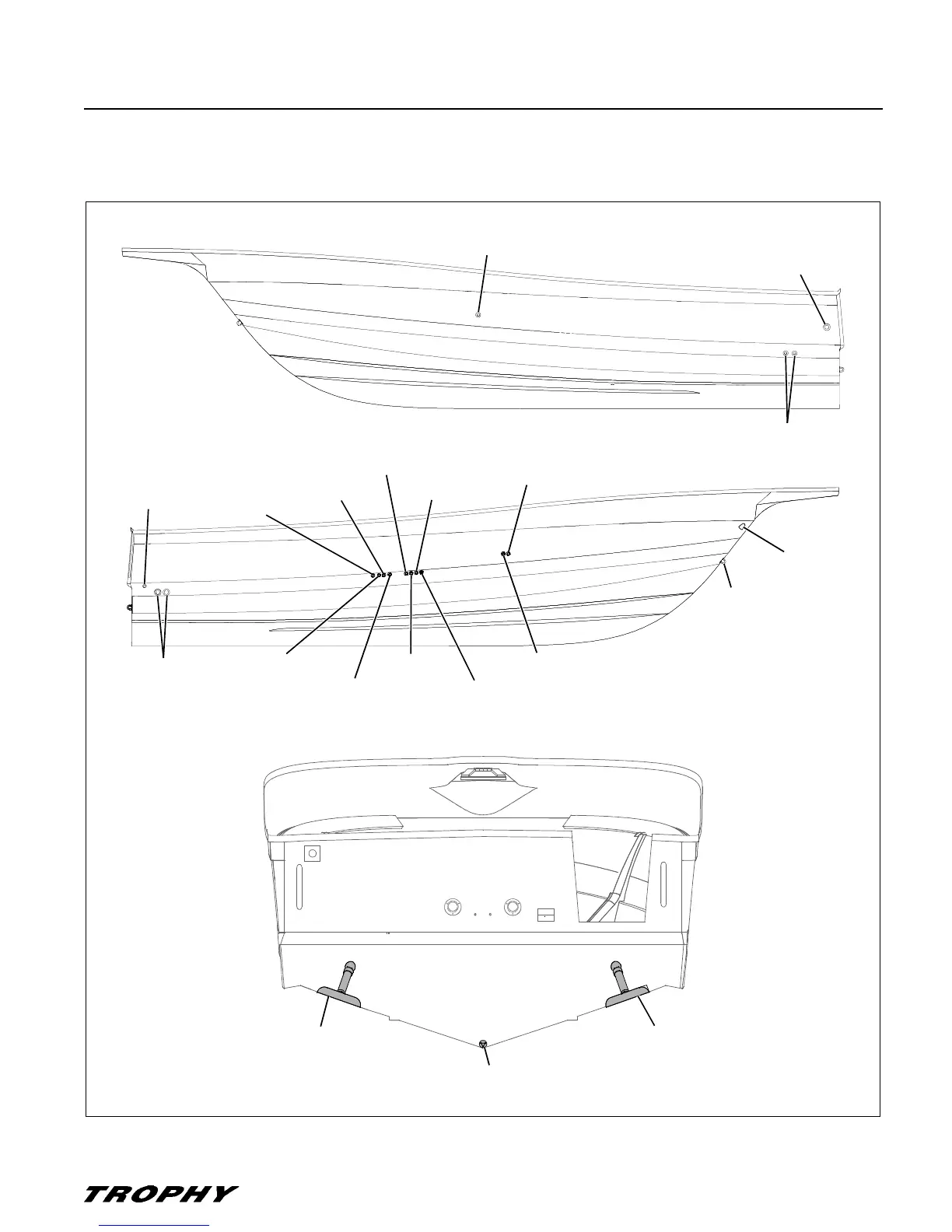

STARBOARD HULLSIDE
GARBOARD
DRAIN
TRIM
TAB
TRIM
TAB
TRANSOM
PORT HULLSIDE
GALLEY DRAIN
AFT BILGE, BAITWELL
& FISH LOCKER DRAIN
COCKPIT DRAINS
COCKPIT DRAINS
BAITWELL DRAIN
ANCHOR LOCKER
DRAIN
BOW EYE
HEAD SINK
DRAIN
WATER HEATER
DRAIN
AIR CONDITIONER
DRAIN (IF EQUIPPED)
COCKPIT
SINK DRAIN
SHOWER
DRAIN
FORWARD BILGE
DRAIN
AIR CONDITIONER
DRAIN (IF EQUIPPED)
WATER TANK
VENT
HOLDING TANK
VENT
MACERATOR
(IF EQUIPPED)
