Bimini Top (If Equipped)
Installing the Bimini Top

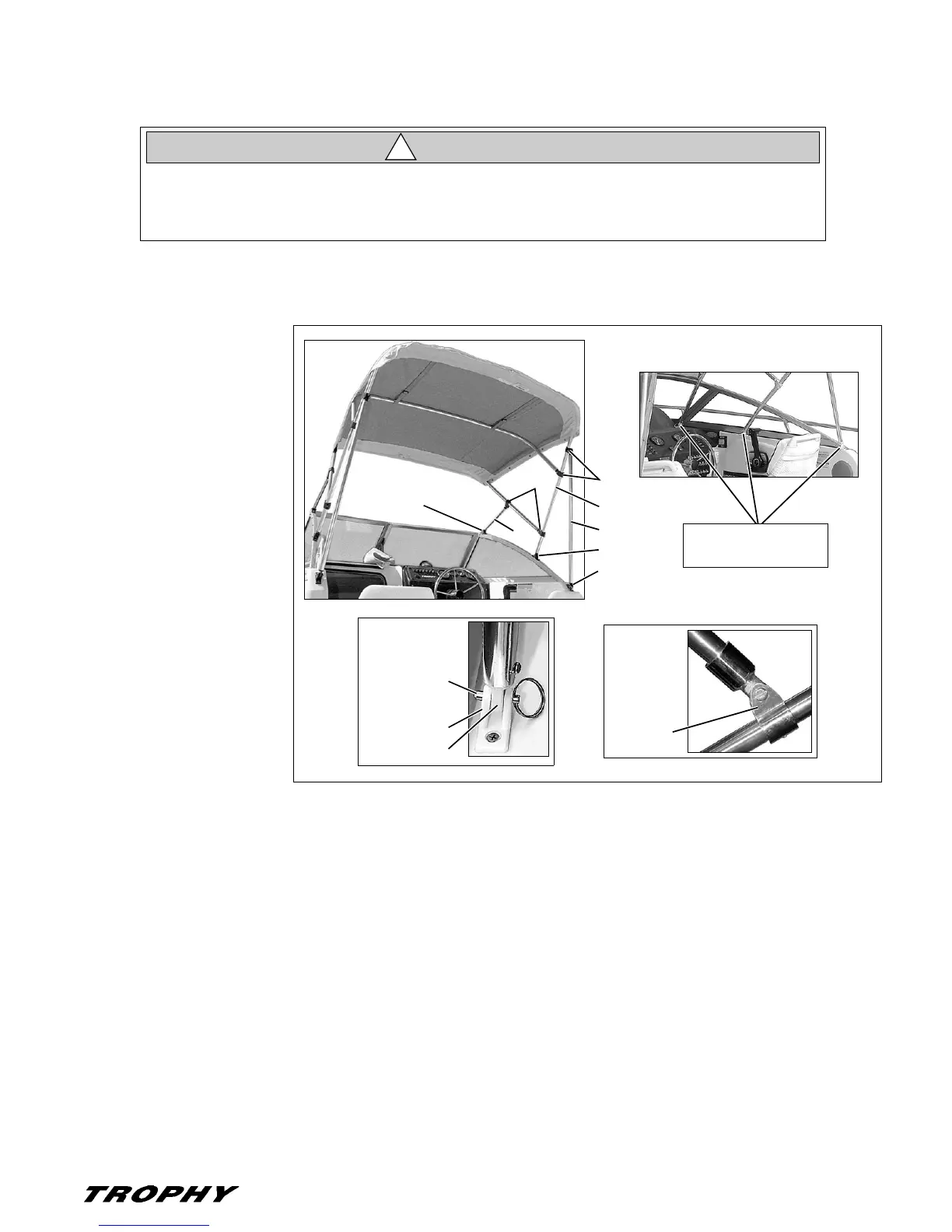

1. Slide the end eyes of the
main bow (A) into the
aft hinges (B) on the side
windshield frame and
secure with the pins.
2. Slide the end eyes of the
forward braces (C) into
the forward hinges (D)
on the side windshield
frame and secure with
the pins.
3. Slide the end eyes of the
aft braces (E) into the
deck hinges (F) and
secure with the pins.
• The jawslides (G) are
preset during manufac-
turing and should not
need to be adjusted.
• Before attempting to
adjust the jaw slide posi-
tions, obtain the correct
measurements from your
selling dealer.
PRODUCT or PROPERTY DAMAGE HAZARD!
• Canvas tops are not designed to withstand speeds over 45 MPH.
• Take down and securely stow the canvas top before transporting your boat by road.
CAUTION
!
G
C
D
E
F
A
B
END EYE
SECURING PIN
DECK HINGE
JAW SLIDE
NOTE:
SOME HINGES MAY BE
LOCATED ON DECK
G
