Operation

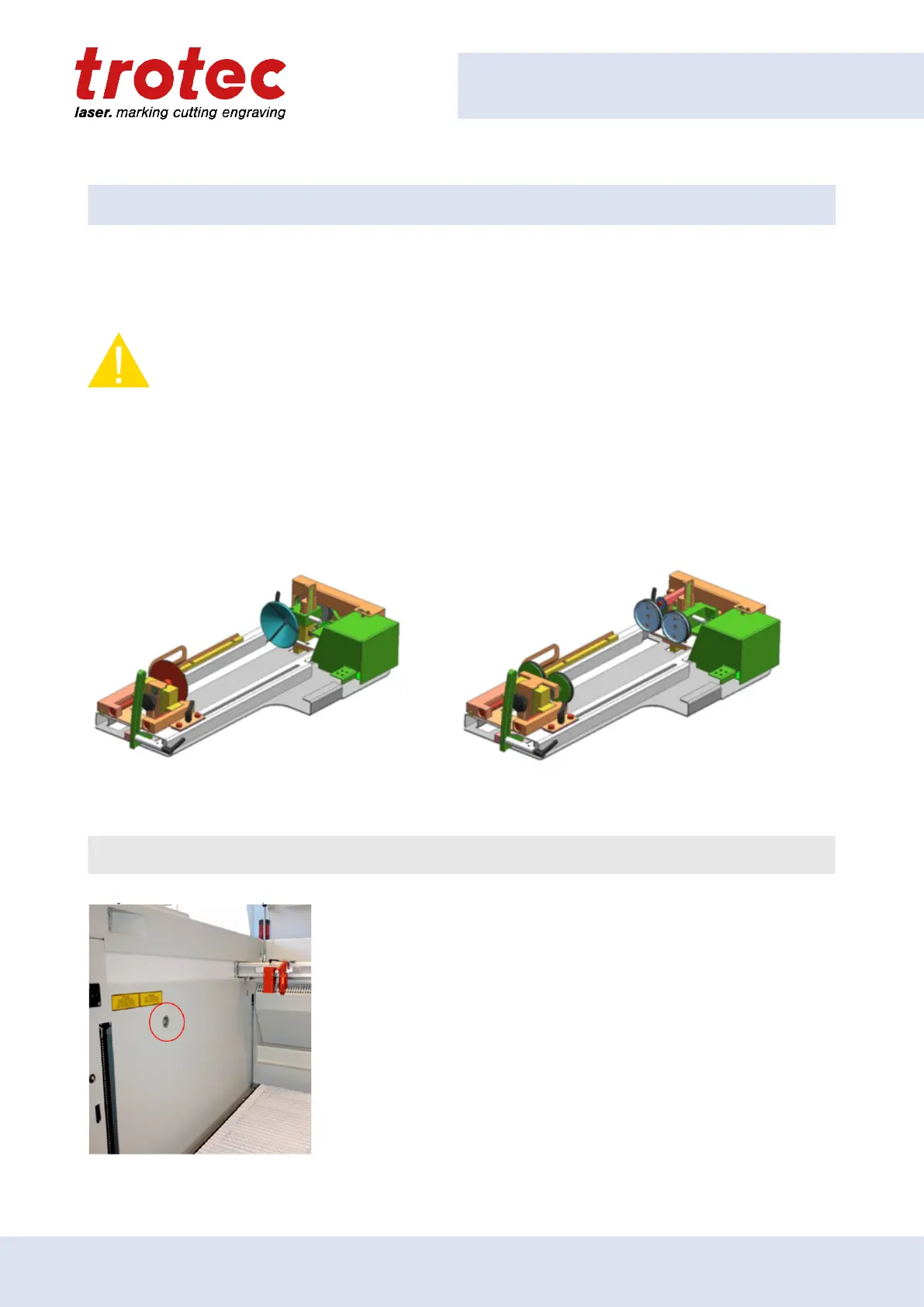

7.8 Rotary attachment (option)
The Rotary attachment is used to engrave cylindrical workpieces. Upon selection of the option "Rotary
attachment" in the JobControl® software and entering the diameter of the object to be engraved, the image
size will automatically be automatically adjusted to the diameter of the workpiece to be processed.
Caution
Damage to electronics.
Inserting or removing the Rotary attachment while the machine is turned on may irreparably
damage the electronics.
Switch off the machine before inserting or removing the Rotary attachment.
Rotary attachment with cones: Rotary attachment with rolls:
Engraving of cylindrical objects with a diameter of up
to 270 mm, a length of up to 760 mm and a maximum
weight of 3 kg.
Engraving of cylindrical objects with a diameter of up
to 180 mm, a length of up to 960 mm and a maximum
weight of 10 kg.
Figure 1: Rotary attachment with cones Figure 2: Rotary attachment with rolls
7.8.1 Installation and commissioning of the rotary attachment
1. A working table must be mounted and positioned at the lowest
position. The laser machine must be switched off.
2. Place the rotary attachment onto the working table using the
existing insertion handles.
3. Position the rotary attachment so that the brackets of the rotary
snap to the ruler correctly.
4. Connect the connection cable of the rotary attachment to the
connector on the left front side of the housing.
75
