MODELS34023, 34323 AND34323C
(VARIABLESPEEDWITH ELECTRICSTART)
Operator Presence
ControlBar
EngineSpeed
Lever
EngineIgnition
Keyswitch
Wheel DriveLever&
Wheel Speed
AdjustmentKnob
In addition to the features and
controls shown on Page 10,
Models 34023, 34323 and 34323C
have the features and controls
described below.
Engine Speed Lever
This control (see Figure 3-5) regu-
lates the speed of the engine and
the blade. For best mower perfor-
mance, run the engine at FAST
speed. Using this control is fully
described in the Operation
Section.
Operator Presence Control
Bar
This model is equipped with an
Operator Presence Control Bar
(see Figure 3-5). When this con-
trol is released during mower
operation, the mower engine,
blade, and wheels stop. Using this
control is fully described in the
Operation Section.
Wheel Drive Lever

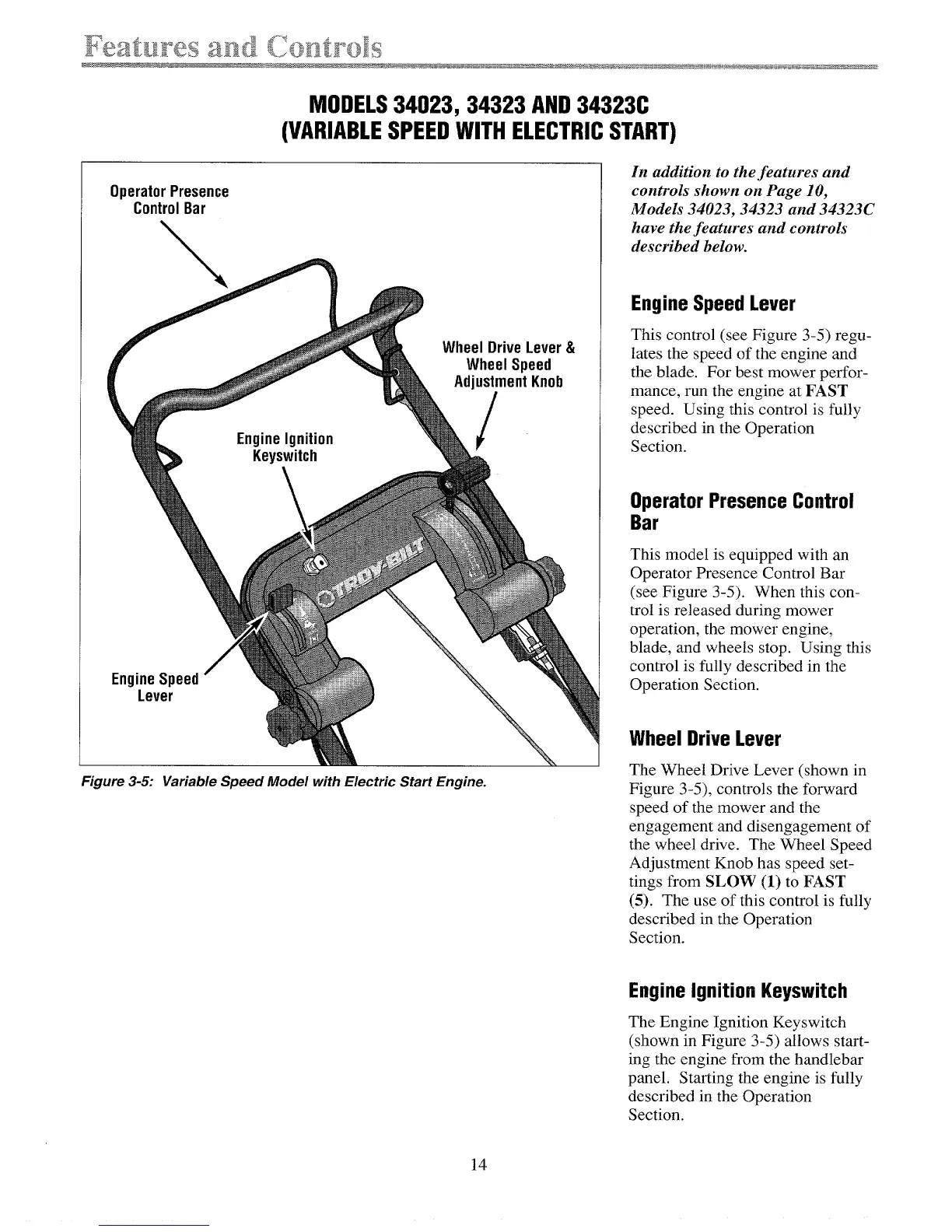

Figure 3-5: Variable Speed Model with Electric Start Engine.
The Wheel Drive Lever (shown in
Figure 3-5), controls the forward
speed of the mower and the
engagement and disengagement of
the wheel drive. The Wheel Speed
Adjustment Knob has speed set-
tings from SLOW (1) to FAST
(5). The use of this control is fully
described in the Operation
Section.
Engine ignition Keyswitch
The Engine Ignition Keyswitch
(shown in Figure 3-5) allows start-
ing the engine from the handlebar
panel. Starting the engine is fully
described in the Operation
Section.
