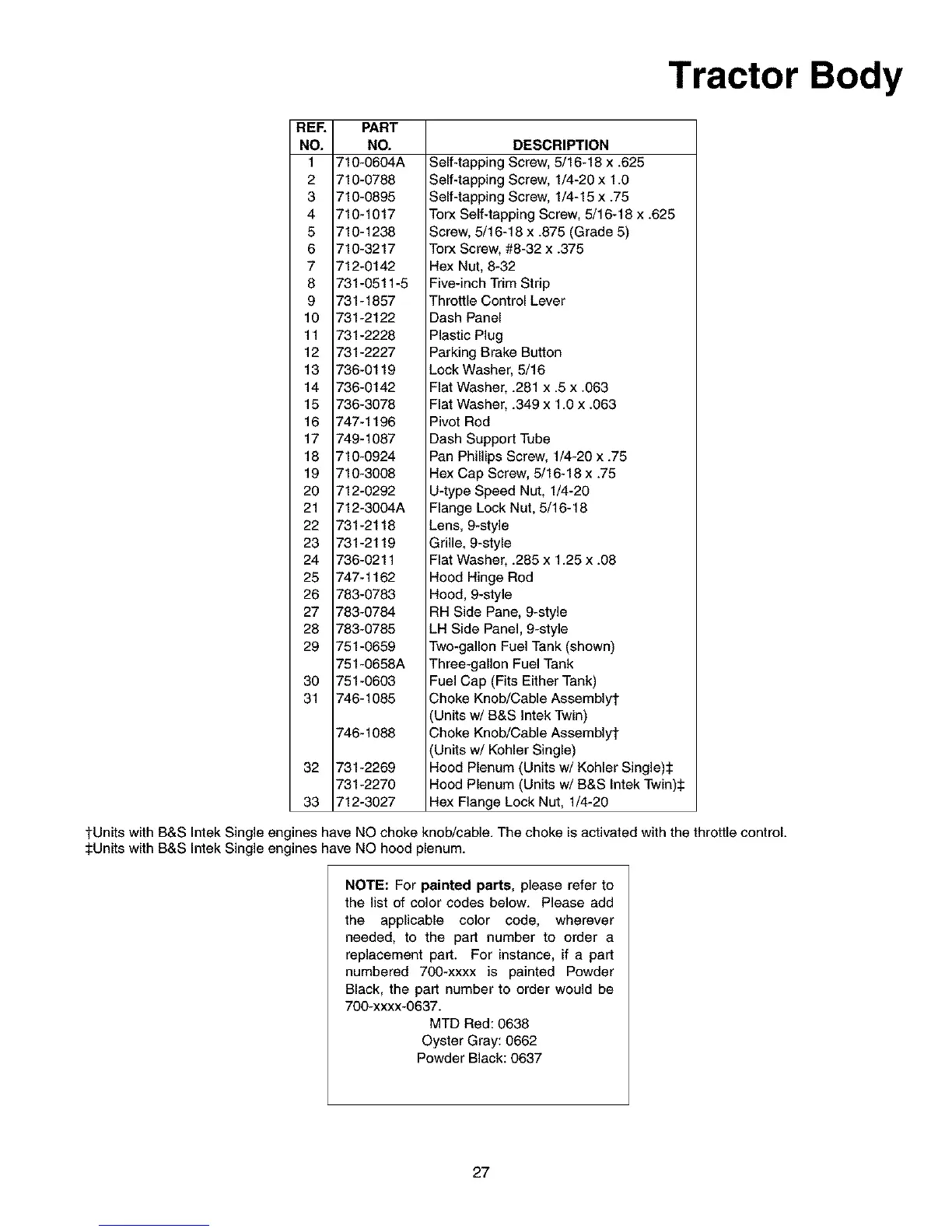

Tractor Body
RED PART
NO. NO.
1 710-0604A
2 710-0788
3 710-0895
4 710-1017
5 710-1238
6 710-3217
7 712-0142
8 731-0511-5
9 731-1857
10 731-2122
11 731-2228
12 731-2227
13 736-0119
14 736-0142
15 736-3078
16 747-1196
17 749-1087
18 710-0924
19 710-3008
20 712-0292
21 712-3004A
22 731-2118
23 731-2119
24 736-0211
25 747-1162
26 783-0783
27 783-0784
28 783-0785
29 751-0659
751-0658A
30 751-0603
31 746-1085
746-1088
32 731-2269
731-2270
33 712-3027
DESCRIPTION
Self-tapping Screw, 5/16-18 x .625
Self-tapping Screw, 1/4-20 x 1.0
Self-tapping Screw, 1/4-15 x .75
Torx Self-tapping Screw, 5/16-18 x .625
Screw, 5/16-18 x .875 (Grade 5)
Torx Screw, #8-32 x .375
Hex Nut, 8-32
Five-inch Trim Strip
Throttle Control Lever
Dash Panel
Plastic Plug
Parking Brake Button
Lock Washer, 5/16
Flat Washer, .281 x .5 x .063
Flat Washer, .349 x 1.0 x .063
Pivot Rod
Dash Support Tube
Pan Phillips Screw, 1/4-20 x .75
Hex Cap Screw, 5/16-18 x .75
U-type Speed Nut, 1/4-20
Flange Lock Nut, 5/16-18
Lens, 9-style
Grille, 9-style
Flat Washer, .285 x 1.25 x .08
Hood Hinge Rod
Hood, 9-style
RH Side Pane, 9-style
LH Side Panel, 9-style
Two-gallon Fuel Tank (shown)
Three-gallon Fuel Tank
Fuel Cap (Fits Either Tank)
Choke Knob/Cable Assemblyl-
(Units w/B&S tntek Twin)
Choke Knob/Cable Assemblyl-
(Units w/Kohler Single)
Hood Plenum (Units w/Kohler Single)$
Hood Plenum (Units w/B&S Intek Twin)$
Hex Flange Lock Nut, 1/4-20
lUnits with B&S Intek Single engines have NO choke knob/cable. The choke is activated with the throttle control.
SUnits with B&S Intek Single engines have NO hood plenum.
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Powder
Black, the part number to order would be
700-xxxx-0637.
MTD Red: 0638
Oyster Gray: 0662
Powder Black: 0637
27
