Troy-Bilt 609 - Electrical System

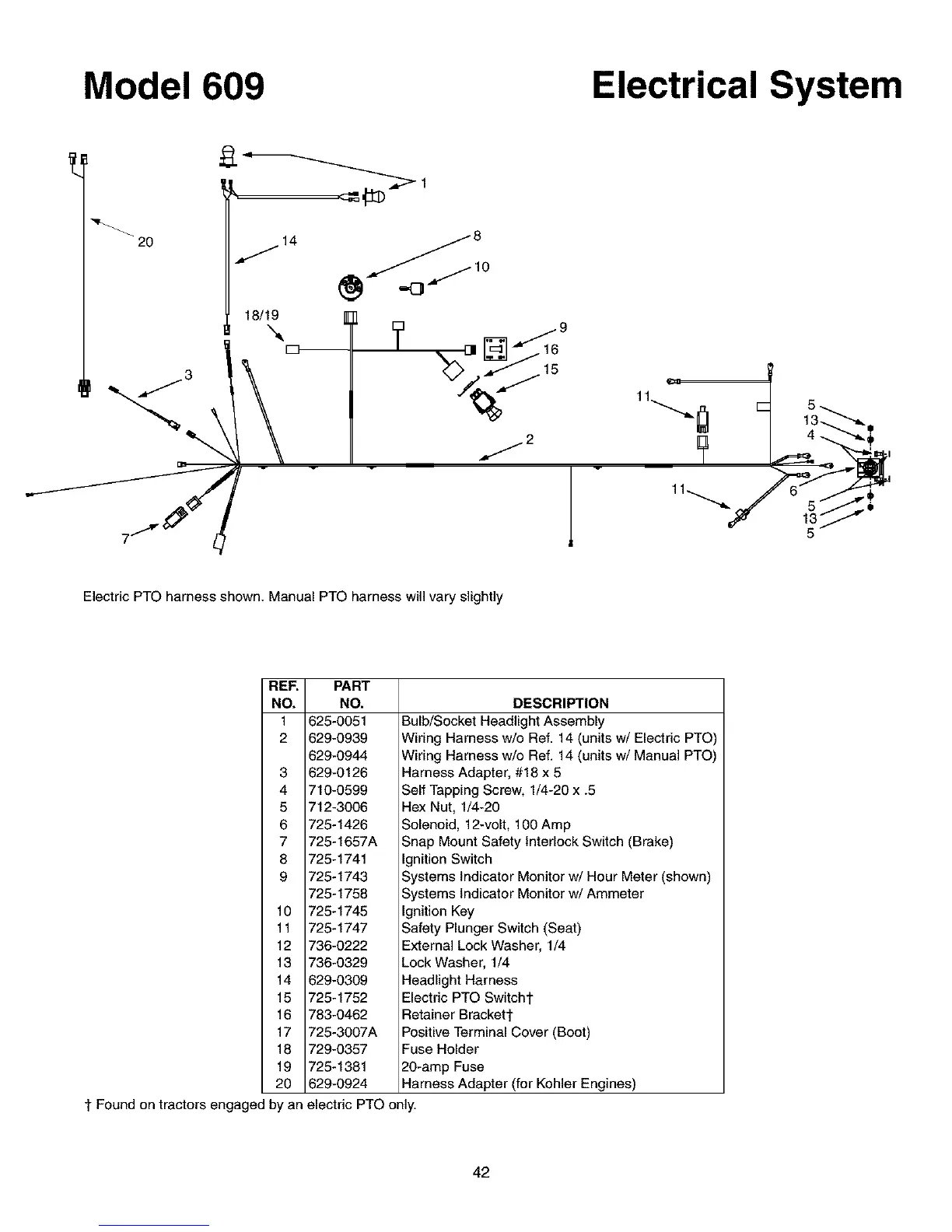

Model 609 Electrical System
j14
18/19
1
Electric PTO harness shown. Manual PTO harness will vary slightly
t Found on tractors engaged
RED PART
NO. NO.
1 625-0051
2 629-0939
629-0944
3 629-0126
4 710-0599
5 712-3006
6 725-1426
7 725-1657A
8 725-1741
9 725-1743
725-1758
10 725-1745
11 725-1747
12 736-0222
13 736-0329
14 629-0309
15 725-1752
16 783-0462
17 725-3007A
18 729-0357
19 725-1381
20 629-0924
DESCRIPTION
Bulb/Socket Headlight Assembly
Wiring Harness w/o Ref. 14 (units w/Electric PTO)
Wiring Harness w/o Ref. 14 (units w/Manual PTO)
Harness Adapter, #18 x 5
Self Tapping Screw, 1/4-20 x .5
Hex Nut, 1/4-20
Solenoid, 12-volt, 100 Amp
Snap Mount Safety Interlock Switch (Brake)
Ignition Switch
Systems Indicator Monitor w/Hour Meter (shown)
Systems Indicator Monitor w/Ammeter
Ignition Key
Safety Plunger Switch (Seat)
External Lock Washer, 1/4
Lock Washer, 1/4
Headlight Harness
Electric PTO Switcht
Retainer Brackett
Positive Terminal Cover (Boot)
Fuse Holder
20-amp Fuse
Harness Adapter (for Kohler Engines)
by an electric PTO only.
