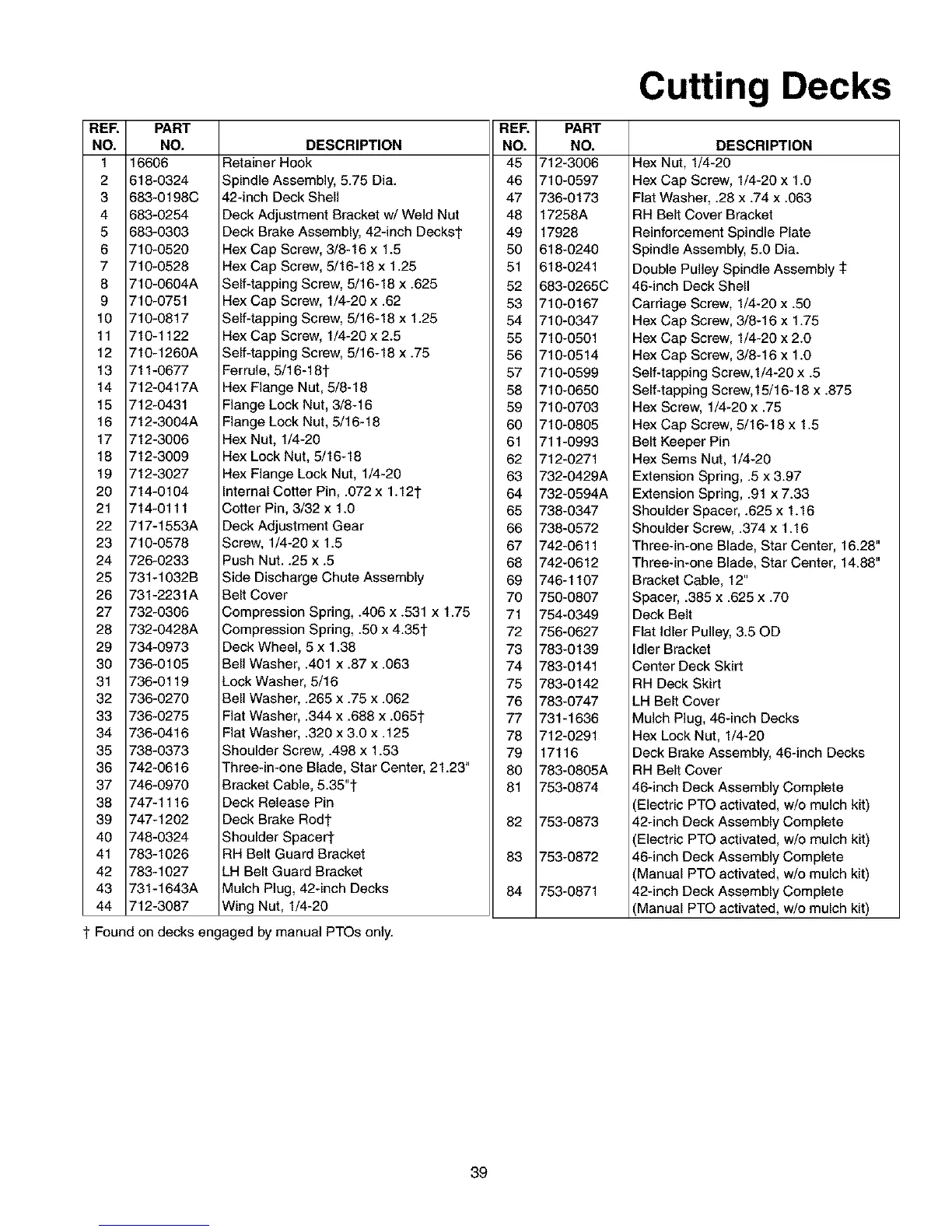

Troy-Bilt 609 - Cutting Decks

Cutting Decks
RED PART
NO. NO.
1 16606
2 618-0324
3 683-0198C
4 683-0254
5 683-0303
6 710-0520
7 710-0528
8 710-0604A
9 710-0751
10 710-0817
11 710-1122
12 710-1260A
13 711-0677
14 712-0417A
15 712-0431
16 712-3004A
17 712-3006
18 712-3009
19 712-3027
20 714-0104
21 714-0111
22 717-1553A
23 710-0578
24 726-0233
25 731-1032B
26 731-2231A
27 732-0306
28 732-0428A
29 734-0973
30 736-0105
31 736-0119
32 736-0270
33 736-0275
34 736-0416
35 738-0373
36 742-0616
37 746-0970
38 747-1116
39 747-1202
40 748-0324
41 783-1026
42 783-1027
43 731-1643A
44 712-3087
DESCRIPTION
Retainer Hook
Spindle Assembly, 5.75 Dia.
42-inch Deck Shell
Deck Adjustment Bracket w/Weld Nut
Deck Brake Assembly, 42-inch Deckst
Hex Cap Screw, 3/8-16 x 1.5
Hex Cap Screw, 5/16-18 x 1.25
Self-tapping Screw, 5/16-18 x .625
Hex Cap Screw, 1/4-20 x .62
Self-tapping Screw, 5/16-18 x 1.25
Hex Cap Screw, 1/4-20 x 2.5
Self-tapping Screw, 5/16-18 x .75
Ferrule, 5/16-18t
Hex Flange Nut, 5/8-18
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 1/4-20
Hex Lock Nut, 5/16-18
Hex Flange Lock Nut, 1/4-20
Internal Cotter Pin, .072 x 1.12t
Cotter Pin, 3/32 x 1.0
Deck Adjustment Gear
Screw, 1/4-20 x 1.5
Push Nut..25 x .5
Side Discharge Chute Assembly
Belt Cover
Compression Spring, .406 x .531 x 1.75
Compression Spring, .50 x 4.35t
Deck Wheel, 5 x 1.38
Bell Washer, .401 x .87 x .063
Lock Washer, 5/16
Bell Washer, .265 x .75 x .062
Flat Washer, .344 x .688 x .065t
Flat Washer, .320 x 3.0 x. 125
Shoulder Screw, .498 x 1.53
Three-in-one Blade, Star Center, 21.23"
Bracket Cable, 5.35"t
Deck Release Pin
Deck Brake Rodt
Shoulder Spaced
RH Belt Guard Bracket
LH Belt Guard Bracket
Mulch Plug, 42-inch Decks
Wing Nut, 1/4-20
REP.
NO.
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
PART
NO.
712-3006
710-0597
736-0173
17258A
17928
618-0240
618-0241
683-0265C
710-0167
710-0347
710-0501
710-0514
710-0599
710-0650
710-0703
710-0805
711-0993
712-0271
732-0429A
732-0594A
738-0347
738-0572
742-0611
742-0612
746-1107
750-0807
754-0349
756-0627
783-0139
783-0141
783-0142
783-0747
731-1636
712-0291
17116
783-0805A
753-0874
753-0873
753-0872
753-0871
DESCRIPTION
Hex Nut, 1/4-20
Hex Cap Screw, 1/4-20 x 1.0
Flat Washer, .28 x .74 x .063
RH Belt Cover Bracket
Reinforcement Spindle Plate
Spindle Assembly, 5.0 Dia.
Double Pulley Spindle Assembly :1:
46-inch Deck Shell
Carriage Screw, 1/4-20 x .50
Hex Cap Screw, 3/8-16 x 1.75
Hex Cap Screw, 1/4-20 x 2.0
Hex Cap Screw, 3/8-16 x 1.0
Self-tapping Screw, I/4-20 x .5
Self-tapping Screw,15/16-18 x .875
Hex Screw, 1/4-20 x .75
Hex Cap Screw, 5/16-18 x 1.5
Belt Keeper Pin
Hex Sems Nut, 1/4-20
Extension Spring, .5 x 3.97
Extension Spring, .91 x 7.33
Shoulder Spacer, .625 x 1.16
Shoulder Screw, .374 x 1.16
Three-in-one Blade, Star Center, 16.28"
Three-in-one Blade, Star Center, 14.88"
Bracket Cable, 12"
Spacer, .385 x .625 x .70
Deck Belt
Flat Idler Pulley, 3.50D
Idler Bracket
Center Deck Skirt
RH Deck Skirt
LH Belt Cover
Mulch Plug, 46-inch Decks
Hex Lock Nut, 1/4-20
Deck Brake Assembly, 46-inch Decks
RH Belt Cover
46-inch Deck Assembly Complete
(Electric PTO activated, w/o mulch kit)
42-inch Deck Assembly Complete
(Electric PTO activated, w/o mulch kit)
46-inch Deck Assembly Complete
(Manual PTO activated, w/o mulch kit)
42-inch Deck Assembly Complete
(Manual PTO activated, w/o mulch kit)
t Found on decks engaged by manual PTOs only.
