RER PART
NO. NO.
1 683-0304
2 710-0604A
3 783-0726A
4 783-0727
5 783-0728
6 710-0514
7 711-1409A
8 711-1408
9 712-0240
10 712-0241
11 712-0431
12 712-0459
13 712-3004A
14 717-1550A
15 717-1554
16 723-0448A
17 736-0169
18 736-3084
19 738-1001
20 741-0475
21 741-0656
22 738-0372
23 631-0027
24 731-0220
25 638-0019
638-0021
26 638-0020
638-0022
27 683-0128A

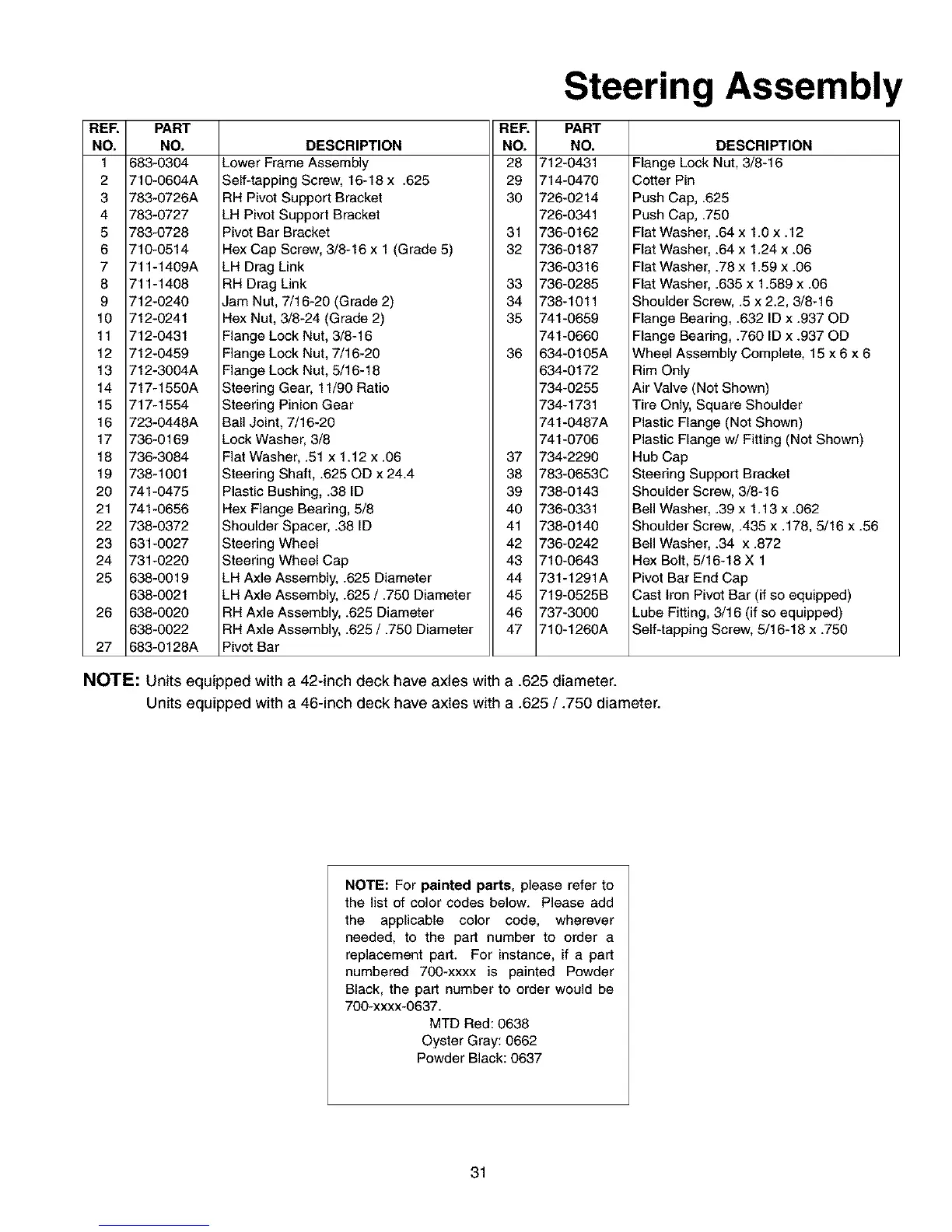

Steering Assembly
REF. PART
DESCRIPTION NO. NO.
Lower Frame Assembly 28 712-0431
Self-tapping Screw, 16-18x .625 29 714-0470
RH Pivot Support Bracket 30 726-0214
LH Pivot Support Bracket 726-0341
Pivot Bar Bracket 31 736-0162
Hex Cap Screw, 3/8-16 x 1 (Grade 5) 32 736-0187
LH Drag Link 736-0316
RH Drag Link 33 736-0285
Jam Nut, 7/16-20 (Grade 2) 34 738-1011
Hex Nut, 3/8-24 (Grade 2) 35 741-0659
Flange Lock Nut, 3/8-16 741-0660
Flange Lock Nut, 7/16-20 36 634-0105A
Flange Lock Nut, 5/16-18 634-0172
Steering Gear, 11/90 Ratio 734-0255
Steering Pinion Gear 734-1731
Ball Joint, 7/16-20 741-0487A
Lock Washer, 3/8 741-0706
Flat Washer, .51 x 1.12 x .06 37 734-2290
Steering Shaft, .625 OD x 24.4 38 783-0653C
Plastic Bushing, .38 ID 39 738-0143
Hex Flange Bearing, 5/8 40 736-0331
Shoulder Spacer, .38 ID 41 738-0140
Steering Wheel 42 736-0242
Steering Wheel Cap 43 710-0643
LH Axle Assembly, .625 Diameter 44 731-1291A
LH Axle Assembly, .625 / .750 Diameter 45 719-0525B
RH Axle Assembly, .625 Diameter 46 737-3000
RH Axle Assembly, .625 / .750 Diameter 47 710-1260A
Pivot Bar
DESCRIPTION
Flange Lock Nut, 3/8-16
Cotter Pin
Push Cap, .625
Push Cap, .750
Flat Washer, .64 x 1.0 x .12
Flat Washer, .64 x 1.24 x .06
Flat Washer, .78 x 1.59 x .06
Flat Washer, .635 x 1.589 x .06
Shoulder Screw, .5 x 2.2, 3/8-16
Flange Bearing, .632 ID x .937 OD
Flange Bearing, .760 ID x .937 OD
Wheel Assembly Complete, 15 x 6 x 6
Rim Only
Air Valve (Not Shown)
Tire Only, Square Shoulder
Plastic Flange (Not Shown)
Plastic Flange w/Fitting (Not Shown)
Hub Cap
Steering Support Bracket
Shoulder Screw, 3/8-16
Bell Washer, .39 x 1.13 x .062
Shoulder Screw, .435 x .178, 5/16 x .56
Bell Washer, .34 x .872
Hex Bolt, 5/16-18 X 1
Pivot Bar End Cap
Cast iron Pivot Bar (if so equipped)
Lube Fitting, 3/16 (if so equipped)
Self-tapping Screw, 5/16-18 x .750
NOTE: Units equipped with a 42-inch deck have axles with a .625 diameter.
Units equipped with a 46-inch deck have axles with a .625 / .750 diameter.
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Powder
Black, the part number to order would be
700-xxxx-0637.
MTD Red: 0638
Oyster Gray: 0662
Powder Black: 0637
31
