SECTION 7: CONTROLS
D
C
B
M
A
G
J
K
L

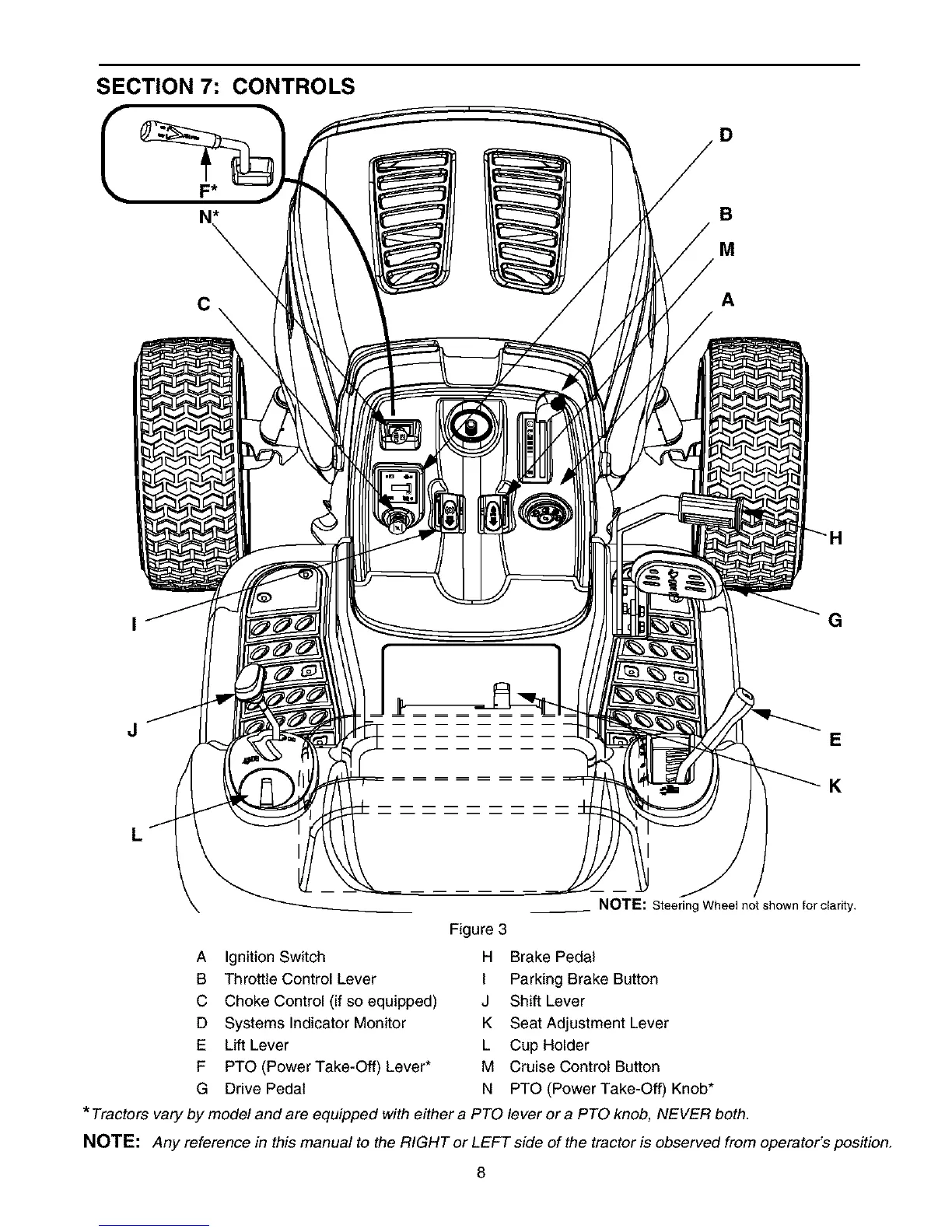

Figure 3
A Ignition Switch
B Throttle Control Lever
C Choke Control (if so equipped)
D Systems Indicator Monitor
E Uft Lever
F PTO (Power Take-Off) Lever*
G Drive Pedal
NOTE: Steering Wheel not shown for clarity.
H Brake Pedal
I Parking Brake Button
J Shift Lever
K Seat Adjustment Lever
L Cup Holder
M Cruise Control Button
N PTO (Power Take-Off) Knob*
* Tractors vary by model and are equipped with either a PTO lever or a PTO knob, NEVER both.
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
