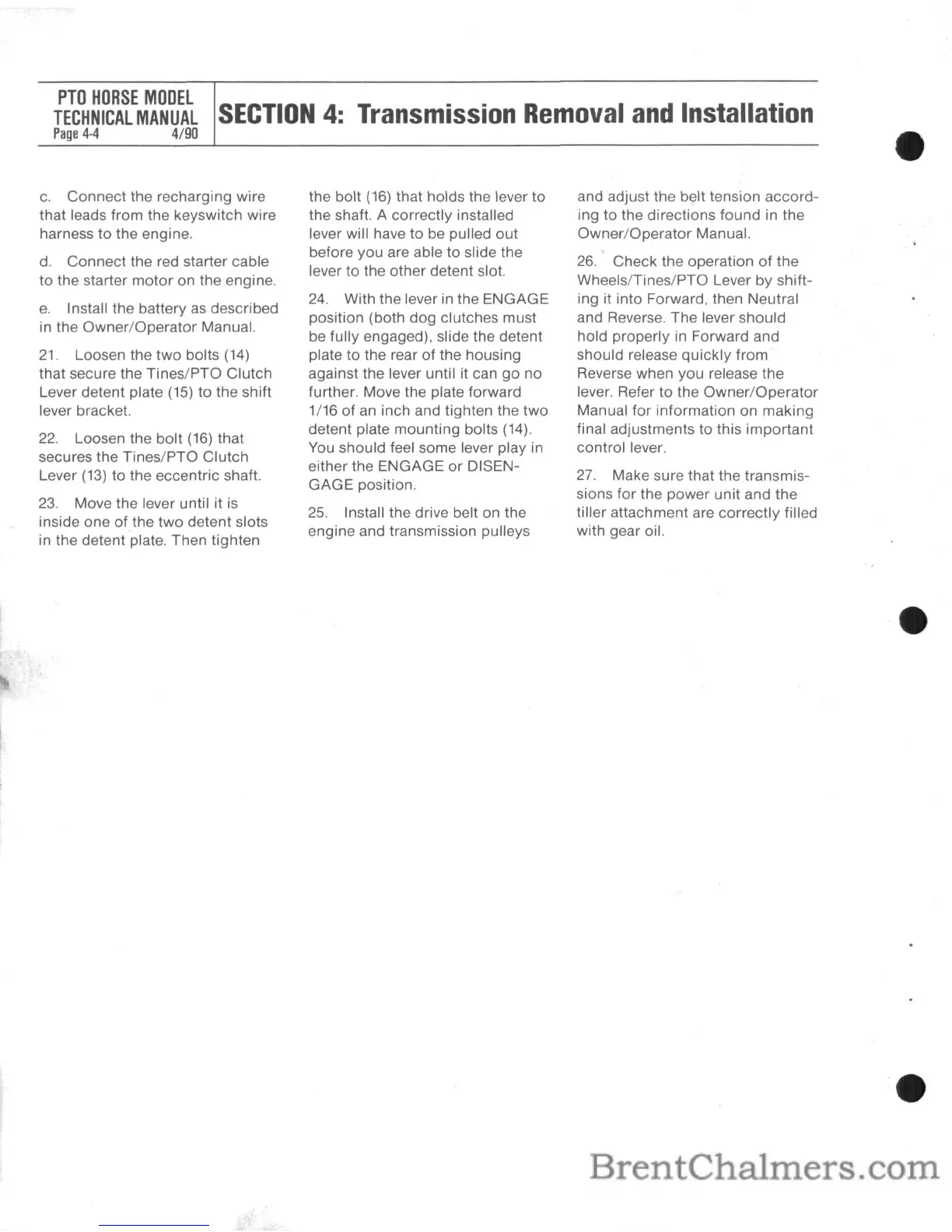

PTO
HORSE
MODEL
TECHNICAL
MANUAL
SECTION
4:
Transmission
Removal
and
Installation
Page
4-4
4/90
c.
Connect the recharging wire
that leads from the keyswitch wire
harness to the engine.
d.
Connect the red starter cable
to the starter
motor
on the engine.
e.
Install the battery
as
described
in the Owner/Operator Manual.
21.
Loosen the
two
bolts
(14)
that secure the Tines/PTO Clutch
Lever detent plate
(15)
to the shift
lever bracket.
22.
Loosen the bolt
(16)
that
secures the Tines/PTO Clutch
Lever
(13)
to the eccentric shaft.
23.
Move the lever until it
is
inside one
of
the two detent slots
in the detent plate. Then tighten
the bolt
(16)
that holds the lever to
the shaft. A correctly installed
lever will have to be pulled out
before you are able to slide the
lever to the other detent slot.
24.
With the lever in the ENGAGE
position (both dog clutches must
be fully engaged), slide the detent
plate to the rear
of
the housing
against the lever until it can go no
further. Move the plate forward
1/16
of
an
inch and tighten the two
detent plate mounting bolts
(14).
You
should feel some lever play in
either the ENGAGE
or
DISEN-
GAGE position.
25.
Install the drive belt on the
engine and transmission pulleys
and adjust the belt tension accord-
ing to the directions found in the
Owner/Operator Manual.
26.
Check the operation
of
the
Wheels/Tines/PTO Lever by shift-
ing it into Forward, then Neutral
and Reverse. The lever should
hold properly in Forward and
should release
quickly
from
Reverse when you release the
lever. Refer
to
the
Owner/Operator
Manual for information on making
final adjustments to this important
control lever.
27.
Make sure that the transmis-
sions
for
the power unit and the
tiller attachment are correctly filled
with gear oil.
.-
