SECTION
5:
PTO
Power
Unit
Transmission
PTO
HORSE
MOOEl
TECHNICAL
MANUAL
Page
5-11
4/90

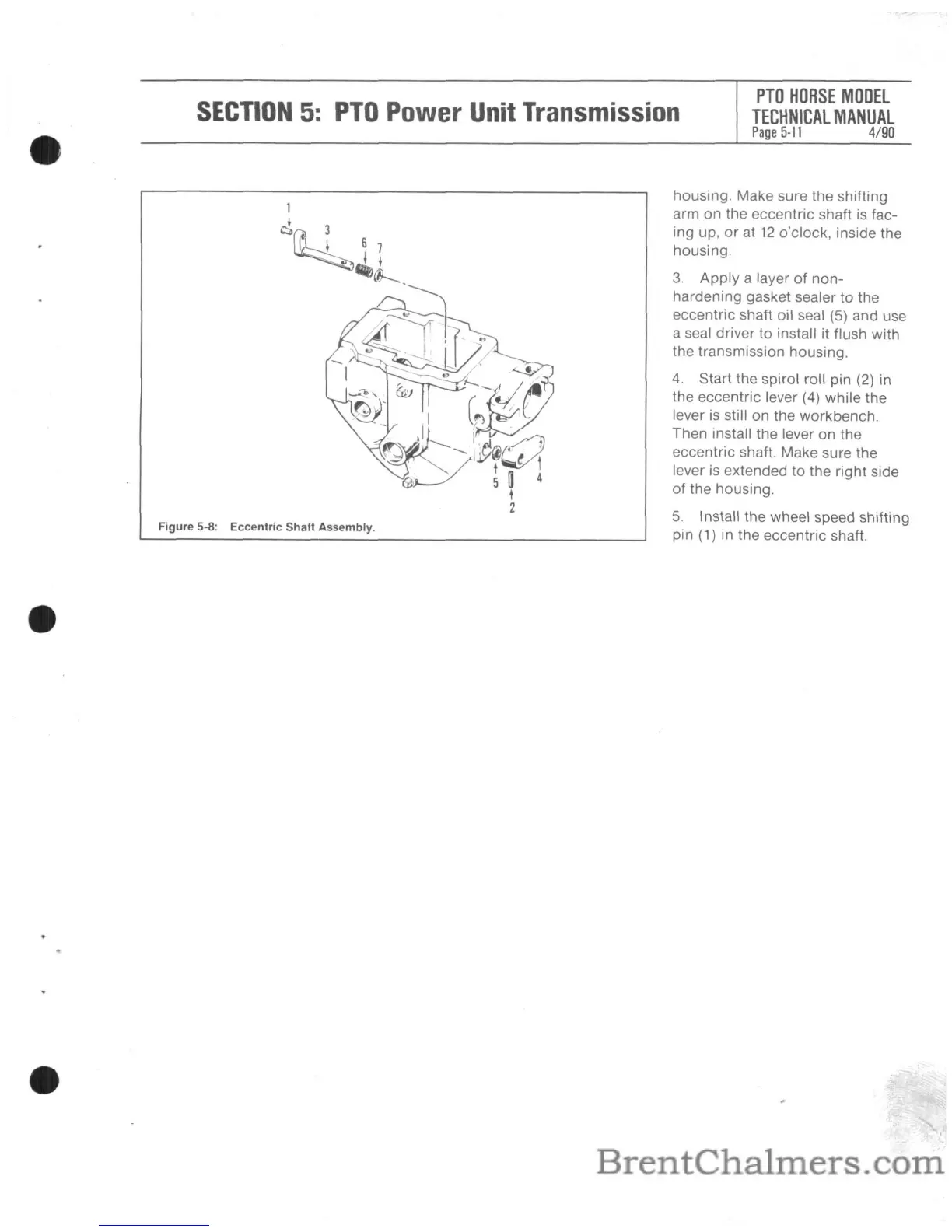

Figure 5-8: Eccentric Shall Assembly.
housing. Make sure the shifting
arm
on
the eccentric shaft is fac-
ing up,
or
at
12
o'clock, inside the
housing.
3.
Apply
a layer
of
non-
hardening gasket sealer to the
eccentric shaft oil seal (5) and use
a seal driver to install it flush with
the transmission housing.
4.
Start the spirol roll pin (2) in
the eccentric lever
(4)
while the
lever is still on the workbench.
Then install the lever on the
eccentric shaft. Make sure the
lever
is
extended
to
the right side
of
the housing.
5.
Install the wheel speed shifting
pin
(1)
in the eccentric shaft.
