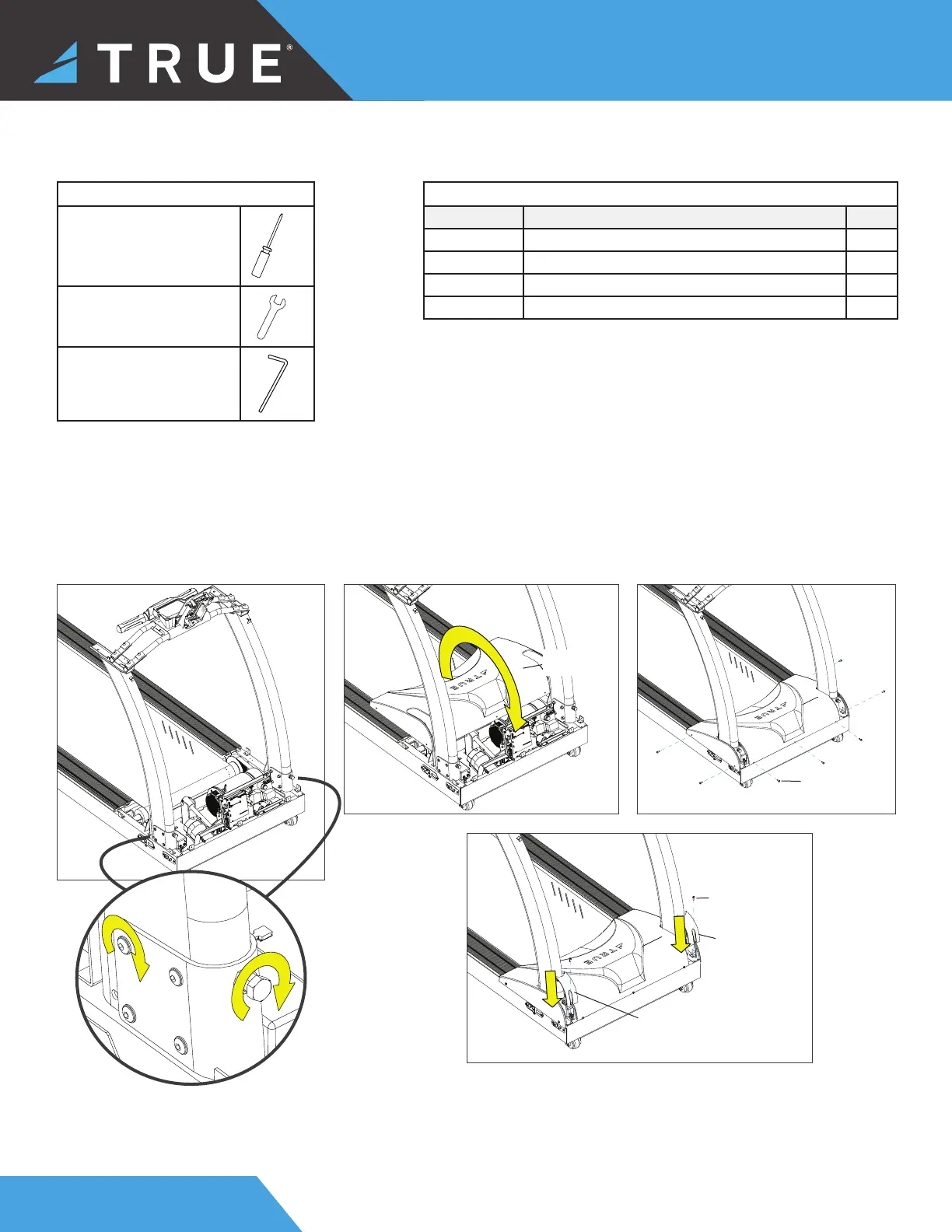

STEP 6—TIGHTEN PEDESTALS AND REATTACH MOTOR AND CAP COVERS
Parts Used in this Step
PART DESCRIPTION QTY
PS0035 SCREW, M5XP0.8X15MM SCA5-15 9
TC4036LBK SUBASSEMBLY, CAP, MOTOR COVER-LH 1
TC4036RBK SUBASSEMBLY, CAP, MOTOR COVER-RH 1
TC4035BK SUBASSEMBLY, MOTOR COVER 1
Tools Used in this Step
#2 Phillips Screwdriver
17mm Wrench
5mm Allen Wrench
PS0035
TC4036LBK
TC4036RBK
PS0035
TC4035BK
1. Using a 5mm allen wrench and a 17mm wrench, fully tighten the hardware on both the left and right pedestals.
2. Slide the motor cover back into place.
3. Using a #2 Phillips screwdriver, secure the motor cover to the frame.
4. Using a #2 Phillips screwdriver, secure the left and right motor cover caps to the frame.
