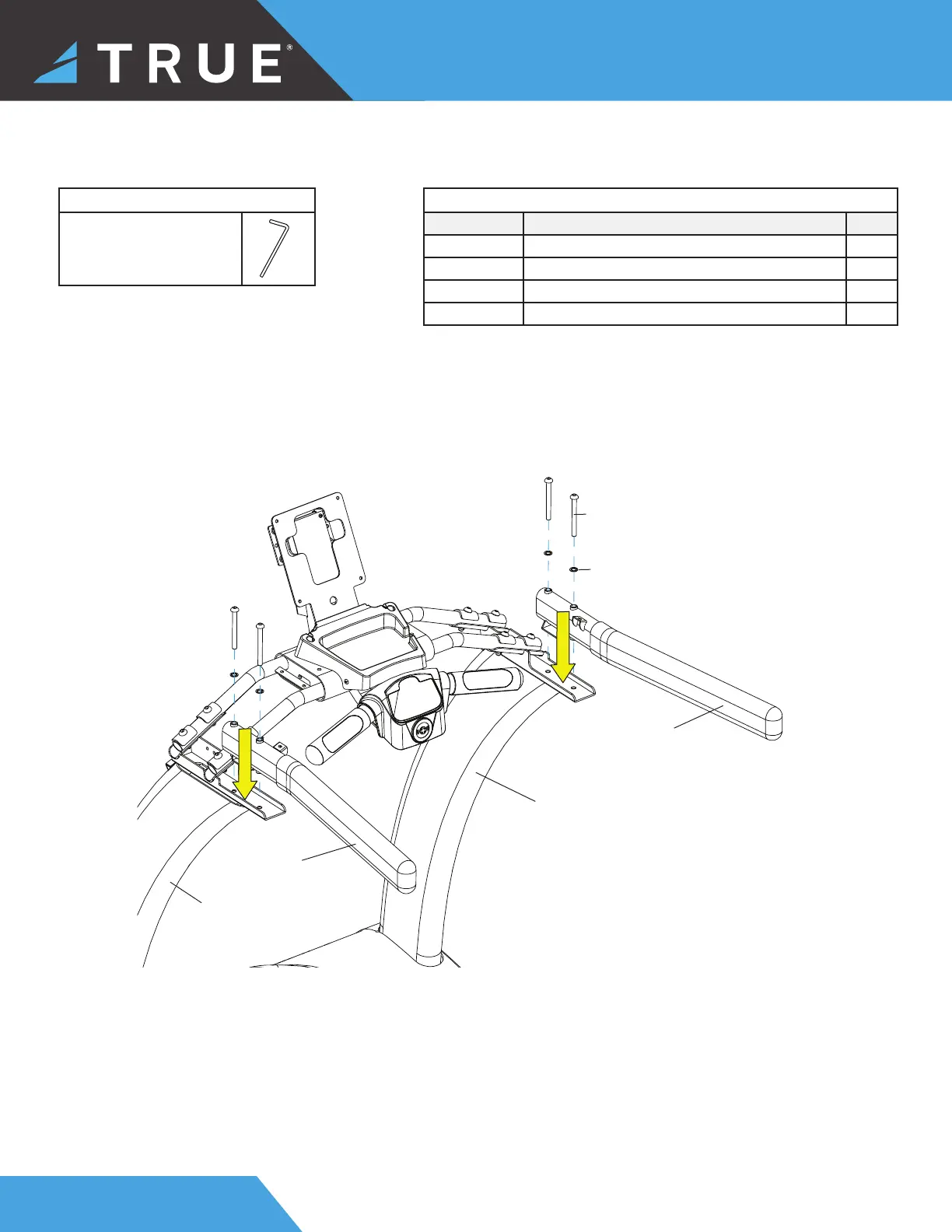

STEP 8—ATTACH LEFT AND RIGHT HANDRAILS
Parts Used in this Step
PART DESCRIPTION QTY
TCS4028 BHCS, M8X1.25X80MM 4
RT0011 WASHER, STAR, INTERNAL TOOTH, M8 4
TC4018L KIT, HANDRAIL SUBASSEMBLY-LH 1
TC4018R KIT, HANDRAIL SUBASSEMBLY-RH 1
Tools Used in this Step
5mm Allen Wrench
1. Finger tighten the left and right handrails to the left and right pedestals.
2. Once the hardware is fi nger tight, use a 5mm allen wrench to securely fasten.
Right
Pedestal
Left
Pedestal
TCS4028
RT0011
TC4018L
TC4018R
To Next Page
