True TC400 - Page 23

23

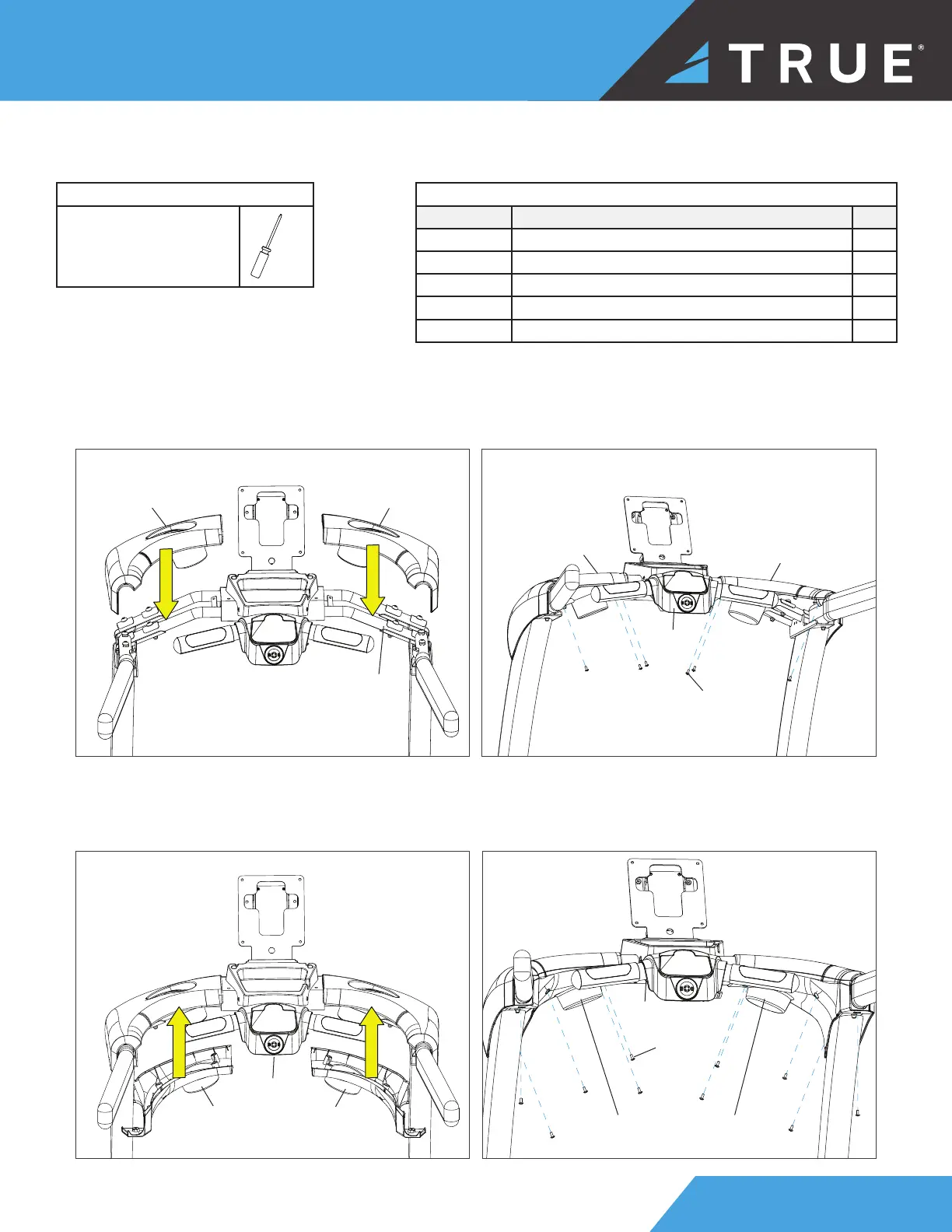

STEP 9—ATTACH SHOULDER COVERS
Parts Used in this Step
PART DESCRIPTION QTY
TCS4029 PHMS, M4X0.7X10MM, PHILLIPS 16
TC4022LBK SUBASSEMBLY, SHOULDER BOTTOM-LH BLACK 1
TC4022RBK SUBASSEMBLY, SHOULDER BOTTOM-RH BLACK 1
TC4023LBK SUBASSEMBLY, SHOULDER TOP-LH BLACK 1
TC4023RBK SUBASSEMBLY, SHOULDER TOP-RH BLACK 1
Tools Used in this Step
#2 Phillips Screwdriver
TC4022LBK
TC4022LBK
TC4023LBK
TC4023LBK
TC4022RBK
TC4022RBK
TC4023RBK
TC4023RBK
TCS4029
TCS4029
1. Place the left and right top shoulder covers onto the console rack.
IMPORTANT! DO NOT pinch the cables.
2. Using a #2 Phillips screwdriver, secure the top shoulder covers in place.
Console
Rack
Console
Rack
Console
Rack
Console
Rack
3. Press the left and right bottom shoulder covers up against the console rack.
IMPORTANT! DO NOT pinch the cables.
4. Using a #2 Phillips screwdriver, secure the bottom shoulder covers in place.
