24
1. Using a #2 Phillips screwdriver, secure the console to the console mast using the hardware pre-assembled to the
console (00567800 // SCREW, M5-.8X12 COMBO PHILLIPS/COMMON TRUSS HEAD - ACG BLACK // QTY 4).
NOTE: If the console also has three screws (00567700 // SCREW, M4-.7 X 12 PPHMS SEMS // QTY 3)
pre-assembled, remove and set aside these screws. They are not used in this installation.
2. Connect the console cables and ensure all cables are routed inside the console mast to avoid pinching the cables.
NOTE: Console cable connections are included in the console owner’s manual.
3. Using a #2 Phillips screwdriver, secure the rear console cover to the console mast.

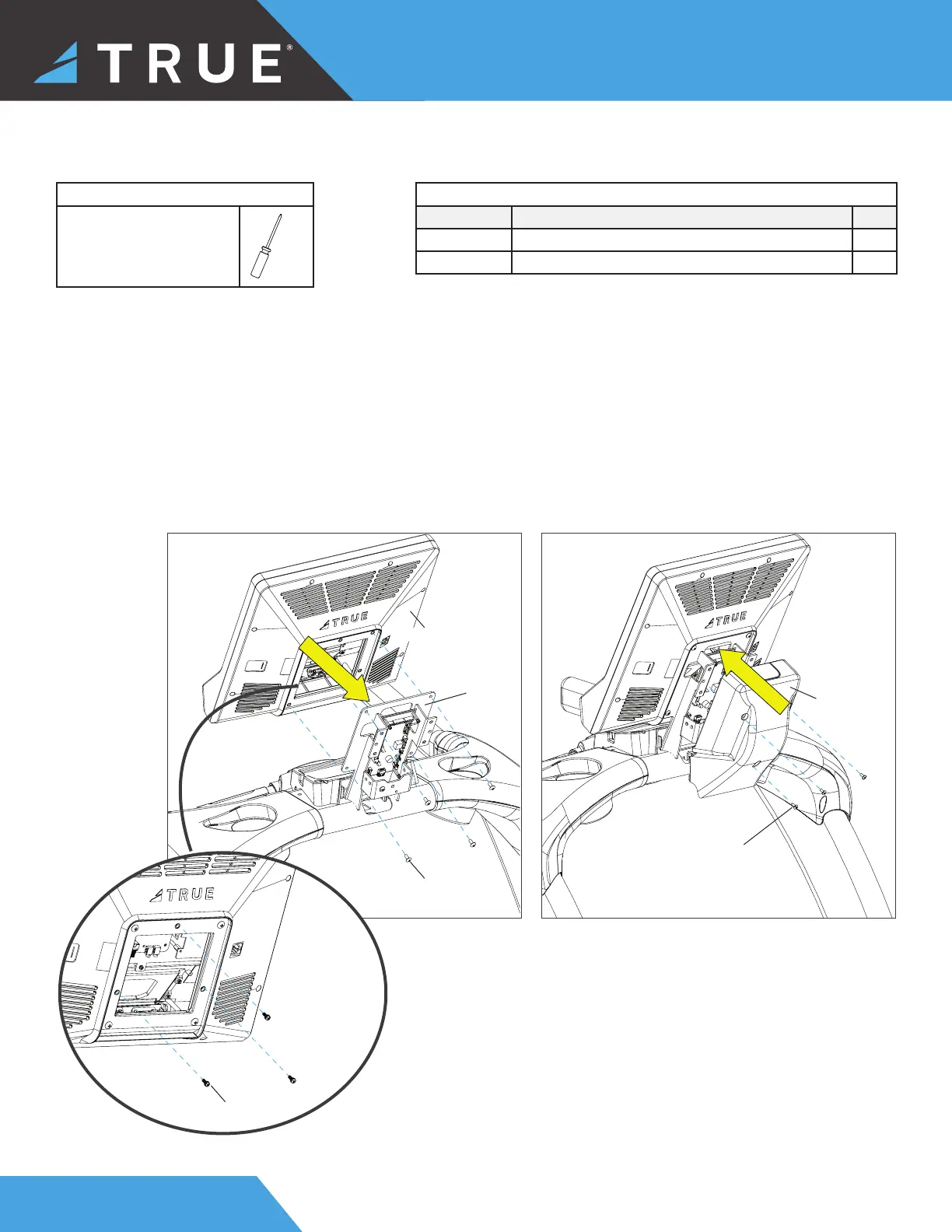

STEP 10—ATTACH CONSOLE AND CONSOLE REAR COVER
Console
Console
Mast
00567800
TC4033BK
TCS4029
Parts Used in this Step
PART DESCRIPTION QTY
TCS4029 PHMS, M4X0.7X10MM, PHILLIPS 3
TC4033BK SUBASSEMBLY, REAR CONSOLE COVER, BLACK 1
Tools Used in this Step
#2 Phillips Screwdriver
00567700
remove and
set aside these
screws, they are
not used in this
installation
