Z8/Z8m Elliptical Owner’s Guide
Diagnostic LEDs
TEST MODE
116

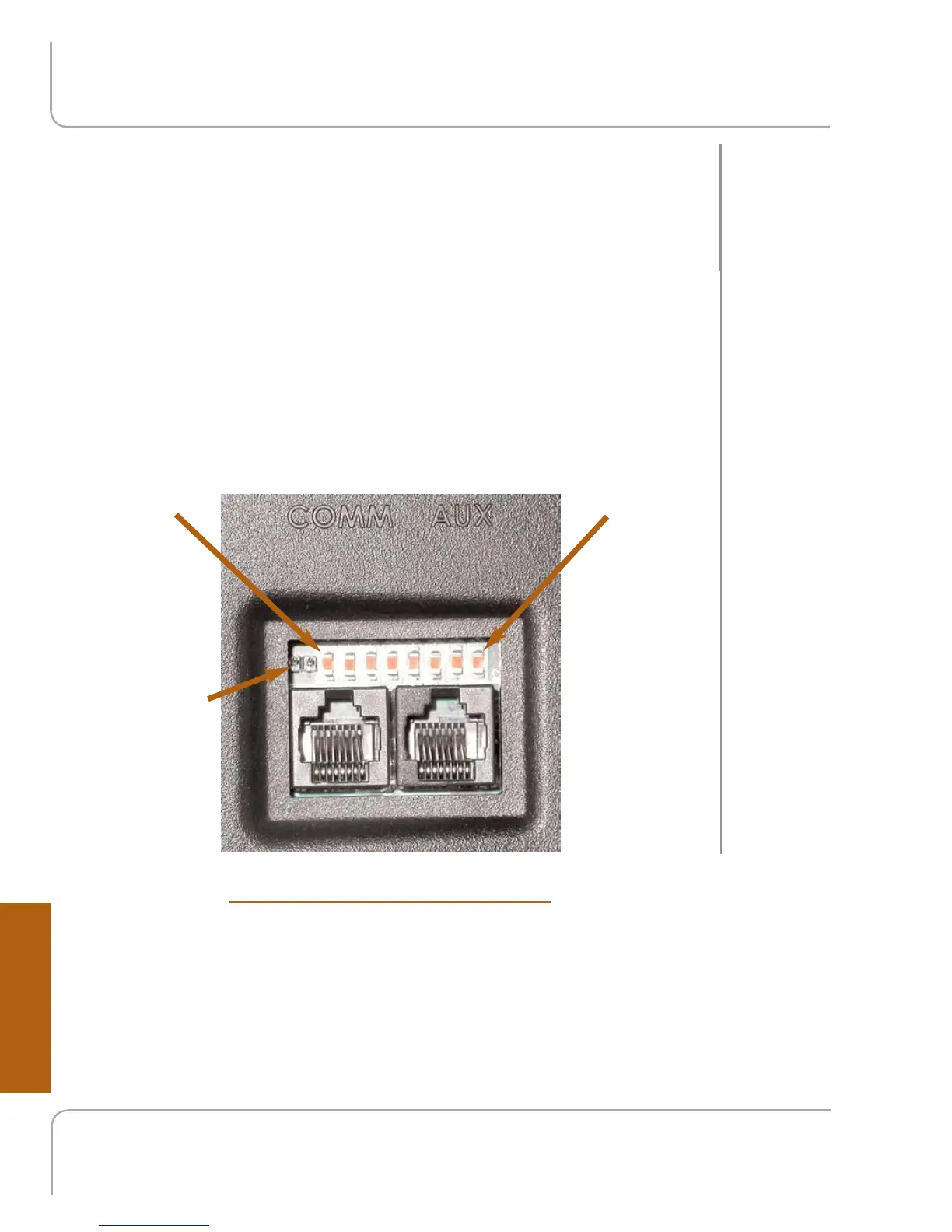

Diagnostic LEDs on back of console just above CSAFE ports:
LED 1 - 4: used to indicate errors if main display is not lit.
LED 5: +5V from lower control board (LCB) for digital logic.
Only lit if receiving power from LCD, not supercap power.
LED 6: +10V from LCB for motherboard main operation.
LED 7: +10V from LCD for LCD backlight.
LED 8: lit when programming jumper is installed.
TEST MODE
DIAGNOSTIC
LEDS
Programming
Jumper
LED 1
LED 8
