Safety instructions
– The heater or control panel must not be used unless it is in
perfect working order.
– Repairs must be carried out immediately. Only carry out
repairs yourself if the solution is described in the trouble-
shooting guide of this operating instructions.
– Do not make repairs or modifications to the heater or the
control panel!
– A defective heater or defective control panel may only be
repaired by the manufacturer or his service department.

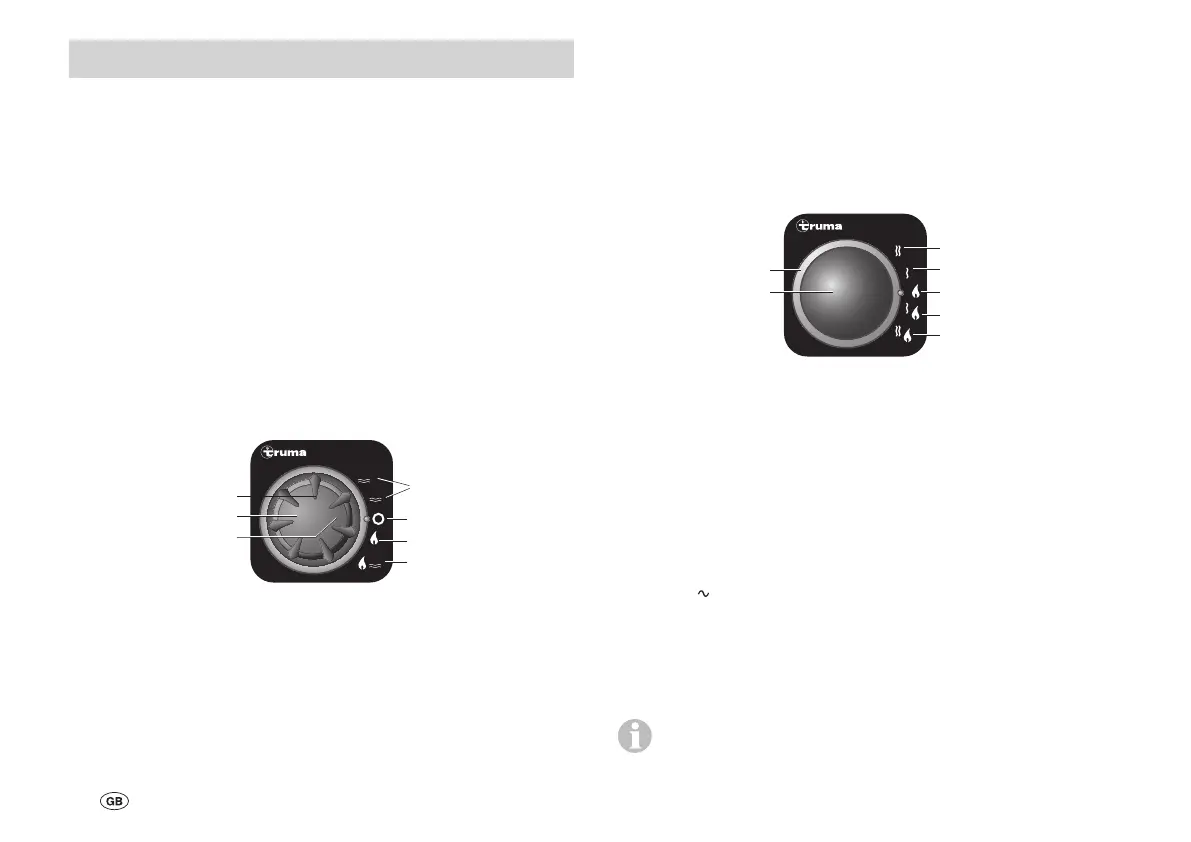

Display and control elements
CP classiccontrol panel
1
3
5
7
9
40
°
60
°
60
°
Combi
1
2
3
4
5
c
d
f
b
a
g, h
e
a = Control knob for room temperature (1 – 5)
b = Green LED lit, “On”
c = Hot water mode
(Water temperature 40 °C or 60 °C)
d = Heating mode
(heating without water temperature monitoring or with
drained water system)
e = Heating mode
(heating with water temperature monitoring)
Operating instructions
f = Rotary switch “Off”
g = Yellow LED lit, “Boiler heat-up phase”,
yellow LED flashing “Warning”
r = Red LED lit, red LED flashing “Fault”
CP E classic power selector switch
(Combi Diesel E only)
Combi E
230
V~
m
l
n
o
j
k
i
i = Power selection rotary switch
j = Electric mode 230 V, 1800 W
k = Electric mode 230 V, 900 W
l = Diesel mode
m = Mixed mode* (diesel or electric mode 900 W)
m = Mixed mode* (diesel and electric mode 1800 W)
o = Yellow LED lit “Electric mode”
* Hot water mode
In hot water mode, the heater automatically selects electric
mode with the preset electric power of 900 W or 1800 W. If
the 230 V power supply is disconnected or fails, the heat-
er automatically switches over to diesel mode.
Heating mode:
Electric mode has priority in heating mode. If the electrical
heating output is insufficient, diesel mode is enabled.
Switching on the electric heating elements as well
does not increase the maximum heating power.
