Truma CP plus Operating And Installation Instructions

3
hot
eco
2
1
3
8
4
5
6
7
9

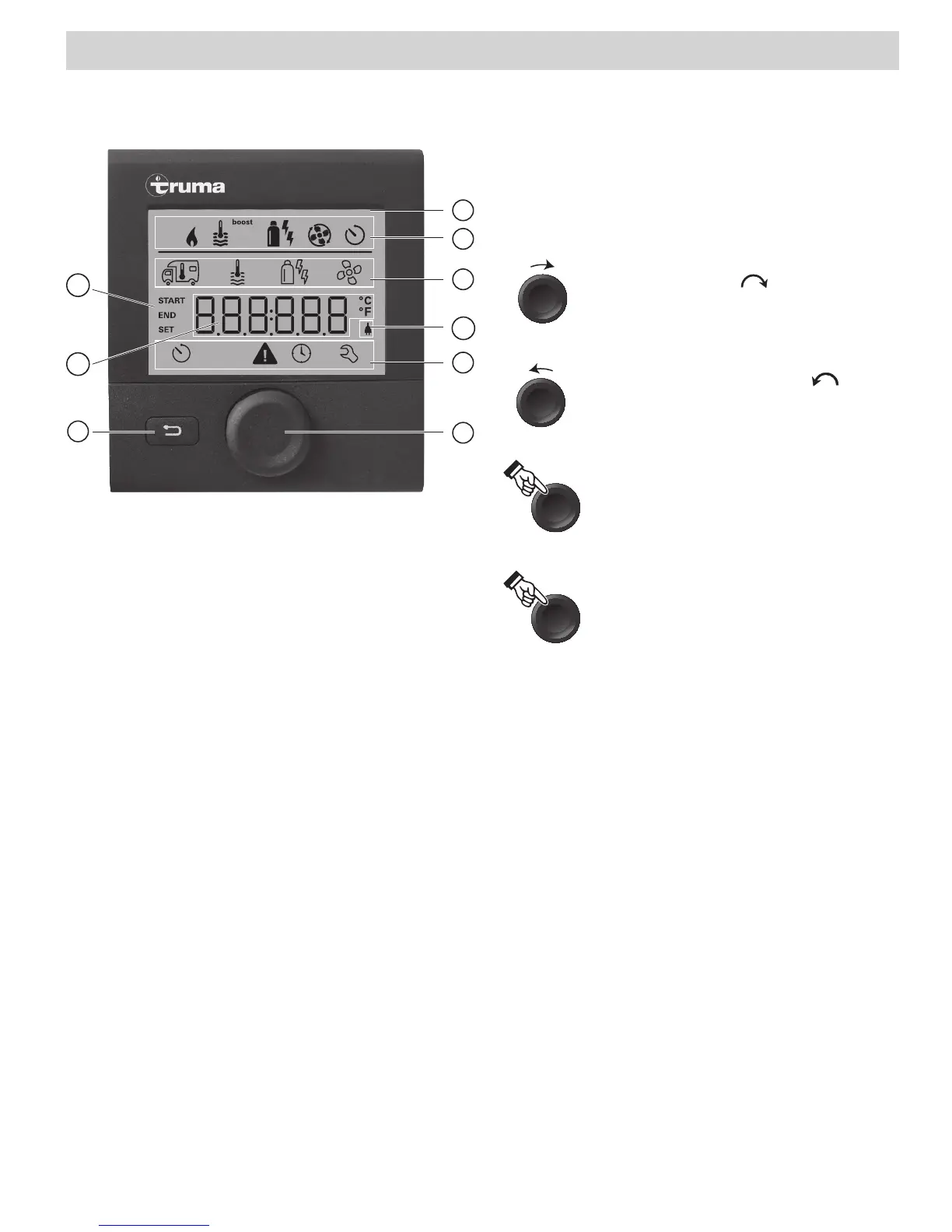

Fig. 1
Operating Instructions
Display and Operating Elements Rotary push button
The rotary push button(8) is used to select and
change setpoints and parameters; it is then
tapped to save the values. Selected menu items
flash.
+
-
Turn clockwise
• The menu is scrolled through
from left to right
• Increase values (+)
Turn counterclockwise
• The menu is scrolled through
from right to left
• Reduce values (-)
Ta p
• Save a selected value
• Select a menu item, go to the
setting level
3 sec
Press (3seconds)
• Main switching function – con-
trol panel on/off
Back button
Press the Back button(9) to go back to a previ-
ous menu and cancel settings. This means that
the previous values remain unchanged.
Instructions for use
• If there is an interruption to the power sup-
ply, the clock has to be reset.
• If a new furnace is connected to the bus sys-
tem of the control panel, repeat the proce-
dure described in “Initial start-up”.
1 Display
2 Status line
3 Menu line (top)
4 Menu line (bottom)
5 Power supply display
120VAC (mains supply)
6 Time switch display
7 Settings/Values
8 Rotary push button
9 Back button
Description
• A rotary push button (8) is used to select
menu items in the menu lines (3 + 4) and to
adjust settings.
• Information is shown on a backlit display(1).
• The Back button(9) is used to go back to a
previous menu.

Truma CP plus Specifications

General

Display	LCD
Power supply	12 V DC
Quiescent current consumption (at 12 V)	Approx. 5 mA
Temperature range	-15 °C to +60 °C
Protection class	IP20
Compatibility	Truma Combi heaters
